SSR-90DV 90A solid state voltage regulator 90DV SSR special for SCR voltage regulator

Product features
Mouse over to zoom in

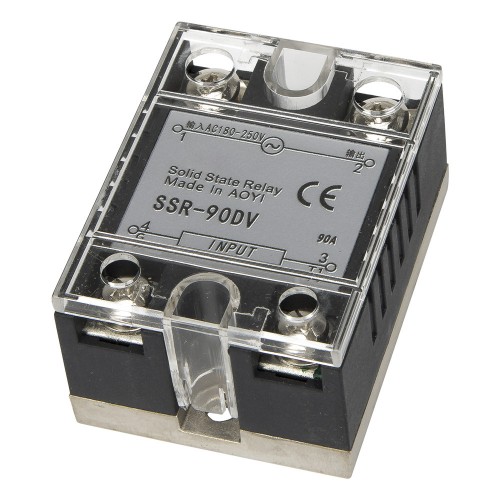

SSR-90DV 90A solid state voltage regulator 90DV SSR special for SCR voltage regulator
Price: US $14.34 / piece
Model number: SSR-90DV
Product name: Solid state relay
Deliver to:
Shipping:
US $7.85via
Estimated Delivery Time: 9-17 days
DDP service: all applicable import duties and taxes are included in total order value.
Quantity:
Total price:US $22.19
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number and parameters
Model numberLoad currentLoad voltageOnline store:
SSR-10DV10A175-250VACUS $5.36/ pieceOrder
SSR-25DV25A175-250VACUS $6.93/ pieceOrder
SSR-40DV40A175-250VACUS $8.73/ pieceOrder
SSR-60DV60A175-250VACUS $12.10/ pieceOrder
SSR-75DV75A175-250VACUS $13.22/ pieceOrder
SSR-90DV90A175-250VACVisiting...
▇ Suitable maximum load power
Load current (A) 10 25 40 60 75 90
220V resistive load power (KW) 1.1 2.8 4.4 6.6 8.3 9.9
220V inductive load power (KW) 0.4 0.8 1.3 1.9 2.4 2.9
▇ General
Model number SSR-DV series
Rated input control current Voltage regulator (DC3-25mA)
Control type SCR Voltage regulator
Input-ON indication LED
On-state leakage current 4mA max
On-state voltage drop at Imax 1.5Vac
Matched heat sink ≤40A: FHSI01-50, ≤60A: FHSI02-50, ≤120A: FHSI03-100
Matched thermal grease HZ-KS101
Dielectric strength 2000VAC 50/60Hz for 1 minute
Insulation resistance 500 MΩ min at 500 VDC
External dimensions 62x45x23.5mm
Terminals Screw
Operational temperature -20 to 70℃
Operational humidity 95% max no condensation
Alias name SSR-DA series single phase solid state relay for voltage regulator
Advantage
1. Special general circuit design for large current, high quality circuit board.
2. Use copper terminals for big current, increase the safety of connection and use.
3. Use pure aluminium base plate, with better performance and long life.
4. Hign-end flame-retardant PV plastic, thermostability can up to 70-80 degrees.
Note 1. Model selection method: calculate the load current, according to load type, multiply the balance factor.
Resistive load: balance factor is 2 times, such as incandescent lamp, resistance wire, oven, heating rod.
Inductive load: balance factor is 7 times, such as: transformer, coil, fan motor, pump motor.
Example: 220V 3KW resistive load. 3KW/220V*2=27.3, select 40A specification.

2. To use product long and safely, please install the product with corresponding heat sink and fan.
Packaging Details
Product quantity: 1pc
Package weight: 0.15kg
Package size: 10 x 10 x 7 cm
