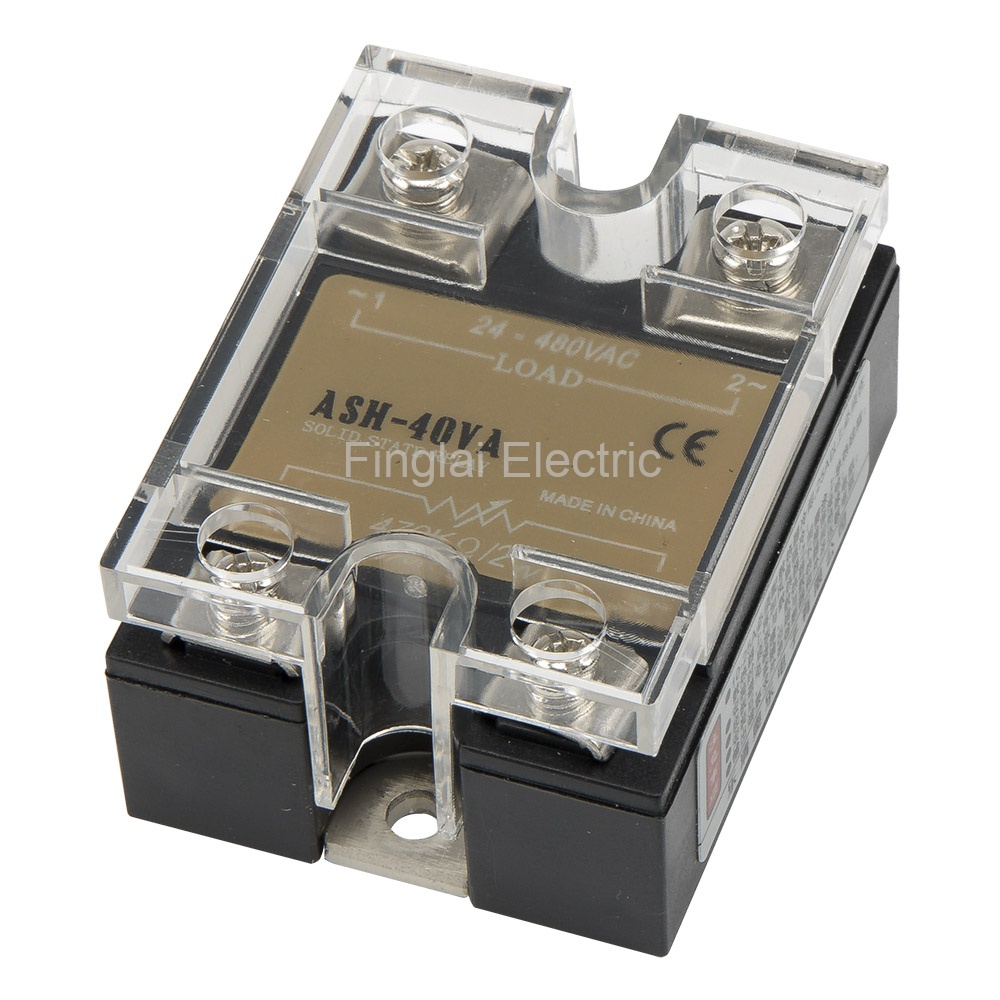

1. Features: Solid state relay is a non-contact on-off electronic switch, is four-terminal active device, two terminals are input control terminal, the other ends are output control terminal, it has optical isolation in the middle of them. Add DC or pulse signal to the input terminal, the output terminal's state can be changed from off to on (If it is no signal, it is off state), so as to control bigger load.
2. Typical applications: This product can be widely used in electric heating thermostat equipment, remote control systems, industrial automation and control equipment, lights, stage lighting control equipment, instrument, medical equipment, etc. It has more superiority in some occasion of requiring shock-proof, corrosion-resistant, moisture-proof, explosion-proof.
3. Parameter Description: 1). Inrush current (grid one week) 700% output on-state voltage drop 1.5V. 2). Static voltage rise rate dvs/dt 100v/us operation temperature range -40 to 80 ℃. 3). Commutation voltage rise rate dvs/dt 100v/us zero-crossing SSR start delay 10ms maximum. 4). Leakage current (no RC absorbing circuit) is less than 1mA, SSR shut delay 10ms maximum. 5). Zero-crossing SSR zero-area 15V power frequency 50/60HZ.
Note
1. Model selection method: calculate the load current, according to load type, multiply the balance factor. Resistive load: balance factor is 2 times, such as incandescent lamp, resistance wire, oven, heating rod. Inductive load: balance factor is 7 times, such as: transformer, coil, fan motor, pump motor. Example: 220V 3KW resistive load. 3KW/220V*2=27.3, select 40A specification.
2. To use product long and safely, please install the product with corresponding heat sink and fan.
ASH-VA series single phase resistance to AC solid state voltage regulator drawing
ASH-VA series single phase resistance to AC solid state voltage regulator structure figure
