ASH-C-40VA single phase resistance to AC 40A 24-480VAC solid state voltage regulator 40VA SSR

Product features
Mouse over to zoom in

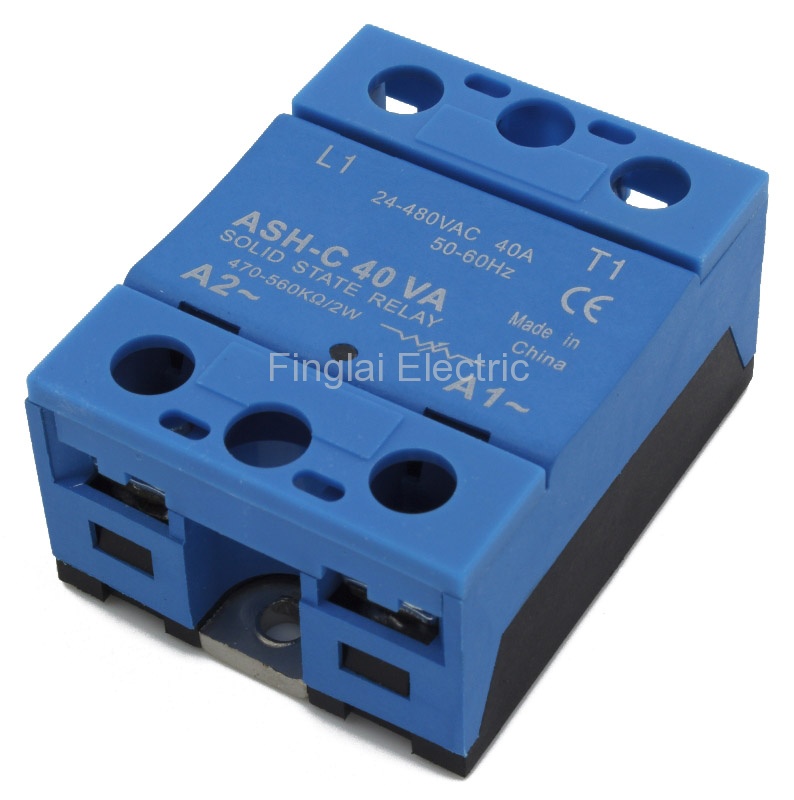

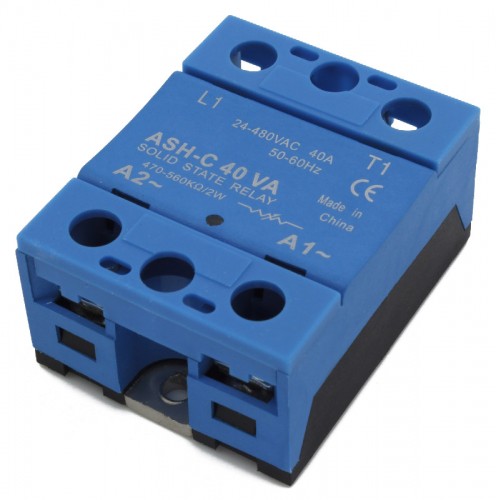

ASH-C-40VA single phase resistance to AC 40A 24-480VAC solid state voltage regulator 40VA SSR
Price: US $4.75 / piece
Model number: ASH-C-40VA
Product name: Solid state relay
Deliver to:
Shipping:
US $6.86via
Estimated Delivery Time: 9-15 days
Quantity:
Total price:US $11.61
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberLoad currentLoad voltageOnline store:
ASH-C-10VA10A24-480VacUS $4.19/ pieceOrder
ASH-C-25VA25A24-480VacUS $4.46/ pieceOrder
ASH-C-40VA40A24-480VacVisiting...
ASH-C-60VA60A24-480VacUS $6.66/ pieceOrder
ASH-C-80VA80A24-480VacUS $7.38/ pieceOrder
ASH-C-100VA100A24-480VacUS $10.95/ pieceOrder
ASH-C-120VA120A24-480VacUS $11.51/ pieceOrder
▇ Suitable maximum load power
Load current (A) 10 25 40 60 80 100 120
220V resistive load power (KW) 1.1 2.8 4.4 6.6 8.8 11 13.2
220V inductive load power (KW) 0.4 0.8 1.3 1.9 2.6 3.2 3.8
▇ General
Model number ASH-C-VA series
Rated input control voltage Variable resistor
Input resistance 470KΩ
Wattage of VR 2W
Control type Phase control
Input-ON indication LED
On-state leakage current 2mA max
On-state voltage drop at Imax 1.5Vac
Matched heat sink ≤40A: FHSI01-50, ≤60A: FHSI02-50, ≤120A: FHSI03-100
Matched thermal grease HZ-KS101
Dielectric strength 2500VAC 50/60Hz for 1 minute
Insulation resistance 500 MΩ min at 500 VDC
External dimensions 58x44.8x29mm
Terminals Screw
Operational temperature -30 to 75℃
Operational humidity 95% max no condensation
Alias name ASH-C-VA series single phase voltage adjustable SSR
Advantage
1. Special general circuit design for large current, high quality circuit board.

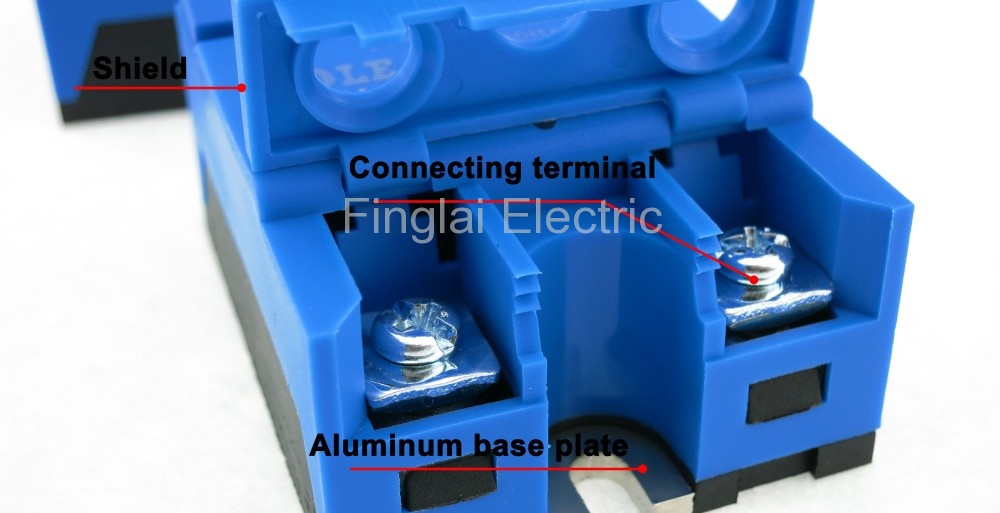

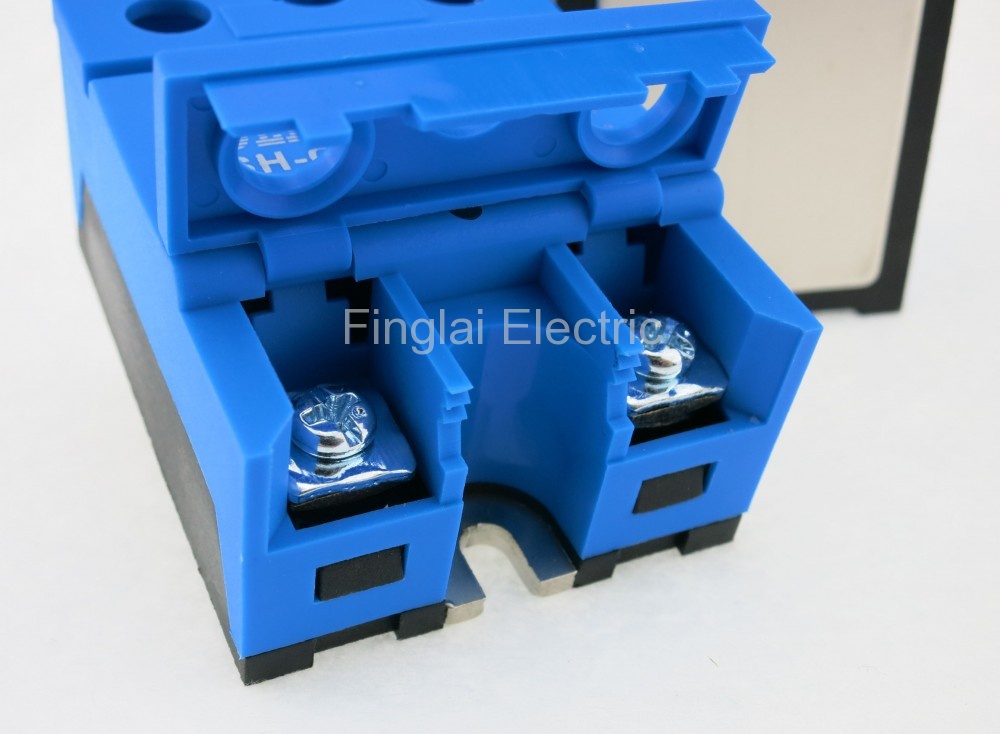

2. Increased connection and use safety by the shield of two ends.

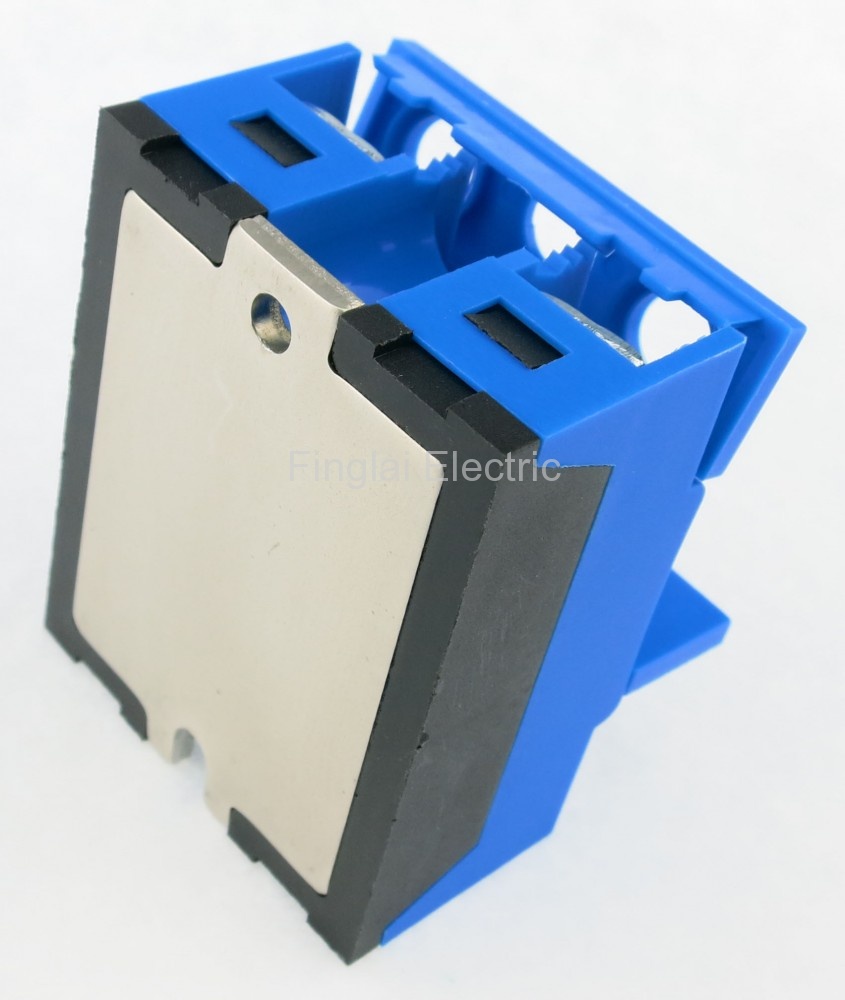

3. Thick nickel-plated aluminum base plate assure the better heat sinking performance and long life.
4. Enhanced flame-retardant nylon plastic, thermostability can up to 150-200 degrees.
Note 1. Model selection method: calculate the load current, according to load type, multiply the balance factor.
Resistive load: balance factor is 2 times, such as incandescent lamp, resistance wire, oven, heating rod.
Inductive load: balance factor is 7 times, such as: transformer, coil, fan motor, pump motor.
Example: 220V 3KW resistive load. 3KW/220V*2=27.3, select 40A specification.

2. To use product long and safely, please install the product with corresponding heat sink and fan.

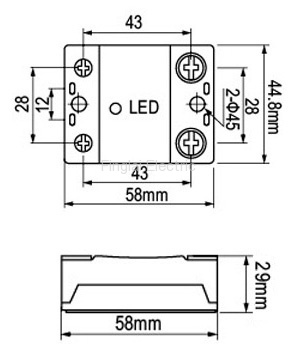

ASH-C series solid state relay drawing
Packaging Details
Product quantity: 1pc
Package weight: 0.15kg
Package size: 10 x 10 x 7 cm
