ASH-C-40AA single phase AC to AC 40A 480VAC solid state relay

Product features
Mouse over to zoom in

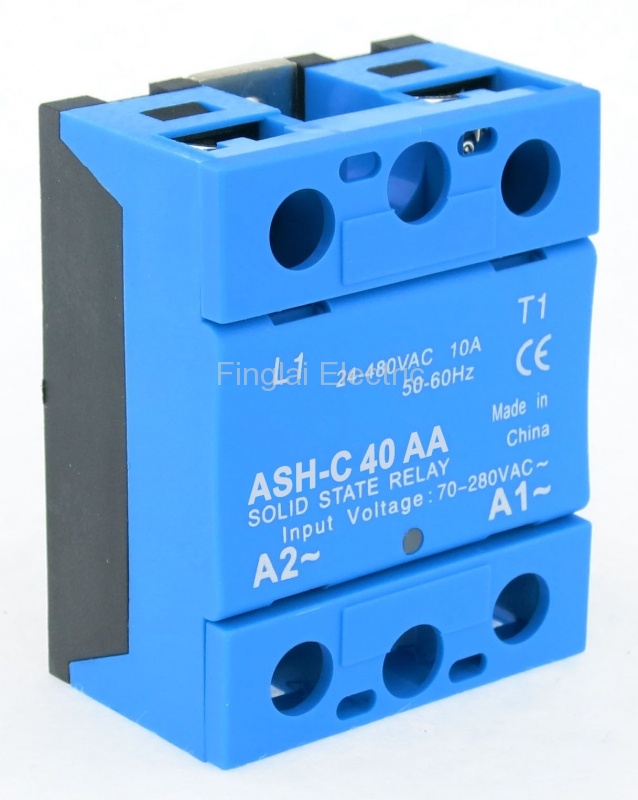

ASH-C-40AA single phase AC to AC 40A 480VAC solid state relay
Price: US $4.75 / piece
Model number: ASH-C-40AA
Product name: Solid state relay
Deliver to:
Shipping:
US $8.69via
Estimated Delivery Time: 9-17 days
DDP service: all applicable import duties and taxes are included in total order value.
Quantity:
Total price:US $13.44
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number and parameters
Model numberLoad currentLoad voltageOnline store:
ASH-C-10AA10A24-480VacUS $4.19/ pieceOrder
ASH-C-25AA25A24-480VacUS $4.46/ pieceOrder
ASH-C-40AA40A24-480VacVisiting...
ASH-C-60AA60A24-480VacUS $6.66/ pieceOrder
ASH-C-80AA80A24-480VacUS $7.38/ pieceOrder
ASH-C-100AA100A24-480VacUS $10.95/ pieceOrder
ASH-C-120AA120A24-480VacUS $11.51/ pieceOrder
▇ Suitable maximum load power
Load current (A) 10 25 40 60 80 100 120
220V resistive load power (KW) 1.1 2.8 4.4 6.6 8.8 11 13.2
220V inductive load power (KW) 0.4 0.8 1.3 1.9 2.6 3.2 3.8
▇ General
Model number ASH-C-AA series
Rated input control voltage 50-280VAC 50/60Hz
Rated input control current 10mA
Control type Zero crossing detection
Input-ON indication LED
On-state leakage current 2mA max
On-state voltage drop at Imax 1.5Vac
Matched heat sink ≤40A: FHSI01-50, ≤60A: FHSI02-50, ≤120A: FHSI03-100
Matched thermal grease HZ-KS101
Dielectric strength 2500VAC 50/60Hz for 1 minute
Insulation resistance 500 MΩ min at 500 VDC
External dimensions 58x44.8x29mm
Terminals Screw
Operational temperature -30 to 75℃
Operational humidity 95% max no condensation
Alias name ASH-C-AA series single phase AC to AC solid state relay
Advantage
1. Special general circuit design for large current, high quality circuit board.
2. Increased connection and use safety by the shield of two ends.
3. Thick nickel-plated aluminum base plate assure the better heat sinking performance and long life.
4. Enhanced flame-retardant nylon plastic, thermostability can up to 150-200 degrees.
Note 1. Model selection method: calculate the load current, according to load type, multiply the balance factor.
Resistive load: balance factor is 2 times, such as incandescent lamp, resistance wire, oven, heating rod.
Inductive load: balance factor is 7 times, such as: transformer, coil, fan motor, pump motor.
Example: 220V 3KW resistive load. 3KW/220V*2=27.3, select 40A specification.

2. To use product long and safely, please install the product with corresponding heat sink and fan.
ASH-C series solid state relay drawing
Packaging Details
Product quantity: 1pc
Package weight: 0.15kg
Package size: 10 x 10 x 7 cm
