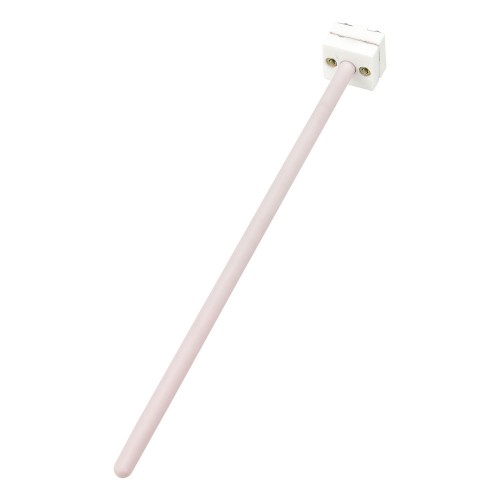

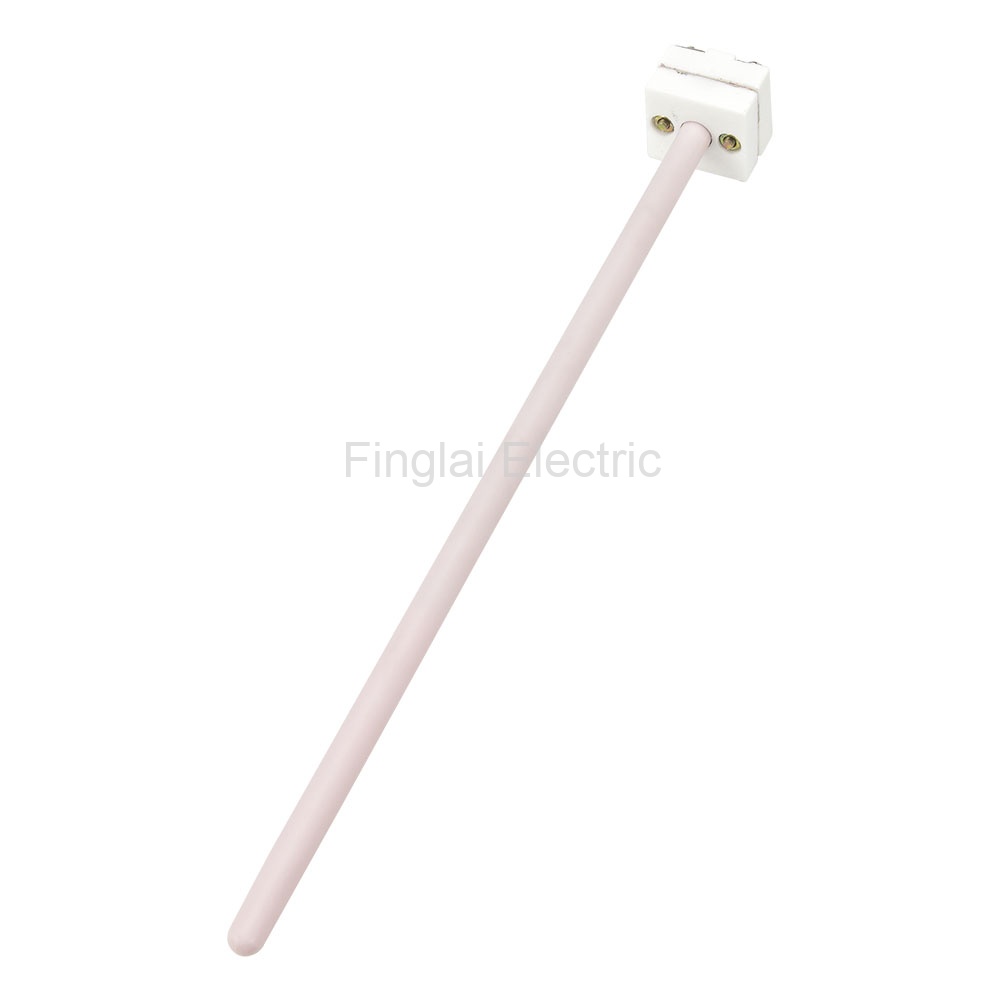

WRP-100 250mm probe 0.2mm wire diameter R type platinum and rhodium thermocouple temperature sensor
Product features
Mouse over to zoom in
WRP-100 250mm probe 0.2mm wire diameter R type platinum and rhodium thermocouple temperature sensor
Price: US $68.67 / piece
Model number: WRP-100-R-D0.2L250
Product name: R thermocouple
Probe length:
80mm100mm120mm150mmUS $47.85200mm
US $50.45225mm250mm
US $68.67300mm
US $73.88400mm450mm550mm650mm700mm1000mm
Deliver to:
Shipping:
US $17.36via
Estimated Delivery Time: 9-17 days
DDP service: all applicable import duties and taxes are included in total order value.
Total price:US $86.03
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Online store: |
| WRP-100 | S | 0-1600 ℃ | US $12.70 - 136.36/ pieceOrder (21) |
| WRP-100-B | B | 0-1700 ℃ | US $145.47 - 347.22/ pieceOrder (3) |
| WRP-100-R | R | 0-1600 ℃ | Visiting... |
▇ WRP-100-R R thermocouple model number legend
WRP-100-R
Parent Model Number
▇ General
| Model number | WRP-100 |
| Mounting form | Probe |
| Accuracy | 0.25%t |
| Sensor wire diameter | 0.08-0.5mm, can be customized. Current: 0.2mm |
| Probe material | Corundum |
| Probe diameter | Φ7-8mm |
| Probe length | 80, 225, 300, 400, 450, 550, 650, 700, 1000mm, can be customized. Current: 250mm |
| Thermal response time | <150s |
| Insulating resistance | 5MΩ at 20 ℃ |
| Purpose | Used to muffle furnace experimental furnace specially |
▇ WRP-100-R R thermocouple submodels
| No | Model Number | Sensor Wire Diameter | Probe Length | MOQ | Unit Price | Related Product |
| 1 | WRP-100-R-D0.2L150 | 0.2mm | 150mm | 1 | US $47.85 | Order |
| 2 | WRP-100-R-D0.2L200 | 0.2mm | 200mm | 1 | US $50.45 | Order |
| 3 | WRP-100-R-D0.2L250 | 0.2mm | 250mm | 1 | US $68.67 | Visiting... |
| 4 | WRP-100-R-D0.2L300 | 0.2mm | 300mm | 1 | US $73.88 | Order |
| 5 | WRP-100-R-D0.3L150 | 0.3mm | 150mm | 1 | US $76.48 | Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.3kg
Package size: 32 x 12 x 11 cm
