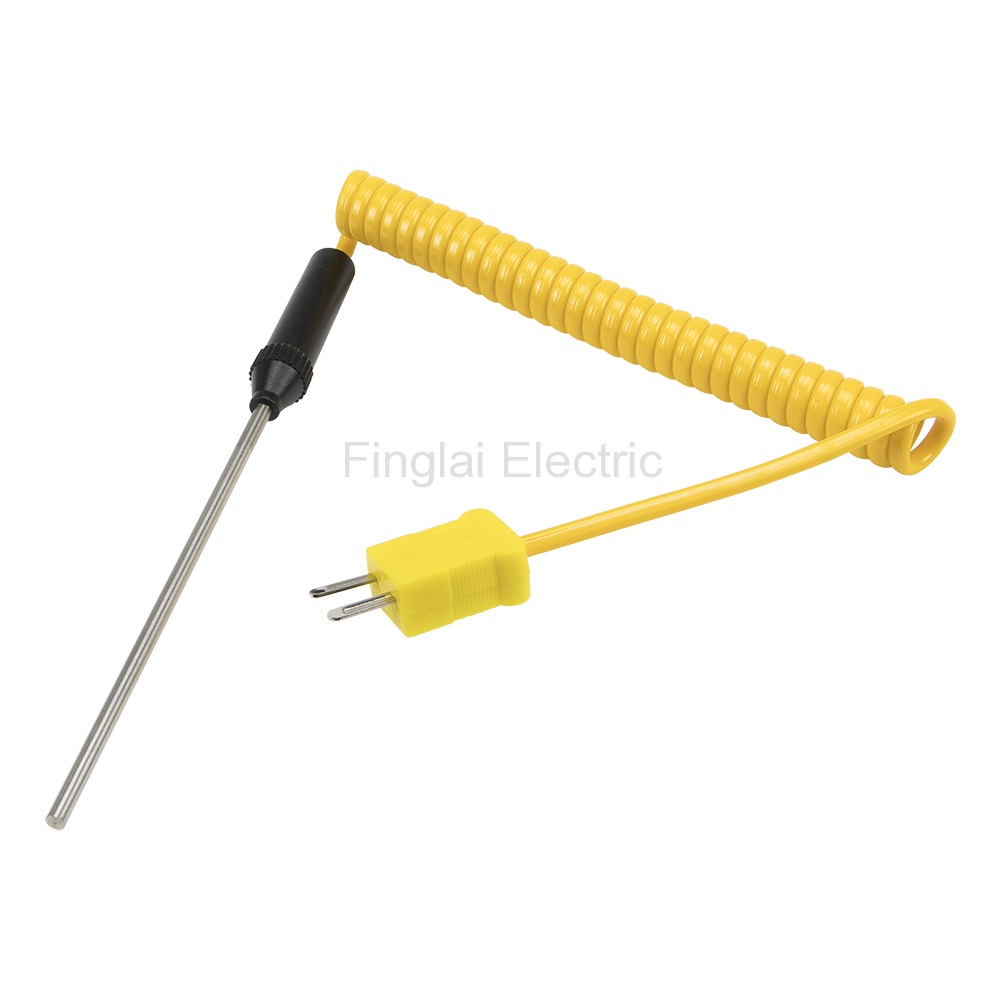

TP-02 series K type probe head plug connection thermocouple temperature sensors for TM-900C TES1310/1320

Main child models
Mouse over to zoom in
Price: US $1.68 / piece
Model number: TP-02-D3S100
Product name: Temperature sensor
Probe diameter:
3mm
Probe length:
100mm150mm200mm300mm500mm
View details
Product description
▇ Model number and parameters
Model numberTypeMeasuring rangeOnline store:
TP-02K0-600 ℃Visiting...
▇ TP-02 temperature sensor model number legend
TP-02
Parent Model Number
Probe diameter
-D3: 3mm
Probe length
S100: 100mm
S150: 150mm
S200: 200mm
S300: 300mm
S500: 500mm
▇ General
Model number TP-02 series
Mounting form Probe
Accuracy ±0.75%t
Probe diameter Φ3mm
Probe length 100, 150, 200, 300mm
Cable material Plastic
Cable length 1m
Matched instrument TM-902C thermometer
Thermal response time <5s
▇ TP-02 temperature sensor child models
No Model Number Probe Diameter Probe Length MOQ Unit Price
1 TP-02-D3S100 3mm 100mm 1 US $1.68
2 TP-02-D3S150 3mm 150mm 1 US $2.07
3 TP-02-D3S200 3mm 200mm 1 US $2.29
4 TP-02-D3S300 3mm 300mm 1 US $3.23
5 TP-02-D3S500 3mm 500mm 1 US $4.35
