Products >> Instruments >> Temperature sensors >> FTARS01 >> FTARS01-K >> FTARS01-K-M12P1.5L70M2

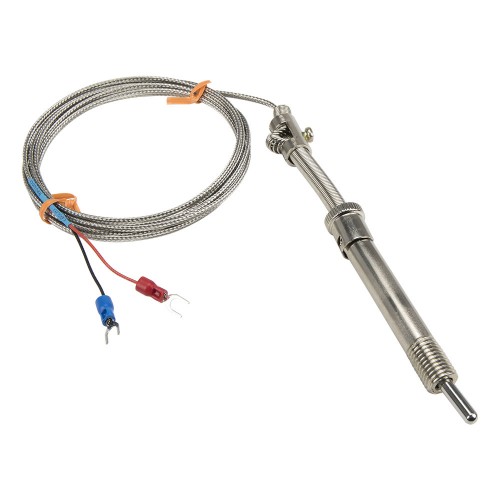

FTARS01 K type bayonet M12 compression spring 70mm sleeve length 2m metal screening cabel thermocouple temperature sensor

Product features
Mouse over to zoom in
FTARS01 K type bayonet M12 compression spring 70mm sleeve length 2m metal screening cabel thermocouple
Price: US $1.92 / piece
Model number: FTARS01-K-M12P1.5L70M2
Product name: Thermocouple
Thread size:
Threaded sleeve length:
US $1.09
US $1.92
Cabel material:
Metal screening
US $1.92
Fibreglass braided
Cable length:
US $1.92
US $2.28
US $2.99
Deliver to:
US $5.95via
Estimated Delivery Time: 12-24 days

Total price:US $7.87
Buy Now
Add to Cart
Product description
Model number and parameters
Model numberSame modelTypeMeasuring rangeOnline store:
FTARS01-KWRNTK0-600 ℃Visiting...
FTARS01-EWRETE0-400 ℃US $0.9 - 2.62/ pieceOrder (12)
FTARS01-JJ0-400 ℃US $1.73 - 2.91/ pieceOrder (5)
FTARS01-PT100WZPTPT100-50-200 ℃US $4.1 - 6.04/ pieceOrder (6)
FTARS01-K thermocouple model number legend

Parent Model Number

Thread size

-M12P1.5: M12*1.5

Threaded sleeve length

L32: 32mm

L70: 70mm

Cabel material

M: Metal screening

F: Fibreglass braided

Cable length

1: 1m

1.5: 1.5m

2: 2m

3: 3m

4: 4m

5: 5m
Model number FTARS01 series
Mounting form Press spring
Accuracy K, E, J: ±0.75%t; PT100 A grade: ±(0.15℃+0.2%|t|); PT100 B grade: ±(0.3℃+0.5%|t|)
Work type Grounded
Thread size M12x1.5, M10x1.5, M8x1.25
Current: M12*1.5
Threaded sleeve length 32mm, 70mm, default is 32mm, if 70mm, need to be customzied
Current: 70mm
Probe diameter 5mm
Probe length 30mm
Cable material K, E: metal screening, fibreglass braided; PT100, J: metal screening
Cable length Standard is 2m, customer can select 1, 3 ,5 ,10m or specify the cable length
Current: 2m
Matched accessory 11.5mm ID bayonet cap adapter (included)
Thermal response time Thermocouple: <5s; RTD: <12s
Insulating resistance 5MΩ min at 20℃, RH<80%
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
FTARS01-K thermocouple child models
No Model Number Thread Size Threaded Sleeve Length Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARS01-K-M12P1.5L32M1 M12*1.5 32mm Metal screening 1m 1 US $0.95 Order
2 FTARS01-K-M12P1.5L32M2 M12*1.5 32mm Metal screening 2m 1 US $1.09 Order
3 FTARS01-K-M12P1.5L32M3 M12*1.5 32mm Metal screening 3m 1 US $1.97 Order
4 FTARS01-K-M12P1.5L32M4 M12*1.5 32mm Metal screening 4m 1 US $2.15 Order
5 FTARS01-K-M12P1.5L32M5 M12*1.5 32mm Metal screening 5m 1 US $2.23 Order Unfold
6 FTARS01-K-M12P1.5L32F1 M12*1.5 32mm Fibreglass braided 1m 1 US $0.94 Order
7 FTARS01-K-M12P1.5L32F1.5 M12*1.5 32mm Fibreglass braided 1.5m 1 US $0.9 Order
8 FTARS01-K-M12P1.5L32F2 M12*1.5 32mm Fibreglass braided 2m 1 US $0.94 Order
9 FTARS01-K-M12P1.5L32F3 M12*1.5 32mm Fibreglass braided 3m 1 US $1.59 Order
10 FTARS01-K-M12P1.5L32F4 M12*1.5 32mm Fibreglass braided 4m 1 US $1.81 Order
11 FTARS01-K-M12P1.5L32F5 M12*1.5 32mm Fibreglass braided 5m 1 US $1.84 Order
12 FTARS01-K-M12P1.5L70M2 M12*1.5 70mm Metal screening 2m 1 US $1.92 Visiting...
13 FTARS01-K-M12P1.5L70M3 M12*1.5 70mm Metal screening 3m 1 US $2.28 Order
14 FTARS01-K-M12P1.5L70M5 M12*1.5 70mm Metal screening 5m 1 US $2.99 Order
Packaging Details
Package weight: 0.09kg
Package size: 10 x 10 x 5 cm
Product quantity: 1pcs
