Products >> Instruments >> Temperature sensors >> FTARR02 >> FTARR02-PT100 >> FTARR02-PT100-D6S10
<
◄ FTARR02-PT100-D6S2 PT100 cold pressing nose RTD temperature sensor

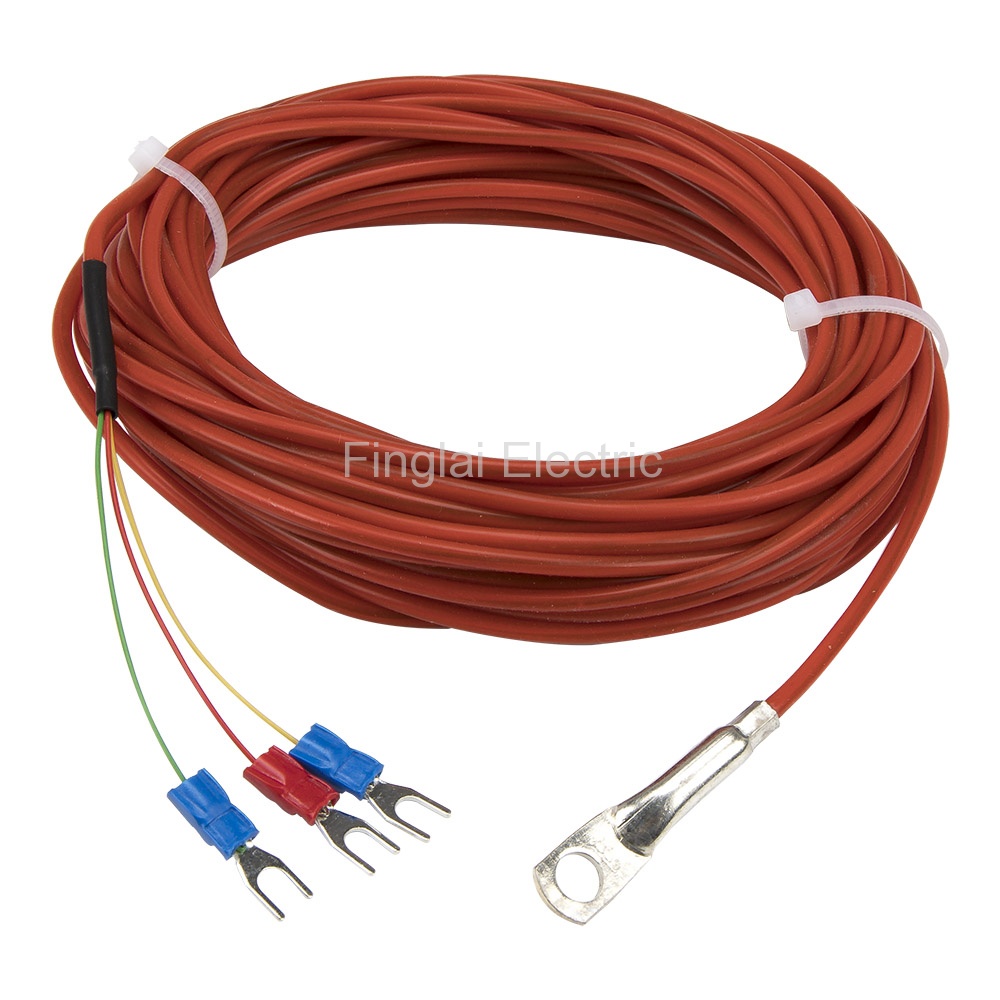

FTARR02 PT100 type 6mm inner diameter cold pressing nose 10m metal screening cable RTD temperature sensor

Product features
Mouse over to zoom in
FTARR02 PT100 type 6mm inner diameter cold pressing nose 10m metal screening cable RTD temperature sensor
Price: US $11.49 / piece
Model number: FTARR02-PT100-D6S10
Product name: Temperature sensor
Hole diameter:
Φ4Φ5
US $11.49Φ6
US $11.49
Cabel material:
Metal screeningSilica gel
US $11.49
Cable length:
1m2m
US $6.363m4m5m10m
US $11.49
Deliver to:
Shipping:
US $7.89via
Estimated Delivery Time: 9-15 days
Quantity:
Total price:US $19.38
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberSame modelTypeMeasuring rangeOnline store:
FTARR02-KK0-600 ℃US $2.34 - 4.81/ pieceOrder (7)
FTARR02-EE0-400 ℃US $2.34 - 4.81/ pieceOrder (7)
FTARR02-JJ0-400 ℃US $3.16 - 4.79/ pieceOrder (4)
FTARR02-PT100WZPT-020PT100Metal cable: -50-450℃; Silica gel cable: -50-180℃Visiting...
▇ FTARR02-PT100 temperature sensor model number legend
FTARR02-PT100
Parent Model Number
-D6
Hole diameter
-D4: Φ4
-D5: Φ5
-D6: Φ6
S
Cabel material
M: Metal screening
S: Silica gel
10
Cable length
1: 1m
2: 2m
3: 3m
4: 4m
5: 5m
10: 10m
▇ General
Model number FTARR02 series
Mounting form Ring
Accuracy K,E: ±0.4%t; PT100: ±(0.6℃+1%|t|), ±(0.3℃+0.5%|t|), ±(0.15℃+0.2%|t|)
Hole diameter Φ4, Φ5, Φ6
Current: Φ6
Cable material Metal screening
Cable length Standard is 2m, customer can select 1, 3 ,5 ,10m or specify the cable length
Current: 10m
Thermal response time Thermocouple: <5s; RTD: <12s
Insulating resistance 5MΩ min at 20℃, RH<80%
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
▇ FTARR02-PT100 temperature sensor child models
No Model Number Hole Diameter Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARR02-PT100-D5S2 Φ5 Silica gel 2m 1 US $6.36 Order
2 FTARR02-PT100-D5S10 Φ5 Silica gel 10m 1 US $11.49 Order
3 FTARR02-PT100-D6M1 Φ6 Metal screening 1m 1 US $4.58 Order
4 FTARR02-PT100-D6M2 Φ6 Metal screening 2m 1 US $5.26 Order
5 FTARR02-PT100-D6M3 Φ6 Metal screening 3m 1 US $5.71 Order Unfold
6 FTARR02-PT100-D6M4 Φ6 Metal screening 4m 1 US $6.38 Order
7 FTARR02-PT100-D6M5 Φ6 Metal screening 5m 1 US $7.05 Order
8 FTARR02-PT100-D6S2 Φ6 Silica gel 2m 1 US $6.36 Order
9 FTARR02-PT100-D6S10 Φ6 Silica gel 10m 1 US $11.49 Visiting...
Packaging Details
Product quantity: 1pc
Package weight: 0.28kg
Package size: 14.5 x 8.5 x 10.5 cm
