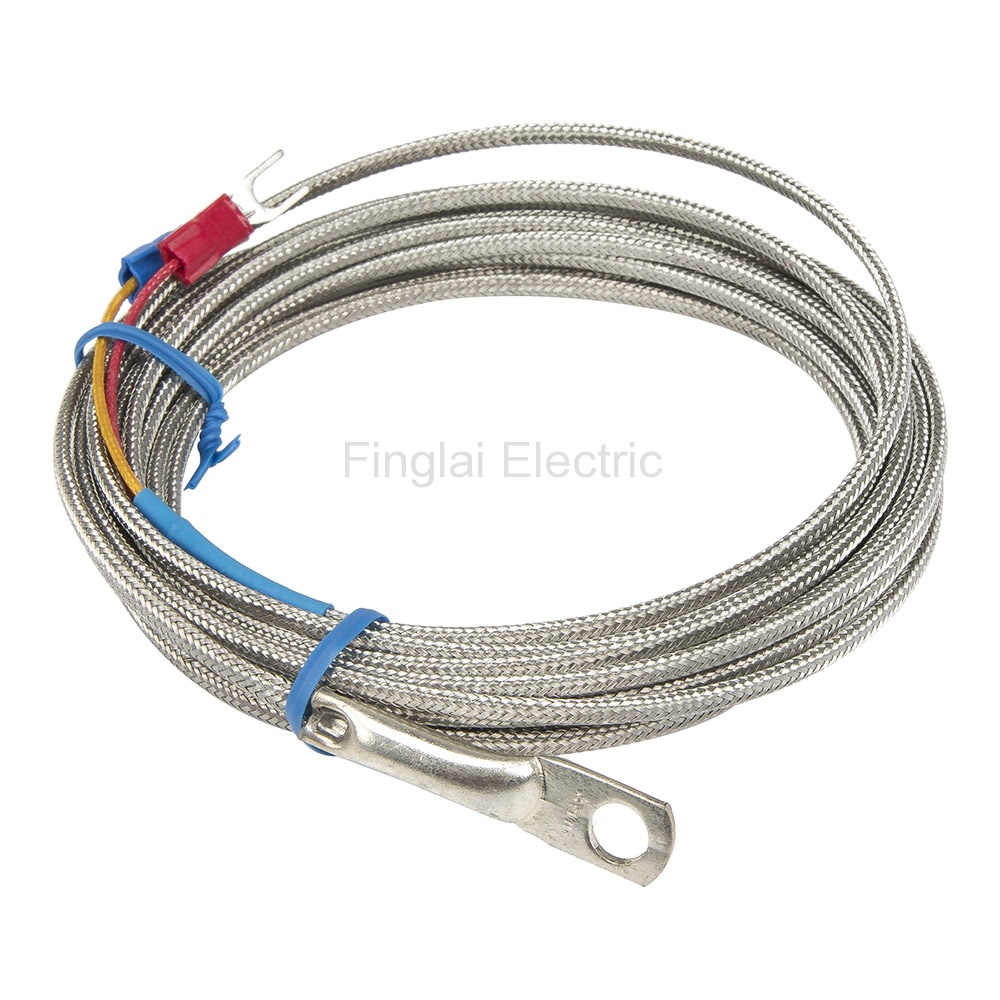

FTARR02 J type 6mm inner diameter cold pressing nose 4m metal screening cable thermocouple temperature sensor
Product features
Mouse over to zoom in
FTARR02 J type 6mm inner diameter cold pressing nose 4m metal screening cable thermocouple temperature sensor
Price: US $4.02 / piece
Model number: FTARR02-J-D6M4
Product name: Thermocouple
Deliver to:
Shipping:
US $5.95via
Estimated Delivery Time: 12-24 days
Total price:US $9.97
Buy Now
Add to Cart
Inquire
Payment:
PayPalWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Same model | Type | Measuring range | Online store: |
| FTARR02-K | K | 0-600 ℃ | US $2.34 - 4.81/ pieceOrder (7) | |
| FTARR02-E | E | 0-400 ℃ | US $2.34 - 4.81/ pieceOrder (7) | |
| FTARR02-J | J | 0-400 ℃ | Visiting... | |
| FTARR02-PT100 | WZPT-020 | PT100 | Metal cable: -50-450℃; Silica gel cable: -50-180℃ | US $4.58 - 11.49/ pieceOrder (9) |
▇ FTARR02-J thermocouple model number legend
FTARR02-J
Parent Model Number
-D6
Hole size
-D4: Φ4
-D5: Φ5
-D6: Φ6
M
Cabel material
M: Metal screening
4
Cable length
1: 1m
2: 2m
3: 3m
4: 4m
5: 5m
▇ General
| Model number | FTARR02 series |
| Mounting form | Ring |
| Accuracy | K,E: ±0.75%t; PT100: ±(0.6℃+1%|t|), ±(0.3℃+0.5%|t|), ±(0.15℃+0.2%|t|) |
| Hole diameter | Φ4, Φ5, Φ6 |
| Cable material | Metal screening |
| Cable length | Standard is 2m, customer can select 1, 3 ,5 ,10m or specify the cable length Current: 4m |
| Thermal response time | Thermocouple: <5s; RTD: <12s |
| Insulating resistance | 5MΩ min at 20℃, RH<80% |
| Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ FTARR02-J thermocouple child models
| No | Model Number | Hole Size | Cabel Material | Cable Length | MOQ | Unit Price | Related Product |
| 1 | FTARR02-J-D6M3 | Φ6 | Metal screening | 3m | 1 | US $4.02 | Order |
| 2 | FTARR02-J-D6M4 | Φ6 | Metal screening | 4m | 1 | US $4.02 | Visiting... |
Packaging Details
Product quantity: 1pc
Package weight: 0.09kg
Package size: 10 x 10 x 4 cm
