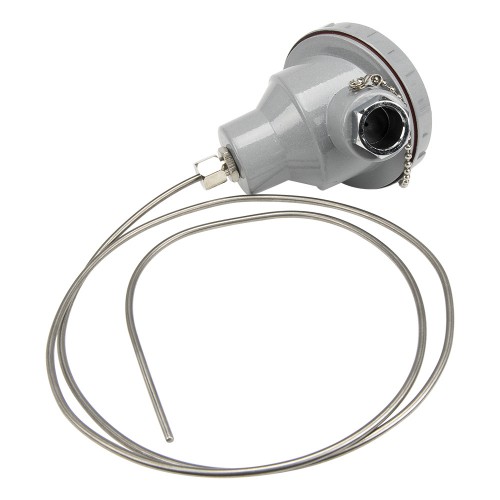

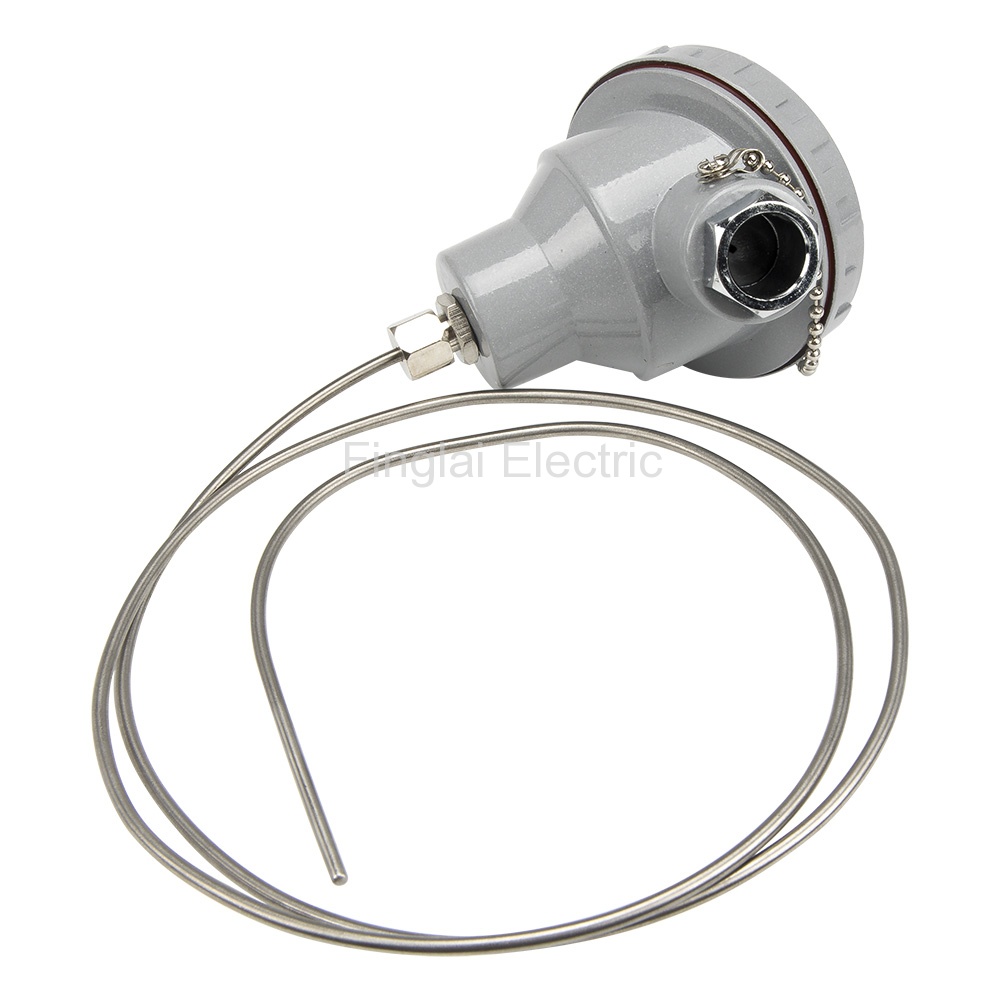

FTARP15 K type 3*1000mm 321 stainless steel flexible probe sheathed thermocouple temperature sensor

Product features
Mouse over to zoom in
FTARP15 K type 3*1000mm 321 stainless steel flexible probe sheathed thermocouple temperature sensor
Price: US $8.54 / piece
Model number: FTARP15-K-M321D3L1000
Product name: Thermocouple
Thread size:
No thread
US $8.54
316L NPT1/2"
Probe material:
321 stainless steel
US $8.54
Inconel 600
Deliver to:
Shipping:
US $30.46via
Estimated Delivery Time: 9-17 days
Quantity:



Total price:US $39
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberTypeMeasuring rangeOnline store:
FTARP15-KK321 stainless steel probe: 0-600 ℃
2520 stainless steel probe: 0-1100 ℃
Visiting...
FTARP15-EE0-400 ℃
FTARP15-JJ0-400 ℃
FTARP15-TT-200-350 ℃
FTARP15-PT100PT100-50-420 ℃US $7.73 - 38.76/ pieceOrder (9)
FTARP15-K thermocouple model number legend
General
Model number FTARP15 series
Mounting form Flexible probe (Can be straight or bent, sheathed solid tube); rigid probe (Only straight, hollow tube)
Accuracy K, E, J: ±0.4%|t|; PT100 A grade: ±(0.15℃+0.2%|t|); PT100 B grade: ±(0.3℃+0.5%|t|)
Thread size Can add PT1/8", PT1/4", PT3/8", PT1/2", PT3/4", PT1", M6*1, M8*1.25, M8*1.5, M10*1, M10*1.5, M12*1, M12*1.5, M14*1.5, M16*1.5, M20*1.5, M27*2 or other
Current: No thread
Probe material Standard is 321 stainless steel, can make to the following:
High temperature resistant: 2520, 3030, 3039
Anti-corrosion: 316L
High temperature resistant and anti-corrosion: GH3039
Probe diameter 0.3, 0.5, 0.8, 1, 1.5, 1.6, 2, 2.5, 3, 4, 4.8, 5, 6, 8mm, more bigger diameter more higher temperature resistant more response time and more operation life
Current: 3mm
Probe length 10-30000mm. Temperature measurement point: thermocouple:about 5mm from tip. RTD: about 5-20mm from tip
Current: 1000mm
Matched accessory M12 mounting nutM16 mounting nut
Insulating resistance 20MΩ min
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
Thermal response time (Unit: s)
Probe diameterUngrounded thermocoupleGrounded thermocoupleRTD
Ф20.50.4---
Ф31.20.63
Ф42.50.85
Ф54.51.28
Ф66212
Ф88415
FTARP15-K thermocouple child models
No Model Number Thread Size Probe Material Probe Diameter Probe Length MOQ Unit Price Related Product
1 FTARP15-K-M321D3L300 No thread 321 stainless steel 3mm 300mm 1 US $5.62 Order
2 FTARP15-K-M321D3L500 No thread 321 stainless steel 3mm 500mm 1 US $6.52 Order
3 FTARP15-K-M321D3L1000 No thread 321 stainless steel 3mm 1000mm 1 US $8.54 Visiting...
4 FTARP15-K-M321D4L300 No thread 321 stainless steel 4mm 300mm 1 US $7.19 Order
5 FTARP15-K-M321D4L500 No thread 321 stainless steel 4mm 500mm 1 US $8.31 Order Unfold
6 FTARP15-K-M321D4L1000 No thread 321 stainless steel 4mm 1000mm 1 US $10.34 Order
7 FTARP15-K-M321D5L300 No thread 321 stainless steel 5mm 300mm 1 US $7.87 Order
8 FTARP15-K-M321D5L500 No thread 321 stainless steel 5mm 500mm 1 US $8.76 Order
9 FTARP15-K-M321D5L1000 No thread 321 stainless steel 5mm 1000mm 1 US $10.79 Order
10 FTARP15-K-M321D6L300 No thread 321 stainless steel 6mm 300mm 1 US $8.99 Order
11 FTARP15-K-M321D6L500 No thread 321 stainless steel 6mm 500mm 1 US $10.11 Order
12 FTARP15-K-M321D6L1000 No thread 321 stainless steel 6mm 1000mm 1 US $12.13 Order
13 FTARP15-K-M321D8L300 No thread 321 stainless steel 8mm 300mm 1 US $10.34 Order
14 FTARP15-K-M321D8L500 No thread 321 stainless steel 8mm 500mm 1 US $11.91 Order
15 FTARP15-K-M321D8L1000 No thread 321 stainless steel 8mm 1000mm 1 US $13.93 Order
16 FTARP15-K-316LNPT4M600D6LE875 316L NPT1/2" Inconel 600 6mm 875mm (Excluding thread length) 1 US $24.01 Order
17 FTARP15-K-316LNPT4M600D6LE1028 316L NPT1/2" Inconel 600 6mm 1028mm (Excluding thread length) 1 US $29.02 Order
FTARP15 series flexible probe head sheathed thermocouple and RTD temperature sensor drawing
Packaging Details
Product quantity: 1pc
Package weight: 0.9kg
Package size: 21 x 11 x 14 cm
