FTARP15-PT100 series PT100 type flexible probe sheathed RTD temperature sensors
Main child models
Mouse over to zoom in
Price: US $10.65 / piece
Model number: FTARP15-PT100-A-M304D6L100
Product name: Temperature sensor
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Online store: |
| FTARP15-K | K | 321 stainless steel probe: 0-600 ℃ 2520 stainless steel probe: 0-1100 ℃ | US $5.62 - 29.02/ pieceOrder (17) |
| FTARP15-E | E | 0-400 ℃ | |
| FTARP15-J | J | 0-400 ℃ | |
| FTARP15-T | T | -200-350 ℃ | |
| FTARP15-PT100 | PT100 | -50-420 ℃ | Visiting... |
▇ FTARP15-PT100 temperature sensor model number legend
FTARP15-PT100
Parent Model Number
▇ General
| Model number | FTARP15 series |
| Mounting form | Flexible probe (Can be straight or bent, sheathed solid tube); rigid probe (Only straight, hollow tube) |
| Accuracy | K, E, J: ±0.4%|t|; PT100 A grade: ±(0.15℃+0.2%|t|); PT100 B grade: ±(0.3℃+0.5%|t|) |
| Thread size | Can add PT1/8", PT1/4", PT3/8", PT1/2", PT3/4", PT1", M6*1, M8*1.25, M8*1.5, M10*1, M10*1.5, M12*1, M12*1.5, M14*1.5, M16*1.5, M20*1.5, M27*2 or other |
| Probe material | Standard is 321 stainless steel, can make to the following: High temperature resistant: 2520, 3030, 3039 Anti-corrosion: 316L High temperature resistant and anti-corrosion: GH3039 |
| Probe diameter | 0.5-8mm, more bigger diameter more higher temperature resistant more response time and more operation life |
| Probe length | 10-30000mm. Temperature measurement point: thermocouple:about 5mm from tip. RTD: about 5-20mm from tip |
| Matched accessory | M12 mounting nut, M16 mounting nut |
| Insulating resistance | 20MΩ min |
| Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ Thermal response time (Unit: s)
| Probe diameter | Ungrounded thermocouple | Grounded thermocouple | RTD |
| Ф2 | 0.5 | 0.4 | --- |
| Ф3 | 1.2 | 0.6 | 3 |
| Ф4 | 2.5 | 0.8 | 5 |
| Ф5 | 4.5 | 1.2 | 8 |
| Ф6 | 6 | 2 | 12 |
| Ф8 | 8 | 4 | 15 |
▇ FTARP15-PT100 temperature sensor child models
| No | Model Number | Accuracy | Thread Size | Probe Material | Probe Diameter | Probe Length | MOQ | Unit Price |
| 1 | FTARP15-PT100-A-M304D6L100 | A grade | No thread | 304 stainless steel | 6mm | 100mm | 1 | US $10.65 |

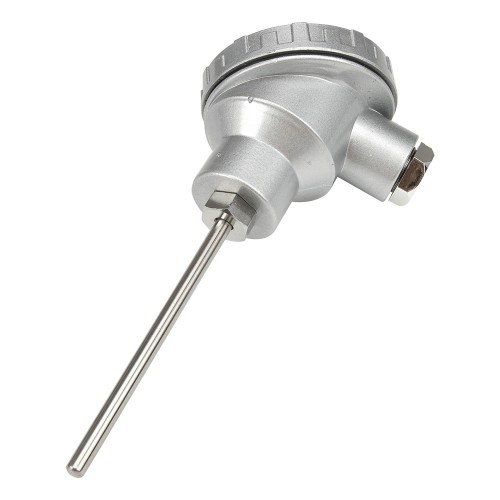

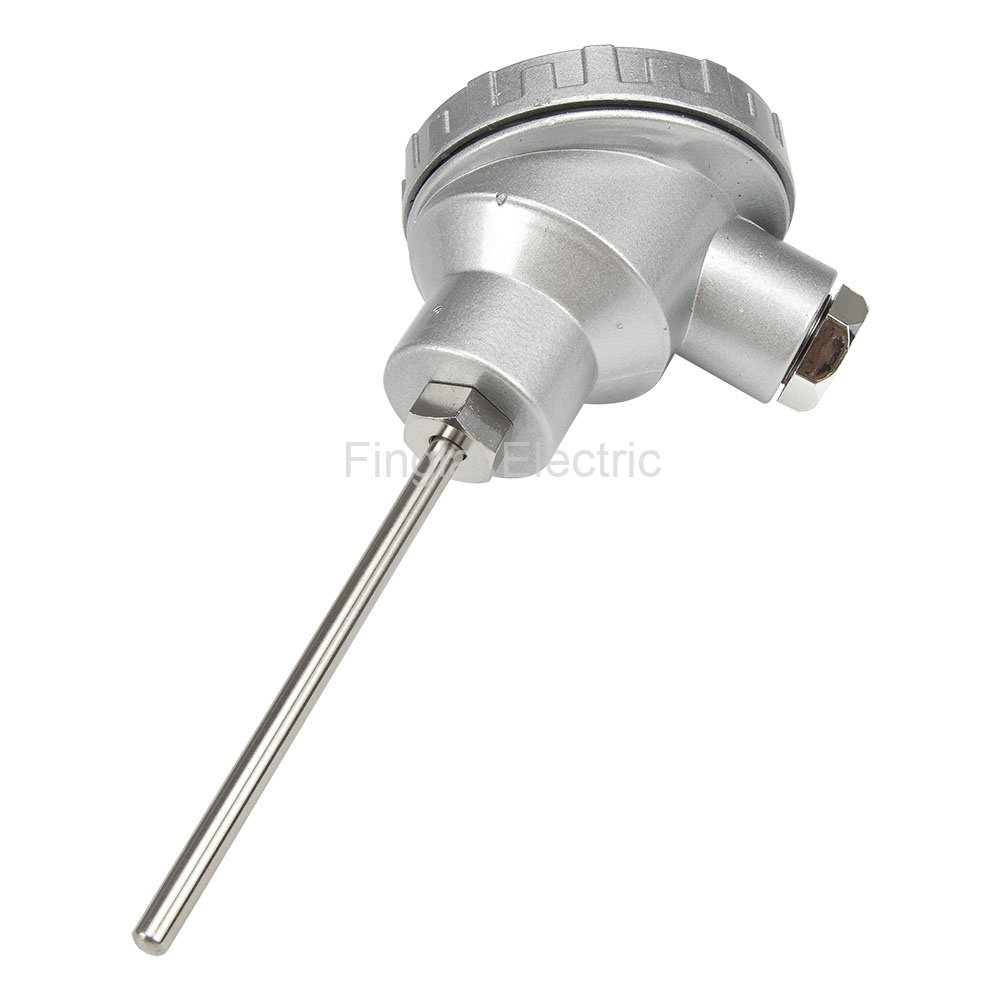

| 2 | FTARP15-PT100-A-M304D6LU100 | A grade | No thread | 304 stainless steel | 6mm | 100mm (Can't be bent) | 1 | US $7.73 |
| 3 | FTARP15-PT100-B-M321D5L300 | B grade | No thread | 321 stainless steel | 5mm | 300mm | 1 | US $9.89 |
| 4 | FTARP15-PT100-B-M321D5L500 | B grade | No thread | 321 stainless steel | 5mm | 500mm | 1 | US $11.91 |
| 5 | FTARP15-PT100-B-M321D5L1000 | B grade | No thread | 321 stainless steel | 5mm | 1000mm | 1 | US $13.93 |
| 6 | FTARP15-PT100-B-NPT4M316LD14L330 | B grade | NPT 1/2" | 316L stainless steel | 14mm | 330mm | 1 | US $25.19 |
| 7 | FTARP15-PT100-B-NPT4M316LD14L650 | B grade | NPT 1/2" | 316L stainless steel | 14mm | 650mm | 1 | US $31.97 |
| 8 | FTARP15-PT100-B-NPT4M316LD14L900 | B grade | NPT 1/2" | 316L stainless steel | 14mm | 900mm | 1 | US $38.76 |
| 9 | FTARP15-PT100-B-FM304D14L650 | B grade | Flange | 304 stainless steel | 14mm | 650mm | 1 | US $26.07 |
FTARP15 series flexible probe head sheathed thermocouple and RTD temperature sensor drawing
