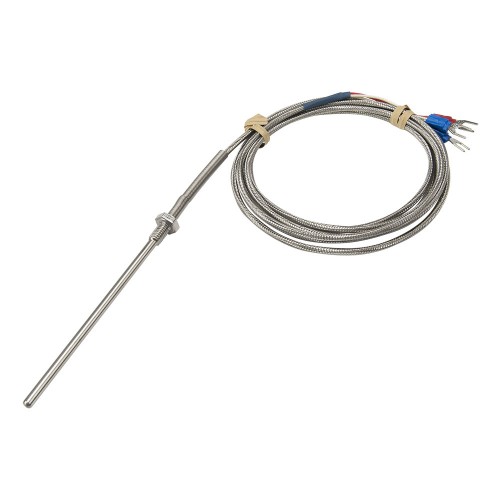

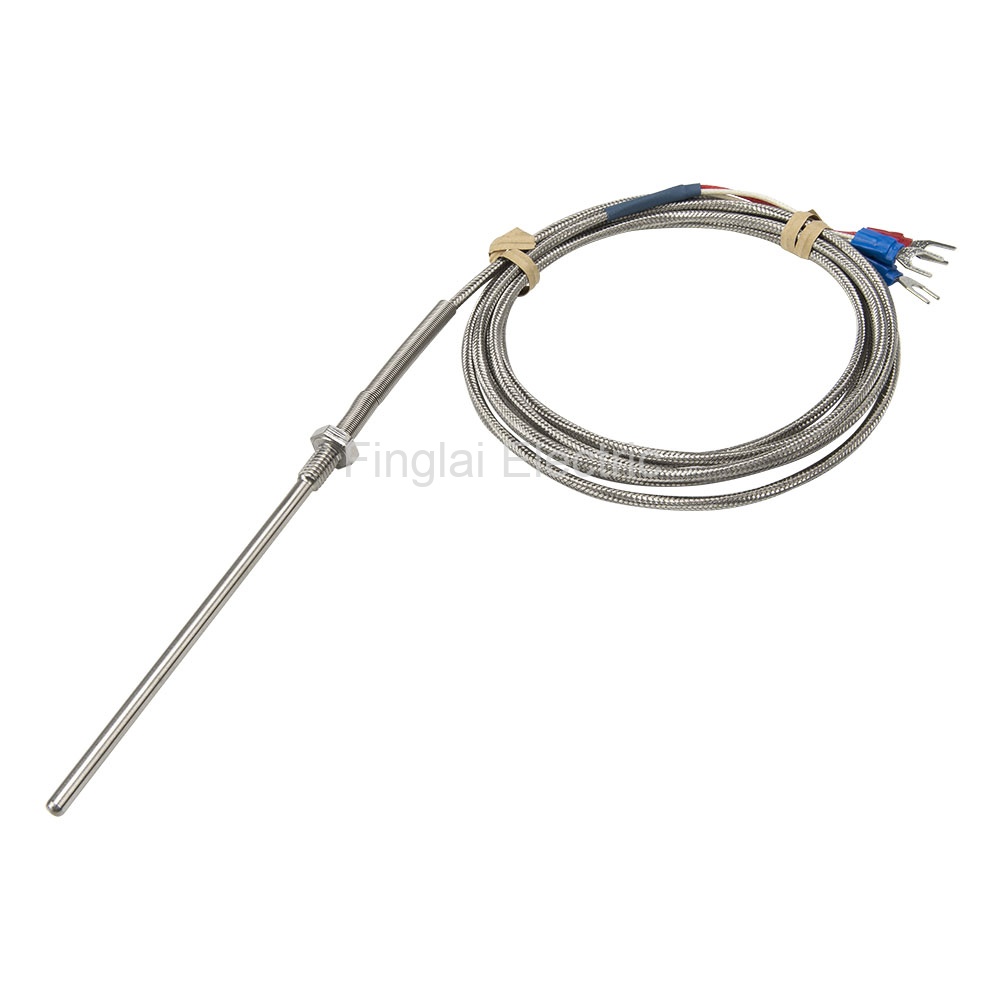

FTARP09 PT100 type M6*1 screw thread 4*100mm probe 2m high density metal screening cable RTD temperature sensor

Product features
Price: US $6.15 / piece
Model number: FTARP09-PT100-M6P1L100M2
Product name: Temperature sensor
Deliver to:
Shipping:
US $6.5via
Estimated Delivery Time: 9-15 days
Quantity:



Total price:US $12.65
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberSame modelTypeMeasuring rangeOnline store:
FTARP09-KWRN-291K0-600 ℃US $5.48 - 8.4/ pieceOrder (66)
FTARP09-EWRE-291E0-400 ℃US $5.48 - 6.6/ pieceOrder (8)
FTARP09-JJ0-400 ℃
FTARP09-PT100WZP-291PT100Metal cable: -50-450℃
PTFE cable: -50-200℃
Silica gel cable: -50-180℃
Visiting...
FTARP09-PT1000PT1000Metal cable: -50-450℃
PTFE cable: -50-200℃
US $7.73/ pieceOrder (1)
FTARP09-PT100 temperature sensor model number legend
General
Model number FTARP09 series
Mounting form Probe
Accuracy K, E, J: ±0.4%|t|; PT100: 2B grade (Default): ±(0.6℃+1%|t|); B grade: ±(0.3℃+0.5%|t|); A grade: ±(0.15℃+0.2%|t|)
Work type Thermocouple: Ungrounded
Thread size PT1/8", PT1/4", PT3/8", PT1/2", PT3/4", M6*1, M8*1.25, M8*1.5, M10*1, M10*1.25, M10*1.5, M12*1, M12*1.5, M14*1.5, M16*1.5, M20*1.5, M27*2; Can make NPT, MOQ is 20pcs
Current: M6*1
Probe material 201 stainless steel, the connection between probe and thread are welded, waterproof
If anti corrosion, can make to 316L, any screw threads except M6*1
Probe diameter Usual: M6: 4mm; PT1/4", M8, M10, M12, PT1/2", M16, M20, M27: 5mm; M27 316L: 10mm; 316L Silica gel cable: 6mm. If customzied, please contact first.
Probe length Standard is 50mm, can make 30, 100, 150mm (Include screw thread length). If not include screw thread, 1-2m min.
Current: 100mm
Cable material High density metal screening cable, PTFE silver plated copper cable, Silica gel cable
Cable length Standard is 1m, can make other length
Thermal response time Thermocouple: <5s; RTD: <8s
Insulating resistance 20MΩ min
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
FTARP09-PT100 temperature sensor child models
No Model Number Probe Material Thread Size Probe Length Cabel Material Cable Length (3 Wires Default) MOQ Unit Price Related Product
1 FTARP09-PT100-P1L30M1 201 stainless steel PT1/8" 30mm Metal screening 1m 1 US $5.48 Order
2 FTARP09-PT100-P1L30M1.5 201 stainless steel PT1/8" 30mm Metal screening 1.5m 1 US $6.15 Order
3 FTARP09-PT100-P1L30M2 201 stainless steel PT1/8" 30mm Metal screening 2m 1 US $6.15 Order
4 FTARP09-PT100-P1L30M3 201 stainless steel PT1/8" 30mm Metal screening 3m 1 US $7.05 Order
5 FTARP09-PT100-P1L50M1 201 stainless steel PT1/8" 50mm Metal screening 1m 1 US $5.48 Order Unfold
6 FTARP09-PT100-P1L50M2 201 stainless steel PT1/8" 50mm Metal screening 2m 1 US $6.15 Order
7 FTARP09-PT100-P1L50M3 201 stainless steel PT1/8" 50mm Metal screening 3m 1 US $6.6 Order
8 FTARP09-PT100-P1L50M5 201 stainless steel PT1/8" 50mm Metal screening 5m 1 US $8.18 Order
9 FTARP09-PT100-P1L100M2 201 stainless steel PT1/8" 100mm Metal screening 2m 1 US $6.15 Order
10 FTARP09-PT100-P2L30M1 201 stainless steel PT1/4" 30mm Metal screening 1m 1 US $5.48 Order
11 FTARP09-PT100-P2L30M1.5 201 stainless steel PT1/4" 30mm Metal screening 1.5m 1 US $6.15 Order
12 FTARP09-PT100-P2L30M2 201 stainless steel PT1/4" 30mm Metal screening 2m 1 US $6.15 Order
13 FTARP09-PT100-P2L30M3 201 stainless steel PT1/4" 30mm Metal screening 3m 1 US $6.83 Order
14 FTARP09-PT100-P2L30M3W2 201 stainless steel PT1/4" 30mm Metal screening 3m 2 wires 1 US $6.83 Order
15 FTARP09-PT100-P2L30S1.5 201 stainless steel PT1/4" 30mm Silica gel 1.5m 1 US $7.38 Order
16 FTARP09-PT100-P2L30S0.5 201 stainless steel PT1/4" 30mm Silica gel 0.5m 1 US $6.64 Order
17 FTARP09-PT100-P2L50M1 201 stainless steel PT1/4" 50mm Metal screening 1m 1 US $5.48 Order
18 FTARP09-PT100-P2L50M2 201 stainless steel PT1/4" 50mm Metal screening 2m 1 US $6.15 Order
19 FTARP09-PT100-P2L50M3 201 stainless steel PT1/4" 50mm Metal screening 3m 1 US $6.83 Order
20 FTARP09-PT100-P2L50M4 201 stainless steel PT1/4" 50mm Metal screening 4m 1 US $7.5 Order
21 FTARP09-PT100-P2L50M5 201 stainless steel PT1/4" 50mm Metal screening 5m 1 US $8.18 Order
22 FTARP09-PT100-P2L50P1 201 stainless steel PT1/4" 50mm PTFE silver plated copper 1m 1 US $5.48 Order
23 FTARP09-PT100-P2L70M2 201 stainless steel PT1/4" 70mm Metal screening 2m 1 US $6.15 Order
24 FTARP09-PT100-P2L100M2 201 stainless steel PT1/4" 100mm Metal screening 2m 1 US $6.15 Order
25 FTARP09-PT100-P3L30M1 201 stainless steel PT3/8" 30mm Metal screening 1m 1 US $6.15 Order
26 FTARP09-PT100-P3L30M2 201 stainless steel PT3/8" 30mm Metal screening 2m 1 US $6.83 Order
27 FTARP09-PT100-P3L50M1 201 stainless steel PT3/8" 50mm Metal screening 1m 1 US $6.15 Order
28 FTARP09-PT100-P3L50M2 201 stainless steel PT3/8" 50mm Metal screening 2m 1 US $6.83 Order
29 FTARP09-PT100-P3L50M3 201 stainless steel PT3/8" 50mm Metal screening 3m 1 US $6.6 Order
30 FTARP09-PT100-P3L50M5 201 stainless steel PT3/8" 50mm Metal screening 5m 1 US $8.85 Order
31 FTARP09-PT100-P3L50P1 201 stainless steel PT3/8" 50mm PTFE silver plated copper 1m 1 US $5.48 Order
32 FTARP09-PT100-P3L100M2 201 stainless steel PT3/8" 100mm Metal screening 2m 1 US $7.5 Order
33 FTARP09-PT100-P4L30M1 201 stainless steel PT1/2" 30mm Metal screening 1m 1 US $7.28 Order
34 FTARP09-PT100-P4L30M2 201 stainless steel PT1/2" 30mm Metal screening 2m 1 US $6.83 Order
35 FTARP09-PT100-P4L30M3 201 stainless steel PT1/2" 30mm Metal screening 3m 1 US $7.5 Order
36 FTARP09-PT100-P4L50M1 201 stainless steel PT1/2" 50mm Metal screening 1m 1 US $6.15 Order
37 FTARP09-PT100-P4L50M2 201 stainless steel PT1/2" 50mm Metal screening 2m 1 US $6.83 Order
38 FTARP09-PT100-P4L50M3 201 stainless steel PT1/2" 50mm Metal screening 3m 1 US $7.5 Order
39 FTARP09-PT100-P4L50M5 201 stainless steel PT1/2" 50mm Metal screening 5m 1 US $8.85 Order
40 FTARP09-PT100-P4L50P1 201 stainless steel PT1/2" 50mm PTFE silver plated copper 1m 1 US $6.6 Order
41 FTARP09-PT100-P4L100M2 201 stainless steel PT1/2" 100mm Metal screening 2m 1 US $6.83 Order
42 FTARP09-PT100-P6L30M1 201 stainless steel PT3/4" 30mm Metal screening 1m 1 US $7.73 Order
43 FTARP09-PT100-P6L30M2 201 stainless steel PT3/4" 30mm Metal screening 2m 1 US $8.4 Order
44 FTARP09-PT100-P6L30M3 201 stainless steel PT3/4" 30mm Metal screening 3m 1 US $9.07 Order
45 FTARP09-PT100-P6L50M1 201 stainless steel PT3/4" 50mm Metal screening 1m 1 US $7.73 Order
46 FTARP09-PT100-P6L50M2 201 stainless steel PT3/4" 50mm Metal screening 2m 1 US $8.4 Order
47 FTARP09-PT100-P6L50M5 201 stainless steel PT3/4" 50mm Metal screening 5m 1 US $10.42 Order
48 FTARP09-PT100-M6P1L30M1 201 stainless steel M6*1 30mm Metal screening 1m 1 US $5.48 Order
49 FTARP09-PT100-M6P1L30M1.5 201 stainless steel M6*1 30mm Metal screening 1.5m 1 US $6.15 Order
50 FTARP09-PT100-M6P1L30M2 201 stainless steel M6*1 30mm Metal screening 2m 1 US $6.6 Order
51 FTARP09-PT100-M6P1L30M3 201 stainless steel M6*1 30mm Metal screening 3m 1 US $6.83 Order
52 FTARP09-PT100-M6P1L30M5 201 stainless steel M6*1 30mm Metal screening 5m 1 US $8.18 Order
53 FTARP09-PT100-M6P1L30P3 201 stainless steel M6*1 30mm PTFE silver plated copper 3m 1 US $6.6 Order
54 FTARP09-PT100-M6P1L50M1 201 stainless steel M6*1 50mm Metal screening 1m 1 US $5.48 Order
55 FTARP09-PT100-M6P1L50M2 201 stainless steel M6*1 50mm Metal screening 2m 1 US $6.6 Order
56 FTARP09-PT100-M6P1L50M3 201 stainless steel M6*1 50mm Metal screening 3m 1 US $6.83 Order
57 FTARP09-PT100-M6P1L50P1 201 stainless steel M6*1 50mm PTFE silver plated copper 1m 1 US $5.48 Order
58 FTARP09-PT100-M6P1L100M2 201 stainless steel M6*1 100mm Metal screening 2m 1 US $6.15 Visiting...
59 FTARP09-PT100-M6P1L20M1 201 stainless steel M6*1 20mm Metal screening 1m 1 US $5.48 Order
60 FTARP09-PT100-M8P1.25L30M1 201 stainless steel M8*1.25 30mm Metal screening 1m 1 US $5.93 Order
61 FTARP09-PT100-M8P1.25L30M2 201 stainless steel M8*1.25 30mm Metal screening 2m 1 US $6.6 Order
62 FTARP09-PT100-M8P1.25L30M3 201 stainless steel M8*1.25 30mm Metal screening 3m 1 US $6.83 Order
63 FTARP09-PT100-M8P1.25L30P3 201 stainless steel M8*1.25 30mm PTFE silver plated copper 3m 1 US $6.6 Order
64 FTARP09-PT100-M8P1.25L50M1 201 stainless steel M8*1.25 50mm Metal screening 1m 1 US $5.93 Order
65 FTARP09-PT100-M8P1.25L50M2 201 stainless steel M8*1.25 50mm Metal screening 2m 1 US $6.6 Order
66 FTARP09-PT100-M8P1.25L50P1 201 stainless steel M8*1.25 50mm PTFE silver plated copper 1m 1 US $5.48 Order
67 FTARP09-PT100-M8P1.25L100M2 201 stainless steel M8*1.25 100mm Metal screening 2m 1 US $6.6 Order
68 FTARP09-PT100-M10P1L30M1 201 stainless steel M10*1 30mm Metal screening 1m 1 US $5.93 Order
69 FTARP09-PT100-M10P1L30M2 201 stainless steel M10*1 30mm Metal screening 2m 1 US $6.6 Order
70 FTARP09-PT100-M10P1L50M1 201 stainless steel M10*1 50mm Metal screening 1m 1 US $5.93 Order
71 FTARP09-PT100-M10P1L50M2 201 stainless steel M10*1 50mm Metal screening 2m 1 US $6.6 Order
72 FTARP09-PT100-M10P1L100M2 201 stainless steel M10*1 100mm Metal screening 2m 1 US $6.6 Order
73 FTARP09-PT100-M10P1.5L30M1 201 stainless steel M10*1.5 30mm Metal screening 1m 1 US $5.93 Order
74 FTARP09-PT100-M10P1.5L30M2 201 stainless steel M10*1.5 30mm Metal screening 2m 1 US $6.6 Order
75 FTARP09-PT100-M10P1.5L50M1 201 stainless steel M10*1.5 50mm Metal screening 1m 1 US $5.93 Order
76 FTARP09-PT100-M10P1.5L50M2 201 stainless steel M10*1.5 50mm Metal screening 2m 1 US $6.6 Order
77 FTARP09-PT100-M10P1.5L100M2 201 stainless steel M10*1.5 100mm Metal screening 2m 1 US $6.67 Order
78 FTARP09-PT100-M12P1L30M1 201 stainless steel M12*1 30mm Metal screening 1m 1 US $5.93 Order
79 FTARP09-PT100-M12P1L30M2 201 stainless steel M12*1 30mm Metal screening 2m 1 US $6.6 Order
80 FTARP09-PT100-M12P1L50M1 201 stainless steel M12*1 50mm Metal screening 1m 1 US $5.93 Order
81 FTARP09-PT100-M12P1L50M2 201 stainless steel M12*1 50mm Metal screening 2m 1 US $6.6 Order
82 FTARP09-PT100-M12P1L100M2 201 stainless steel M12*1 100mm Metal screening 2m 1 US $6.6 Order
83 FTARP09-PT100-M12P1L100M0.5 201 stainless steel M12*1 100mm Metal screening 0.5m 1 US $5.93 Order
84 FTARP09-PT100-M12P1.5L30M1 201 stainless steel M12*1.5 30mm Metal screening 1m 1 US $5.93 Order
85 FTARP09-PT100-M12P1.5L30M2 201 stainless steel M12*1.5 30mm Metal screening 2m 1 US $6.6 Order
86 FTARP09-PT100-M12P1.5L50M1 201 stainless steel M12*1.5 50mm Metal screening 1m 1 US $5.93 Order
87 FTARP09-PT100-M12P1.5L50M2 201 stainless steel M12*1.5 50mm Metal screening 2m 1 US $6.6 Order
88 FTARP09-PT100-M12P1.5L50M3W2 201 stainless steel M12*1.5 50mm Metal screening 3m 2 wires 1 US $6.83 Order
89 FTARP09-PT100-M12P1.5L50P1 201 stainless steel M12*1.5 50mm PTFE silver plated copper 1m 1 US $6.6 Order
90 FTARP09-PT100-M12P1.5L70M1.5 201 stainless steel M12*1.5 70mm Metal screening 1.5m 1 US $6.6 Order
91 FTARP09-PT100-M12P1.5L100M2 201 stainless steel M12*1.5 100mm Metal screening 2m 1 US $6.6 Order
92 FTARP09-PT100-M12P1.5L100M4 201 stainless steel M12*1.5 100mm Metal screening 4m 1 US $7.95 Order
93 FTARP09-PT100-M14P1.5L30M1 201 stainless steel M14*1.5 30mm Metal screening 1m 1 US $5.93 Order
94 FTARP09-PT100-M14P1.5L30M2 201 stainless steel M14*1.5 30mm Metal screening 2m 1 US $6.6 Order
95 FTARP09-PT100-M14P1.5L50M1 201 stainless steel M14*1.5 50mm Metal screening 1m 1 US $5.93 Order
96 FTARP09-PT100-M14P1.5L100M3 201 stainless steel M14*1.5 100mm Metal screening 3m 1 US $7.28 Order
97 FTARP09-PT100-M14P1.5L20M2 201 stainless steel M14*1.5 20mm Metal screening 2m 1 US $6.6 Order
98 FTARP09-PT100-M16P1.5L30M3 201 stainless steel M16*1.5 30mm Metal screening 3m 1 US $7.73 Order
99 FTARP09-PT100-M16P1.5L50M1 201 stainless steel M16*1.5 50mm Metal screening 1m 1 US $6.38 Order
100 FTARP09-PT100-M16P1.5L50M3 201 stainless steel M16*1.5 50mm Metal screening 3m 1 US $7.73 Order
101 FTARP09-PT100-M16P1.5L50P1 201 stainless steel M16*1.5 50mm PTFE silver plated copper 1m 1 US $6.6 Order
102 FTARP09-PT100-M16P1.5L100M2 201 stainless steel M16*1.5 100mm Metal screening 2m 1 US $7.05 Order
103 FTARP09-PT100-M20P1.5L30M1 201 stainless steel M20*1.5 30mm Metal screening 1m 1 US $6.6 Order
104 FTARP09-PT100-M20P1.5L50M1 201 stainless steel M20*1.5 50mm Metal screening 1m 1 US $6.6 Order
105 FTARP09-PT100-M20P1.5L50P1 201 stainless steel M20*1.5 50mm PTFE silver plated copper 1m 1 US $6.6 Order
106 FTARP09-PT100-M27P2L50M1 201 stainless steel M27*2 50mm Metal screening 1m 1 US $6.6 Order
107 FTARP09-PT100-M27P2L50P1 201 stainless steel M27*2 50mm PTFE silver plated copper 1m 1 US $7.73 Order
108 FTARP09-PT100-316LM10P1.5L50M1 316L stainless steel M10*1.5 50mm Metal screening 1m 1 US $7.13 Order
109 FTARP09-PT100-316LM14P1.5L50M1 316L stainless steel M14*1.5 50mm Metal screening 1m 1 US $7.13 Order
110 FTARP09-PT100-316LM20P1.5L50M1 316L stainless steel M20*1.5 50mm Metal screening 1m 1 US $7.8 Order
111 FTARP09-PT100-316LM27P2L50M1 316L stainless steel M27*2 50mm Metal screening 1m 1 US $8.66 Order
112 FTARP09-PT100-A316LP2L50P1 316L stainless steel (A grade) PT1/4" 50mm PTFE silver plated copper 1m 1 US $7.05 Order
113 FTARP09-PT100-A316LG2L30S5 316L stainless steel (A grade) G1/4" 30mm Silica gel 5m 1 US $6.6 Order
114 FTARP09-PT100-A316LG2L30S0.3 316L stainless steel (A grade) G1/4" 30mm Silica gel 0.3m 1 US $6.15 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.13kg
Package size: 10 x 10 x 6 cm
