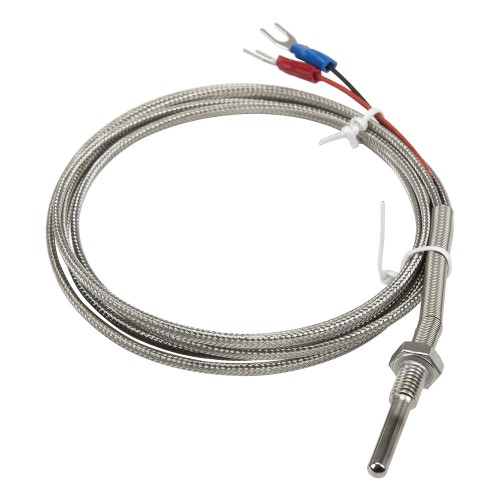

FTARP09-K M6*1 screw thread 30mm probe 1.5m metal cable K thermocouple temperature sensor
Product features
Price: US $6.15 / piece
Model number: FTARP09-K-M6P1L30M1.5
Product name: Thermocouple
Cabel material:
Metal screening
Deliver to:
Shipping:
US $5.09via
Estimated Delivery Time: 9-15 days
Total price:US $11.24
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model number | Same model | Type | Measuring range | Online store:
|
FTARP09-K | WRN-291 | K | 0-600 ℃ | Visiting... |
FTARP09-E | WRE-291 | E | 0-400 ℃ | US $5.48 - 6.6/ pieceOrder (8) |
FTARP09-J | | J | 0-400 ℃ | |
FTARP09-PT100 | WZP-291 | PT100 | Metal cable: -50-450℃ FEP cable: -50-200℃ Silica gel cable: -50-180℃ | US $5.48 - 10.42/ pieceOrder (136) |
FTARP09-PT1000 | | PT1000 | Metal cable: -50-450℃ FEP cable: -50-200℃ Silica gel cable: -50-180℃ | US $7.73/ pieceOrder (2) |
▇ FTARP09-K thermocouple model number legend
▇ General
Model number |
FTARP09 series |
Mounting form |
Probe |
Accuracy |
K, E, J: ±0.4%|t|; PT100: 2B grade (Default): ±(0.6℃+1%|t|); B grade: ±(0.3℃+0.5%|t|); A grade: ±(0.15℃+0.2%|t|) |
Work type |
Thermocouple: Ungrounded |
Thread size |
PT1/8", PT1/4", PT3/8", PT1/2", PT3/4", M6*1, M8*1.25, M8*1.5, M10*1, M10*1.25, M10*1.5, M12*1, M12*1.5, M14*1.5, M16*1.5, M20*1.5, M27*2; Can make NPT, MOQ is 20pcs Current: M6*1 |
Probe material |
201 stainless steel, the connection between probe and thread are welded, waterproof If anti corrosion, can make to 316L, any screw threads except M6*1 |
Probe diameter |
Usual: M6: 4mm; PT1/4", M8, M10, M12, PT1/2", M16, M20, M27: 5mm; M27 316L: 10mm; 316L Silica gel cable: 6mm. If customzied, please contact first. |
Probe length |
Standard is 50mm, can make 30, 100, 150mm (Include screw thread length). If not include screw thread, 1-2m min. Current: 30mm |
Cable material |
High density metal screening cable, FEP silver plated copper cable, Silica gel cable |
Cable length |
Standard is 1m, can make other length Current: 1.5m |
Thermal response time |
Thermocouple: <5s; RTD: <8s |
Insulating resistance |
20MΩ min |
Technical article |
PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ FTARP09-K thermocouple child models
No |
Model Number |
Thread Size |
Probe Length |
Cabel Material |
Cable Length |
MOQ |
Unit Price |
Related Product |
1 |
FTARP09-K-P1L30M1 |
PT1/8" |
30mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
2 |
FTARP09-K-P1L30M1.5 |
PT1/8" |
30mm |
Metal screening |
1.5m |
1 |
US $6.15 |
Order |
3 |
FTARP09-K-P1L30M2 |
PT1/8" |
30mm |
Metal screening |
2m |
1 |
US $6.83 |
Order |
4 |
FTARP09-K-P1L30M3 |
PT1/8" |
30mm |
Metal screening |
3m |
1 |
US $7.05 |
Order |
5 |
FTARP09-K-P1L50M1 |
PT1/8" |
50mm |
Metal screening |
1m |
1 |
US $5.48 |
Order Unfold |
6 |
FTARP09-K-P1L50M5 |
PT1/8" |
50mm |
Metal screening |
5m |
1 |
US $8.4 |
Order |
7 |
FTARP09-K-P1L100M1 |
PT1/8" |
100mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
8 |
FTARP09-K-P1L100M2 |
PT1/8" |
100mm |
Metal screening |
2m |
1 |
US $6.15 |
Order |
9 |
FTARP09-K-P1L150M1.5 |
PT1/8" |
150mm |
Metal screening |
1.5m |
1 |
US $6.15 |
Order |
10 |
FTARP09-K-P1L20M1.5 |
PT1/8" |
20mm |
Metal screening |
1.5m |
1 |
US $6.15 |
Order |
11 |
FTARP09-K-P2L30M1 |
PT1/4" |
30mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
12 |
FTARP09-K-P2L50M1 |
PT1/4" |
50mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
13 |
FTARP09-K-P2L70M2 |
PT1/4" |
70mm |
Metal screening |
2m |
1 |
US $6.15 |
Order |
14 |
FTARP09-K-P2L100M1 |
PT1/4" |
100mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
15 |
FTARP09-K-P2L100M2 |
PT1/4" |
100mm |
Metal screening |
2m |
1 |
US $6.15 |
Order |
16 |
FTARP09-K-P2L150M3 |
PT1/4" |
150mm |
Metal screening |
3m |
1 |
US $7.05 |
Order |
17 |
FTARP09-K-P3L30M1 |
PT3/8" |
30mm |
Metal screening |
1m |
1 |
US $6.15 |
Order |
18 |
FTARP09-K-P3L30M3 |
PT3/8" |
30mm |
Metal screening |
3m |
1 |
US $7.73 |
Order |
19 |
FTARP09-K-P3L50M1 |
PT3/8" |
50mm |
Metal screening |
1m |
1 |
US $6.15 |
Order |
20 |
FTARP09-K-P3L100M1 |
PT3/8" |
100mm |
Metal screening |
1m |
1 |
US $6.15 |
Order |
21 |
FTARP09-K-P3L100M2 |
PT3/8" |
100mm |
Metal screening |
2m |
1 |
US $6.83 |
Order |
22 |
FTARP09-K-P4L30M1 |
PT1/2" |
30mm |
Metal screening |
1m |
1 |
US $6.6 |
Order |
23 |
FTARP09-K-P4L50M1 |
PT1/2" |
50mm |
Metal screening |
1m |
1 |
US $6.6 |
Order |
24 |
FTARP09-K-P4L100M1 |
PT1/2" |
100mm |
Metal screening |
1m |
1 |
US $6.6 |
Order |
25 |
FTARP09-K-P4L100M2 |
PT1/2" |
100mm |
Metal screening |
2m |
1 |
US $7.28 |
Order |
26 |
FTARP09-K-P4L180M1.5 |
PT1/2" |
180mm |
Metal screening |
1.5m |
1 |
US $7.28 |
Order |
27 |
FTARP09-K-M6P1L30M1 |
M6*1 |
30mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
28 |
FTARP09-K-M6P1L30M1.5 |
M6*1 |
30mm |
Metal screening |
1.5m |
1 |
US $6.15 |
Visiting... |
29 |
FTARP09-K-M6P1L30M2 |
M6*1 |
30mm |
Metal screening |
2m |
1 |
US $6.15 |
Order |
30 |
FTARP09-K-M6P1L50M1 |
M6*1 |
50mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
31 |
FTARP09-K-M6P1L50M5 |
M6*1 |
50mm |
Metal screening |
5m |
1 |
US $8.4 |
Order |
32 |
FTARP09-K-M6P1L100M1 |
M6*1 |
100mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
33 |
FTARP09-K-M6P1L100M2 |
M6*1 |
100mm |
Metal screening |
2m |
1 |
US $6.15 |
Order |
34 |
FTARP09-K-M6P1L150M1.5 |
M6*1 |
150mm |
Metal screening |
1.5m |
1 |
US $6.15 |
Order |
35 |
FTARP09-K-M6P1L150M3 |
M6*1 |
150mm |
Metal screening |
3m |
1 |
US $6.83 |
Order |
36 |
FTARP09-K-M6P1L20M1 |
M6*1 |
20mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
37 |
FTARP09-K-M8P1.25L30M1 |
M8*1.25 |
30mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
38 |
FTARP09-K-M8P1.25L30M1.5 |
M8*1.25 |
30mm |
Metal screening |
1.5m |
1 |
US $6.15 |
Order |
39 |
FTARP09-K-M8P1.25L50M1 |
M8*1.25 |
50mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
40 |
FTARP09-K-M8P1.25L100M1 |
M8*1.25 |
100mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
41 |
FTARP09-K-M8P1.25L100M2 |
M8*1.25 |
100mm |
Metal screening |
2m |
1 |
US $6.15 |
Order |
42 |
FTARP09-K-M10P1L30M1 |
M10*1 |
30mm |
Metal screening |
1m |
1 |
US $6.14 |
Order |
43 |
FTARP09-K-M10P1L30M1.5 |
M10*1 |
30mm |
Metal screening |
1.5m |
1 |
US $6.15 |
Order |
44 |
FTARP09-K-M10P1L50M1 |
M10*1 |
50mm |
Metal screening |
1m |
1 |
US $6.14 |
Order |
45 |
FTARP09-K-M10P1L100M1 |
M10*1 |
100mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
46 |
FTARP09-K-M10P1L100M2 |
M10*1 |
100mm |
Metal screening |
2m |
1 |
US $6.15 |
Order |
47 |
FTARP09-K-M10P1L17M1 |
M10*1 |
17mm |
Metal screening |
1m |
1 |
US $6.91 |
Order |
48 |
FTARP09-K-M10P1.5L50M1 |
M10*1.5 |
50mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
49 |
FTARP09-K-M10P1.5L100M1 |
M10*1.5 |
100mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
50 |
FTARP09-K-M10P1.5L100M2 |
M10*1.5 |
100mm |
Metal screening |
2m |
1 |
US $6.15 |
Order |
51 |
FTARP09-K-M12P1L30M1 |
M12*1 |
30mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
52 |
FTARP09-K-M12P1L50M1 |
M12*1 |
50mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
53 |
FTARP09-K-M12P1L100M1 |
M12*1 |
100mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
54 |
FTARP09-K-M12P1L100M2 |
M12*1 |
100mm |
Metal screening |
2m |
1 |
US $6.15 |
Order |
55 |
FTARP09-K-M12P1L150M3 |
M12*1 |
150mm |
Metal screening |
3m |
1 |
US $7.05 |
Order |
56 |
FTARP09-K-M12P1.5L30M1 |
M12*1.5 |
30mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
57 |
FTARP09-K-M12P1.5L50M1 |
M12*1.5 |
50mm |
Metal screening |
1m |
1 |
US $5.48 |
Order |
58 |
FTARP09-K-M12P1.5L100M2 |
M12*1.5 |
100mm |
Metal screening |
2m |
1 |
US $6.15 |
Order |
59 |
FTARP09-K-M14P1.5L30M1 |
M14*1.5 |
30mm |
Metal screening |
1m |
1 |
US $5.93 |
Order |
60 |
FTARP09-K-M14P1.5L50M1 |
M14*1.5 |
50mm |
Metal screening |
1m |
1 |
US $5.93 |
Order |
61 |
FTARP09-K-M16P1.5L30M1 |
M16*1.5 |
30mm |
Metal screening |
1m |
1 |
US $6.38 |
Order |
62 |
FTARP09-K-M16P1.5L50M1 |
M16*1.5 |
50mm |
Metal screening |
1m |
1 |
US $6.38 |
Order |
63 |
FTARP09-K-M16P1.5L100M1 |
M16*1.5 |
100mm |
Metal screening |
1m |
1 |
US $6.38 |
Order |
64 |
FTARP09-K-M16P1.5L100M2 |
M16*1.5 |
100mm |
Metal screening |
2m |
1 |
US $7.05 |
Order |
65 |
FTARP09-K-M18P1.5L30M1 |
M18*1.5 |
30mm |
Metal screening |
1m |
1 |
US $6.83 |
Order |
66 |
FTARP09-K-M18P1.5L50M1 |
M18*1.5 |
50mm |
Metal screening |
1m |
1 |
US $6.83 |
Order |
67 |
FTARP09-K-G2L100M5 |
G1/4" |
100mm |
Metal screening |
5m |
1 |
US $5.48 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.11kg
Package size: 10 x 10 x 5 cm
