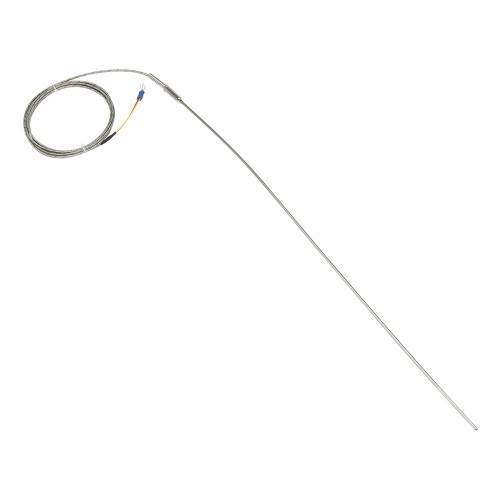

FTARP08 J type 3*500mm 321 stainless steel flexible probe 2m metal screening cable sheathed thermocouple temperature sensor

Product features
Mouse over to zoom in
FTARP08 J type 3*500mm 321 stainless steel flexible probe 2m metal screening cable sheathed thermocouple temperature sensor
Price: US $5.68 / piece
Model number: FTARP08-J-D3L500M2
Product name: Thermocouple
Probe material:
321 stainless steel
Probe diameter:
1mm1.5mm
US $5.892mm3mm
US $5.684mm5mm6mm
Probe length:
50mm100mm
US $5.32150mm200mm250mm300mm350mm400mm500mm
US $5.68550mm1000mm60mm
Cabel material:
Metal screening
US $5.68PTFE multi strand metal screening
Cable length:
1m1.5m2m
US $5.683m0.3m5m5m with plug5m with big plug
Deliver to:
Shipping:
US $7.82via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $13.5
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberTypeMeasuring rangeOnline store:
FTARP08-KK0-600 ℃US $2.47 - 44.02/ pieceOrder (84)
FTARP08-EE0-400 ℃US $3.74/ pieceOrder (1)
FTARP08-JJ0-400 ℃Visiting...
FTARP08-TT-200-350 ℃US $6.07 - 7.24/ pieceOrder (4)
FTARP08-NN0-600 ℃US $6.07/ pieceOrder (1)
FTARP08-PT100PT100Metal, FEP cable: -50-200℃
Silica gel cable: -50-180℃		US $6.15 - 11.61/ pieceOrder (134)
FTARP08-PT1000PT1000Metal, FEP cable: -50-200℃
Silica gel cable: -50-180℃		US $8.24 - 9.58/ pieceOrder (5)
▇ FTARP08-J thermocouple model number legend
▇ General
Model number FTARP08 series
Mounting form Flexible probe (Can be straight or bent, sheathed solid tube)
Accuracy K, E, J: ±0.4%|t|; PT100 A grade: ±(0.15℃+0.2%|t|); PT100 B grade: ±(0.3℃+0.5%|t|)
Work type Thermocouple: Ungrounded excpet 0.5mm diameter, can't assure 0.5mm diameter ungrounded
Thread size Can add fixed screw thread, like M6*1...
Probe material Standard is 321 stainless steel, can make to the following:
High temperature resistant: 2520, 3030, 3039
Anti-corrosion: 316L
High temperature resistant and anti-corrosion: GH3039
Probe diameter 0.5, 1, 1.5, 2, 3, 4, 5, 6, 8, 10mm, more bigger diameter more higher temperature resistant more response time and more operation life
Current: 3mm
Probe length 10-30000mm. Temperature measurement point: thermocouple:about 5mm from tip. RTD: about 5-20mm from tip. If with fixed screw, the length don't include screw thread length.
Current: 500mm
Cable material Metal screening; FEP silver plated copper, Silica gel; 2*4*0.6mm blue compensated fibreglass braided
Cable length Standard is K 1.5m, PT100 1m, can make 0.1-100m
Current: 2m
Matched accessory M12 mounting nut, M16 mounting nut
Insulating resistance 20MΩ min
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
▇ Thermal response time (Unit: s)
Probe diameterUngrounded thermocoupleGrounded thermocoupleRTD
Ф20.50.4---
Ф31.20.63
Ф42.50.85
Ф54.51.28
Ф66212
Ф88415
▇ FTARP08-J thermocouple child models
No Model Number Probe Material Probe Diameter Probe Length Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARP08-J-D1L50M1 321 stainless steel 1mm 50mm Metal screening 1m 1 US $5.82 Order
2 FTARP08-J-D1L100M1.5 321 stainless steel 1mm 100mm Metal screening 1.5m 1 US $5.82 Order
3 FTARP08-J-D1L200M1.5 321 stainless steel 1mm 200mm Metal screening 1.5m 1 US $6.32 Order
4 FTARP08-J-D1L500M1 321 stainless steel 1mm 500mm Metal screening 1m 1 US $7.07 Order
5 FTARP08-J-D1.5L50M2 321 stainless steel 1.5mm 50mm Metal screening 2m 1 US $5.32 Order Unfold
6 FTARP08-J-D1.5L100M1.5 321 stainless steel 1.5mm 100mm Metal screening 1.5m 1 US $5.32 Order
7 FTARP08-J-D1.5L100M2 321 stainless steel 1.5mm 100mm Metal screening 2m 1 US $5.32 Order
8 FTARP08-J-D1.5L150M2 321 stainless steel 1.5mm 150mm Metal screening 2m 1 US $5.32 Order
9 FTARP08-J-D1.5L200M1.5 321 stainless steel 1.5mm 200mm Metal screening 1.5m 1 US $5.32 Order
10 FTARP08-J-D1.5L200M2 321 stainless steel 1.5mm 200mm Metal screening 2m 1 US $5.32 Order
11 FTARP08-J-D1.5L250M1.5 321 stainless steel 1.5mm 250mm Metal screening 1.5m 1 US $5.32 Order
12 FTARP08-J-D1.5L300M2 321 stainless steel 1.5mm 300mm Metal screening 2m 1 US $5.32 Order
13 FTARP08-J-D1.5L350M2 321 stainless steel 1.5mm 350mm Metal screening 2m 1 US $5.32 Order
14 FTARP08-J-D1.5L400M2 321 stainless steel 1.5mm 400mm Metal screening 2m 1 US $5.32 Order
15 FTARP08-J-D1.5L500M2 321 stainless steel 1.5mm 500mm Metal screening 2m 1 US $5.89 Order
16 FTARP08-J-D1.5L550M1.5 321 stainless steel 1.5mm 550mm Metal screening 1.5m 1 US $5.89 Order
17 FTARP08-J-D1.5L60M0.3 321 stainless steel 1.5mm 60mm Metal screening 0.3m 1 US $5.32 Order
18 FTARP08-J-D2L50M2 321 stainless steel 2mm 50mm Metal screening 2m 1 US $5.32 Order
19 FTARP08-J-D2L50PM2 321 stainless steel 2mm 50mm PTFE multi strand metal screening 2m 1 US $7 Order
20 FTARP08-J-D2L100M1.5 321 stainless steel 2mm 100mm Metal screening 1.5m 1 US $5.32 Order
21 FTARP08-J-D2L150M2 321 stainless steel 2mm 150mm Metal screening 2m 1 US $6.07 Order
22 FTARP08-J-D2L200M1.5 321 stainless steel 2mm 200mm Metal screening 1.5m 1 US $5.32 Order
23 FTARP08-J-D2L1000M3 321 stainless steel 2mm 1000mm Metal screening 3m 1 US $9.57 Order
24 FTARP08-J-D3L100M1 321 stainless steel 3mm 100mm Metal screening 1m 1 US $5.32 Order
25 FTARP08-J-D3L100M1.5 321 stainless steel 3mm 100mm Metal screening 1.5m 1 US $5.32 Order
26 FTARP08-J-D3L100M2 321 stainless steel 3mm 100mm Metal screening 2m 1 US $5.32 Order
27 FTARP08-J-D3L150M5P 321 stainless steel 3mm 150mm Metal screening 5m with plug 1 US $7.07 Order
28 FTARP08-J-D3L150M5BP 321 stainless steel 3mm 150mm Metal screening 5m with big plug 1 US $7.82 Order
29 FTARP08-J-D3L500M2 321 stainless steel 3mm 500mm Metal screening 2m 1 US $5.68 Visiting...
30 FTARP08-J-D3L60M3 321 stainless steel 3mm 60mm Metal screening 3m 1 US $6.65 Order
31 FTARP08-J-D4L100M3 321 stainless steel 4mm 100mm Metal screening 3m 1 US $6.65 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.12kg
Package size: 10 x 10 x 6 cm
