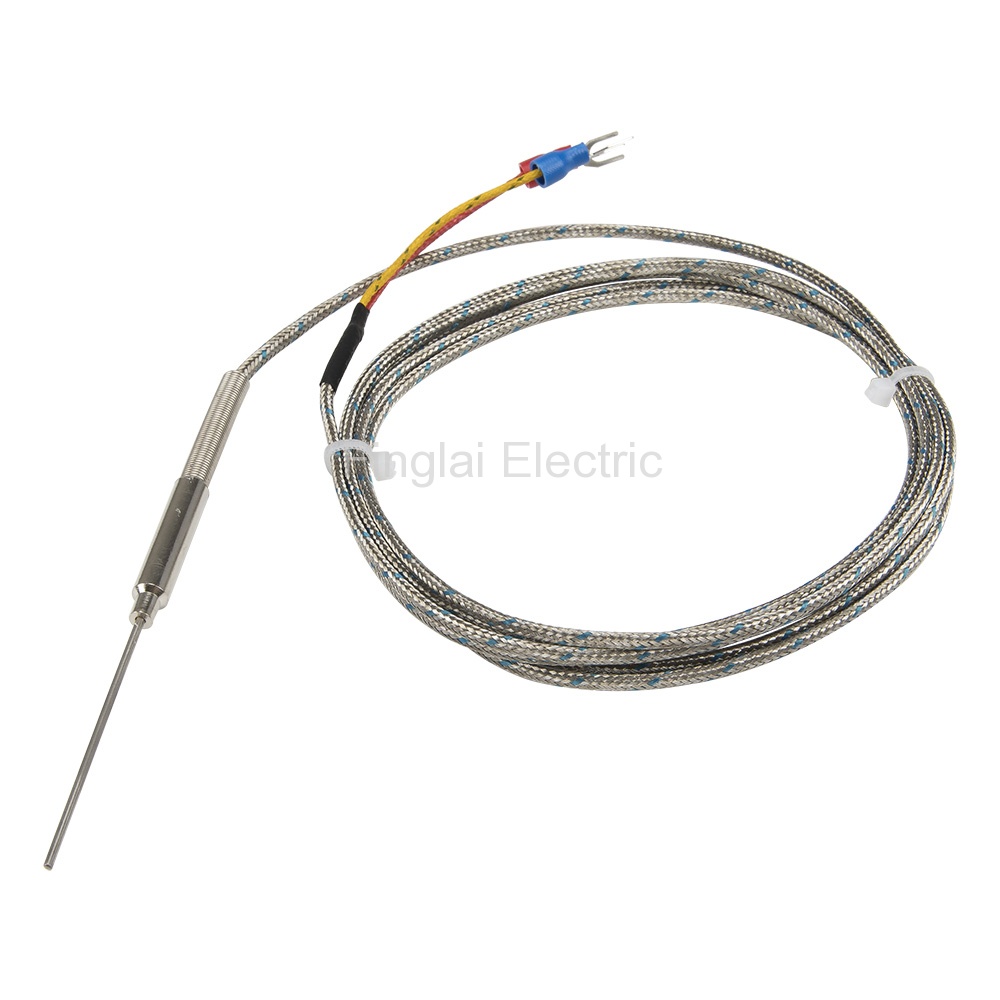

FTARP08 J type 1.5*50mm 321 stainless steel flexible probe 2m metal screening cable sheathed thermocouple temperature sensor
Product features
Mouse over to zoom in
FTARP08 J type 1.5*50mm 321 stainless steel flexible probe 2m metal screening cable sheathed thermocouple temperature sensor
Price: US $5.32 / piece
Model number: FTARP08-J-D1.5L50M2
Product name: Thermocouple
Probe material:
321 stainless steelProbe length:
50mmUS $5.32100mm
US $5.32150mm200mm
US $5.32250mm300mm
US $5.32350mm
US $5.32400mm
US $5.32500mm
US $5.891000mm60mm
Cabel material:
Metal screeningDeliver to:
Shipping:
US $4.6via
Estimated Delivery Time: 9-15 days
Total price:US $9.92
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model number | Type | Measuring range | Online store: |
FTARP08-K | K | 0-600 ℃ | US $3.3 - 44.02/ pieceOrder (80) |
FTARP08-E | E | 0-400 ℃ | US $3.74/ pieceOrder (1) |
FTARP08-J | J | 0-400 ℃ | Visiting... |
FTARP08-T | T | -200-350 ℃ | US $6.07 - 6.65/ pieceOrder (3) |
FTARP08-N | N | 0-600 ℃ | US $6.07/ pieceOrder (1) |
FTARP08-PT100 | PT100 | Metal, PEP cable: -50-200℃ Silica gel cable: -50-180℃ | US $6.15 - 11.61/ pieceOrder (129) |
FTARP08-PT1000 | PT1000 | Metal, PEP cable: -50-200℃ Silica gel cable: -50-180℃ | US $8.24/ pieceOrder (1) |
▇ FTARP08-J thermocouple model number legend
FTARP08-J
Parent Model Number
L50
Probe length
▇ General
Model number | FTARP08 series |
Mounting form | Flexible probe (Can be straight or bent, sheathed solid tube) |
Accuracy | K, E, J: ±0.4%|t|; PT100 A grade: ±(0.15℃+0.2%|t|); PT100 B grade: ±(0.3℃+0.5%|t|) |
Work type | Thermocouple: Ungrounded excpet 0.5mm diameter, can't assure 0.5mm diameter ungrounded |
Probe material | Standard is 321 stainless steel, can make to the following: High temperature resistant: 2520, 3030, 3039 Anti-corrosion: 316L High temperature resistant and anti-corrosion: GH3039 |
Probe diameter | 0.5, 1, 1.5, 2, 3, 4, 5, 6, 8, 10mm, more bigger diameter more higher temperature resistant more response time and more operation life Current: 1.5mm |
Probe length | 10-30000mm. Temperature measurement point: thermocouple:about 5mm from tip. RTD: about 5-20mm from tip Current: 50mm |
Cable material | Metal screening; FEP silver plated copper, Silica gel; 2*4*0.6mm blue compensated fibreglass braided |
Cable length | Standard is K 1.5m, PT100 1m, can make 0.1-100m Current: 2m |
Matched accessory | M12 mounting nut, M16 mounting nut |
Insulating resistance | 20MΩ min |
Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ Thermal response time (Unit: s)
Probe diameter | Ungrounded thermocouple | Grounded thermocouple | RTD |
Ф2 | 0.5 | 0.4 | --- |
Ф3 | 1.2 | 0.6 | 3 |
Ф4 | 2.5 | 0.8 | 5 |
Ф5 | 4.5 | 1.2 | 8 |
Ф6 | 6 | 2 | 12 |
Ф8 | 8 | 4 | 15 |
▇ FTARP08-J thermocouple child models
No | Model Number | Probe Material | Probe Diameter | Probe Length | Cabel Material | Cable Length | MOQ | Unit Price | Related Product |
1 | FTARP08-J-D1L50M1 | 321 stainless steel | 1mm | 50mm | Metal screening | 1m | 1 | US $5.82 | Order |
2 | FTARP08-J-D1L100M1.5 | 321 stainless steel | 1mm | 100mm | Metal screening | 1.5m | 1 | US $5.82 | Order |
3 | FTARP08-J-D1L200M1.5 | 321 stainless steel | 1mm | 200mm | Metal screening | 1.5m | 1 | US $6.32 | Order |
4 | FTARP08-J-D1L500M1 | 321 stainless steel | 1mm | 500mm | Metal screening | 1m | 1 | US $7.07 | Order |
5 | FTARP08-J-D1.5L50M2 | 321 stainless steel | 1.5mm | 50mm | Metal screening | 2m | 1 | US $5.32 | Visiting... Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 0.08kg
Package size: 10 x 10 x 4 cm
