Products >> Instruments >> Temperature sensors >> FTARP06 >> FTARP06-K >> FTARP06-K-W2T200L100
<
◄ FTARP06-K-W2T180L80 K thermocouple temperature sensor
FTARP06-K-W2T250L150 K thermocouple temperature sensor ►

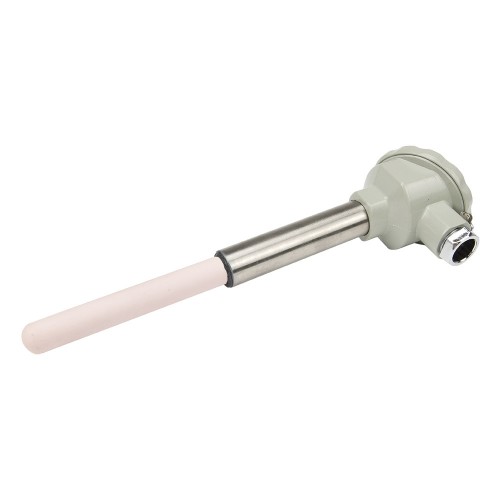

FTARP06 K type 200mm total 100mm insert probe length box connection thermocouple temperature sensor

Product features
Mouse over to zoom in
FTARP06 K type 200mm total 100mm insert probe length box connection thermocouple temperature sensor
Price: US $7.05 / piece
Model number: FTARP06-K-W2T200L100
Product name: Thermocouple
Deliver to:
Shipping:
US $11.48via
Estimated Delivery Time: 9-15 days
Quantity:
Total price:US $18.53
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberSame modelTypeMeasuring rangeRemarkOnline store:
FTARP06-KWRN-122, WRN-132K0-1300 ℃100mm or 150mm stainless steel tube, decided by total probe lengthVisiting...
FTARP06-SWRP-130S0-1600 ℃150mm stainless steel tubeUS $140.74 - 389.76/ pieceOrder (11)
FTARP06-BWRR-130B0-1800 ℃150mm stainless steel tubeUS $203.78 - 675.41/ pieceOrder (2)
▇ FTARP06-K thermocouple model number legend
▇ General
Model number FTARP06
Mounting form Stainless steel and corundum probe
Connection form Connection box
Accuracy S: 0.25%|t| K: 0.75%|t|
Sensor wire diameter K: 2mm; S: long term termperature is about 1300℃: 0.3mm, 1600℃: 0.5mm; Can be customized.
Current: 2mm
Probe material 201 stainless steel and 95 corundum
Probe diameter Stainless steel tube: Φ22, corundum tube: Φ16
Stainless steel tube length 50, 100, 150mm, can be customized
Total probe length 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 700, 800, 900, 1000mm, can be customized
Current: 200mm
Thermal response time <150s
Insulating resistance 5MΩ at 20 ℃
▇ FTARP06-K thermocouple child models
No Model Number Type Sensor Wire Diameter Total Probe Length Insert Length MOQ Unit Price Related Product
1 FTARP06-K-W2T180L80 No fixed device 2mm 180mm 80mm 1 US $6.83 Order
2 FTARP06-K-W2T200L100 No fixed device 2mm 200mm 100mm 1 US $7.05 Visiting...
3 FTARP06-K-W2T250L150 No fixed device 2mm 250mm 150mm 1 US $7.05 Order
4 FTARP06-K-W2T300L200 No fixed device 2mm 300mm 200mm 1 US $7.05 Order
5 FTARP06-K-W2T350L250 No fixed device 2mm 350mm 250mm 1 US $7.5 Order Unfold
6 FTARP06-K-W2T400L300 No fixed device 2mm 400mm 300mm 1 US $8.18 Order
7 FTARP06-K-W2T450L150 No fixed device 2mm 450mm 150mm 1 US $10.42 Order
8 FTARP06-K-W2T450L350 No fixed device 2mm 450mm 350mm 1 US $8.4 Order
9 FTARP06-K-W2T500L400 No fixed device 2mm 500mm 400mm 1 US $9.52 Order
10 FTARP06-K-W2T550L400 No fixed device 2mm 550mm 400mm 1 US $15.55 Order
11 FTARP06-K-W2T600L450 No fixed device 2mm 600mm 450mm 1 US $16.22 Order
12 FTARP06-K-W2T700L550 No fixed device 2mm 700mm 550mm 1 US $17.34 Order
13 FTARP06-K-W2T800L650 No fixed device 2mm 800mm 650mm 1 US $18.02 Order
14 FTARP06-K-W2T900L750 No fixed device 2mm 900mm 750mm 1 US $18.91 Order
15 FTARP06-K-W2T1000L850 No fixed device 2mm 1000mm 850mm 1 US $20.04 Order
16 FTARP06-K-M27P2W2T55L30 M27*2mm thread fix 2mm 55mm 30mm 1 US $9.33 Order
17 FTARP06-K-M27P2W2T150L100 M27*2mm thread fix 2mm 150mm 100mm 1 US $8.85 Order
18 FTARP06-K-M27P2W2T200L100 M27*2mm thread fix 2mm 200mm 100mm 1 US $8.85 Order
19 FTARP06-K-M27P2W2T200LE100 M27*2mm thread fix 2mm 200mm 100mm (Excluding thread length) 1 US $8.85 Order
20 FTARP06-K-M27P2W2T250L100 M27*2mm thread fix 2mm 250mm 100mm 1 US $8.85 Order
21 FTARP06-K-M27P2W2T300L150 M27*2mm thread fix 2mm 300mm 150mm 1 US $8.85 Order
22 FTARP06-K-M27P2W2T350L200 M27*2mm thread fix 2mm 350mm 200mm 1 US $9.52 Order
23 FTARP06-K-M27P2W2T400L250 M27*2mm thread fix 2mm 400mm 250mm 1 US $9.97 Order
24 FTARP06-K-M27P2W2T450L300 M27*2mm thread fix 2mm 450mm 300mm 1 US $10.65 Order
25 FTARP06-K-M27P2W2T500L350 M27*2mm thread fix 2mm 500mm 350mm 1 US $11.32 Order
26 FTARP06-K-M27P2W2T500L400 M27*2mm thread fix 2mm 500mm 400mm 1 US $11.32 Order
27 FTARP06-K-M27P2W2T550L400 M27*2mm thread fix 2mm 550mm 400mm 1 US $17.79 Order
28 FTARP06-K-M27P2W2T600L450 M27*2mm thread fix 2mm 600mm 450mm 1 US $18.47 Order
29 FTARP06-K-M27P2W2T650L500 M27*2mm thread fix 2mm 650mm 500mm 1 US $19.14 Order
30 FTARP06-K-M27P2W2T700L550 M27*2mm thread fix 2mm 700mm 550mm 1 US $19.81 Order
31 FTARP06-K-M27P2W2T750L600 M27*2mm thread fix 2mm 750mm 600mm 1 US $22.73 Order
32 FTARP06-K-M27P2W2T800L650 M27*2mm thread fix 2mm 800mm 650mm 1 US $23.41 Order
33 FTARP06-K-M27P2W2T900L750 M27*2mm thread fix 2mm 900mm 750mm 1 US $25.88 Order
34 FTARP06-K-M27P2W2T1000L850 M27*2mm thread fix 2mm 1000mm 850mm 1 US $29.02 Order
FTARP06 series probe head armor connection thermocouple temperature sensor drawing
Packaging Details
Product quantity: 1pc
Package weight: 0.5kg
Package size: 30 x 12 x 11 cm
