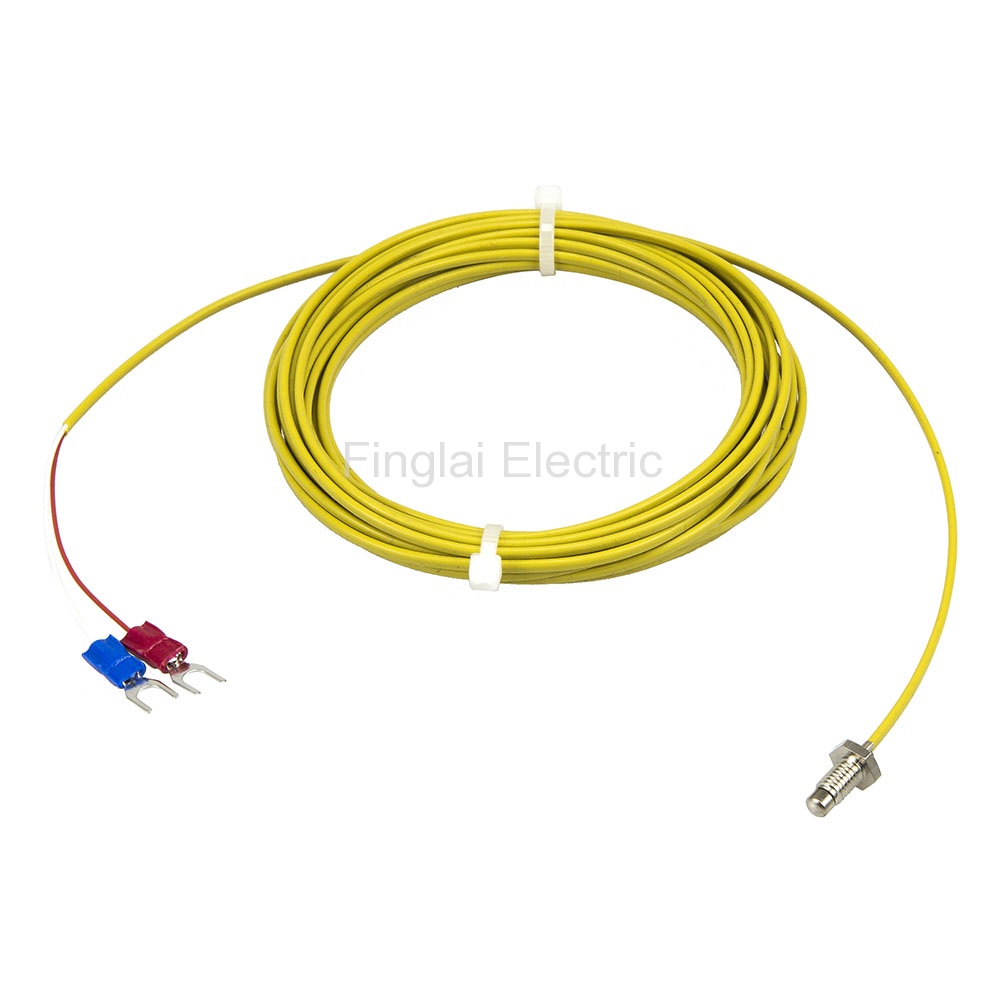

FTARB04 J type M5 bolt head 5m PTFE cable thermocouple screw temperature sensor

Product features
Mouse over to zoom in
FTARB04 J type M5 bolt head 5m PTFE cable thermocouple screw temperature sensor
Price: US $3.19 / piece
Model number: FTARB04-J-M5P5
Product name: Temperature sensors
Thread size:
M5
Cabel material:
Plastic
Cable length:
1m
US $1.84
2m
US $2.18
3m
US $2.52
5m
US $3.19
Deliver to:
Shipping:
US $5.75via
Estimated Delivery Time: 12-24 days
quantity:



Total price:US $8.94
Buy Now
Add to Cart
Inquire
Payment:
PayPalWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberTypeMeasuring rangeOnline store:
FTARB04-KK0-260 ℃US $1.84 - 3.19/ pieceOrder (4)
FTARB04-JJ0-260 ℃Visiting...
FTARB04-J temperature sensors model number legend
FTARB04-J


Parent Model Number
-M5


Thread size


-M5: M5
P


Cabel material


P: Plastic
5


Cable length


1: 1m


2: 2m


3: 3m


5: 5m
General
Model number FTARB04 series
Mounting form Bolt
Connection form Grounded
Accuracy K, J: ±0.75%t
Thread size M5
Current: M5
Cable material PTFE
Cable length Customer can select 1, 2, 3, 5m or specify the cable length
Current: 5m
Thermal response time <0.5s
Insulating resistance 5MΩ min at 20℃, RH<80%
Purpose Special for 3D printer
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
FTARB04-J temperature sensors child models
No Model Number Thread Size Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARB04-J-M5P1 M5 Plastic 1m 1 US $1.84 Order
2 FTARB04-J-M5P2 M5 Plastic 2m 1 US $2.18 Order
3 FTARB04-J-M5P3 M5 Plastic 3m 1 US $2.52 Order
4 FTARB04-J-M5P5 M5 Plastic 5m 1 US $3.19 Visiting...
Packaging Details
Package weight: 0.08kg
Package size: 10 x 10 x 4 cm
Product quantity: 1pcs
