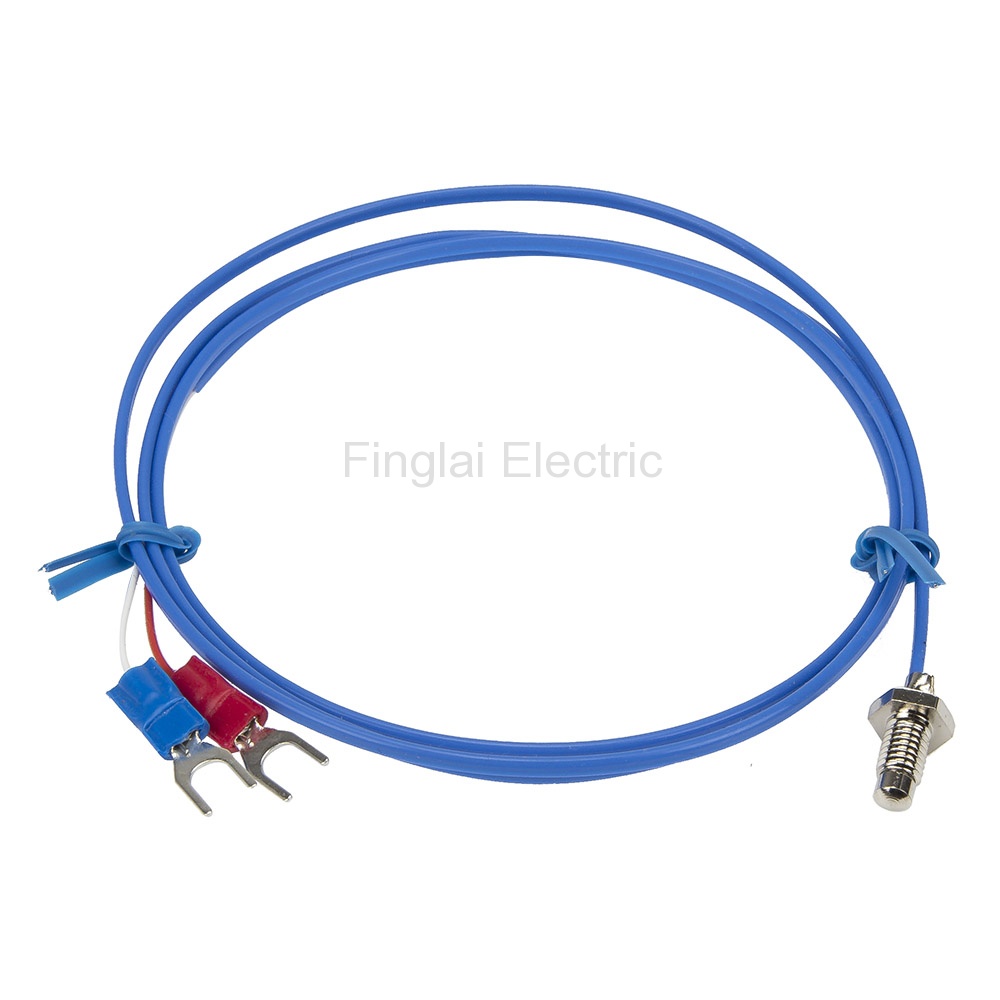

FTARB04-K series bolt thermocouple temperature sensors
Main child models
Mouse over to zoom in
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Online store: |
| FTARB04-K | K | 0-260 ℃ | Visiting... |
| FTARB04-J | J | 0-260 ℃ | US $1.84 - 3.19/ pieceOrder (4) |
▇ FTARB04-K thermocouple model number legend
FTARB04-K
Parent Model Number
▇ General
| Model number | FTARB04 series |
| Mounting form | Bolt |
| Connection form | Grounded |
| Accuracy | K, J: ±0.75%t |
| Thread size | M5 |
| Cable material | PTFE |
| Cable length | Customer can select 1, 2, 3, 5m or specify the cable length |
| Thermal response time | <0.5s |
| Insulating resistance | 5MΩ min at 20℃, RH<80% |
| Purpose | Special for 3D printer |
| Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ FTARB04-K thermocouple child models
| No | Model Number | Thread Size | Cabel Material | Cable Length | MOQ | Unit Price |
| 1 | FTARB04-K-M5P1 | M5 | Plastic | 1m | 1 | US $1.84 |
| 2 | FTARB04-K-M5P2 | M5 | Plastic | 2m | 1 | US $2.18 |
| 3 | FTARB04-K-M5P3 | M5 | Plastic | 3m | 1 | US $2.52 |
| 4 | FTARB04-K-M5P5 | M5 | Plastic | 5m | 1 | US $3.19 |
