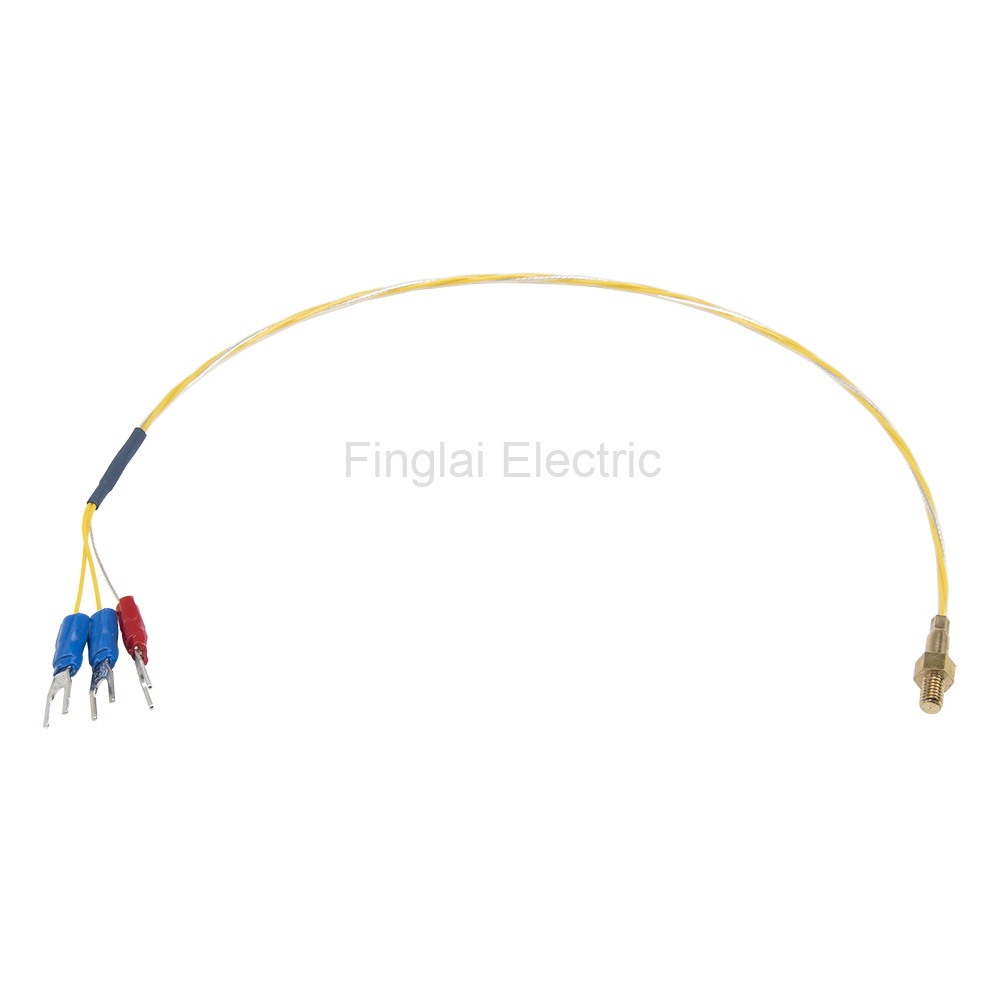

FTARB03 PT1000 type M4 6mm across flats bolt head 0.3m FEP cable screw RTD temperature sensor
2 sold
Product features
Mouse over to zoom in
FTARB03 PT1000 type M4 6mm across flats bolt head 0.3m FEP cable screw RTD temperature sensor
Price: US $5.09 / piece
Model number: FTARB03-PT1000-M4E6P0.3
Product name: Temperature sensors
Bolt Hexagon external dimension:
6*6.8mmCabel material:
FEP plasticCable length:
0.3mDeliver to:
Shipping:
US $5.52via
Estimated Delivery Time: 9-17 days
Total price:US $10.61
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Online store: |
| FTARB03-K | K | FEP plastic cable: 0-200℃; Metal screening cable: 0-600℃; | US $1.62 - 3.75/ pieceOrder (44) |
| FTARB03-PT100 | PT100 | Metal screening cable: -50-450 ℃ | US $5.09/ pieceOrder (2) |
| FTARB03-PT1000 | PT1000 | -50-200 ℃ | Visiting... |
▇ FTARB03-PT1000 temperature sensor model number legend
FTARB03-PT1000
Parent Model Number
▇ General
| Model number | FTARB03 series |
| Mounting form | Bolt |
| Accuracy | K: ±0.75%t; PT100, PT1000: ±(0.6℃+1%|t|), ±(0.3℃+0.5%|t|), ±(0.15℃+0.2%|t|) |
| Work type | K: Grounded: 4mm screw thread length; K Ungrounded and PT1000: 6mm screw thread length |
| Thread size | M3; M4*0.75 Current: M4 |
| Cable material | FEP plastic; Metal screening |
| Cable length | Standard is 1m, customer can select 0.12, 0.5, 1.1, 1.5 , 2, 3m or specify the cable length Current: 0.3m |
| Thermal response time | <0.5s |
| Insulating resistance | 5MΩ min at 20℃, RH<80% |
| Purpose | Special for 3D printer |
| Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ FTARB03-PT1000 temperature sensor child models
| No | Model Number | Thread Size | Bolt Hexagon External Dimension | Cabel Material | Cable Length | MOQ | Unit Price | Related Product |
| 1 | FTARB03-PT1000-M3E6P0.3 | M3 | 6*6.8mm | FEP plastic | 0.3m | 1 | US $5.09 | Order |
| 2 | FTARB03-PT1000-M4E6P0.3 | M4 | 6*6.8mm | FEP plastic | 0.3m | 1 | US $5.09 | Visiting... |
Packaging Details
Product quantity: 1pc
Package weight: 0.04kg
Package size: 10 x 10 x 2 cm
