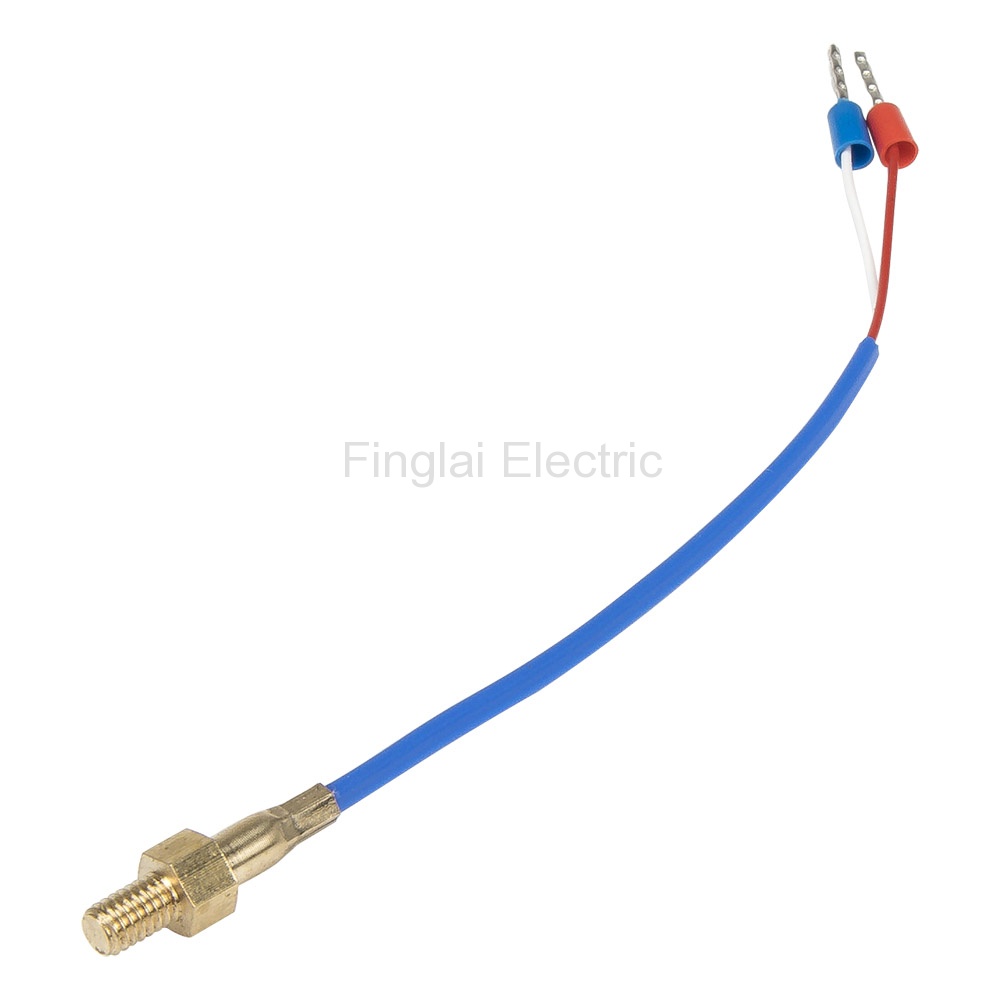

FTARB03 K type M4 6mm across flats bolt head 0.12m FEP cable 3D printer ungrounded thermocouple screw temperature sensor

Product features
Mouse over to zoom in
FTARB03 K type M4 6mm across flats bolt head 0.12m FEP cable 3D printer ungrounded thermocouple screw temperature sensor
Price: US $1.96 / piece
Model number: FTARB03-K-UM4E6P0.12
Product name: 3D printer thermocouple
Work type:
Grounded
US $1.62
Ungrounded
US $1.96
Thread size:
M3
US $1.96
M4
US $1.96
Bolt Hexagon external dimension:
6*6.8mm
US $1.96
7*7.8mm8*9mm
Cabel material:
FEP plastic
US $1.96
Metal screening
Deliver to:
Shipping:
US $4.1via
Estimated Delivery Time: 9-15 days
Quantity:



Total price:US $6.06
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberTypeMeasuring rangeOnline store:
FTARB03-KKFEP plastic cable: 0-200℃;
Metal screening cable: 0-600℃;
Visiting...
FTARB03-PT1000PT1000-50-200 ℃US $5.09/ pieceOrder (2)
FTARB03-K 3D printer thermocouple model number legend
FTARB03-K


Parent Model Number
M4


Thread size
E6


Bolt Hexagon external dimension
General
Model number FTARB03 series
Mounting form Bolt
Accuracy K: ±0.75%t; PT1000: ±(0.6℃+1%|t|), ±(0.3℃+0.5%|t|), ±(0.15℃+0.2%|t|)
Work type K: Grounded: 4mm screw thread length; K Ungrounded and PT1000: 6mm screw thread length
Thread size M3; M4*0.75
Current: M4
Cable material FEP plastic; Metal screening
Cable length Standard is 1m, customer can select 0.12, 0.5, 1.1, 1.5 , 2, 3m or specify the cable length
Current: 0.12m
Thermal response time <0.5s
Insulating resistance 5MΩ min at 20℃, RH<80%
Purpose Special for 3D printer
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
FTARB03-K 3D printer thermocouple child models
No Model Number Work Type Thread Size Bolt Hexagon External Dimension Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARB03-K-M3E6P0.12 Grounded M3 6*6.8mm FEP plastic 0.12m 1 US $1.62 Order
2 FTARB03-K-M3E6P0.5 Grounded M3 6*6.8mm FEP plastic 0.5m 1 US $2.07 Order
3 FTARB03-K-M3E6P1 Grounded M3 6*6.8mm FEP plastic 1m 1 US $2.52 Order
4 FTARB03-K-M3E6P1.1 Grounded M3 6*6.8mm FEP plastic 1.1m 1 US $3.19 Order
5 FTARB03-K-M3E6P1.5 Grounded M3 6*6.8mm FEP plastic 1.5m 1 US $2.74 Order Unfold
6 FTARB03-K-M3E6P2 Grounded M3 6*6.8mm FEP plastic 2m 1 US $2.97 Order
7 FTARB03-K-M3E6P3 Grounded M3 6*6.8mm FEP plastic 3m 1 US $3.42 Order
8 FTARB03-K-M3E8P0.12 Grounded M3 8*9mm FEP plastic 0.12m 1 US $1.62 Order
9 FTARB03-K-M3E8P0.5 Grounded M3 8*9mm FEP plastic 0.5m 1 US $2.07 Order
10 FTARB03-K-M3E8P1 Grounded M3 8*9mm FEP plastic 1m 1 US $2.52 Order
11 FTARB03-K-M3E8P1.1 Grounded M3 8*9mm FEP plastic 1.1m 1 US $3.19 Order
12 FTARB03-K-M3E8P1.5 Grounded M3 8*9mm FEP plastic 1.5m 1 US $2.74 Order
13 FTARB03-K-M3E8P2 Grounded M3 8*9mm FEP plastic 2m 1 US $2.97 Order
14 FTARB03-K-M3E8P3 Grounded M3 8*9mm FEP plastic 3m 1 US $3.42 Order
15 FTARB03-K-M4E6P0.12 Grounded M4 6*6.8mm FEP plastic 0.12m 1 US $1.62 Order
16 FTARB03-K-M4E6P0.5 Grounded M4 6*6.8mm FEP plastic 0.5m 1 US $2.07 Order
17 FTARB03-K-M4E6P1 Grounded M4 6*6.8mm FEP plastic 1m 1 US $2.52 Order
18 FTARB03-K-M4E6P1.1 Grounded M4 6*6.8mm FEP plastic 1.1m 1 US $2.74 Order
19 FTARB03-K-M4E6P1.5 Grounded M4 6*6.8mm FEP plastic 1.5m 1 US $2.74 Order
20 FTARB03-K-M4E6P2 Grounded M4 6*6.8mm FEP plastic 2m 1 US $2.97 Order
21 FTARB03-K-M4E6P3 Grounded M4 6*6.8mm FEP plastic 3m 1 US $3.42 Order
22 FTARB03-K-M4E7P0.12 Grounded M4 7*7.8mm FEP plastic 0.12m 1 US $1.62 Order
23 FTARB03-K-M4E7P0.5 Grounded M4 7*7.8mm FEP plastic 0.5m 1 US $2.07 Order
24 FTARB03-K-M4E7P1 Grounded M4 7*7.8mm FEP plastic 1m 1 US $2.52 Order
25 FTARB03-K-M4E7P1.5 Grounded M4 7*7.8mm FEP plastic 1.5m 1 US $2.74 Order
26 FTARB03-K-M4E7P2 Grounded M4 7*7.8mm FEP plastic 2m 1 US $2.97 Order
27 FTARB03-K-M4E7P3 Grounded M4 7*7.8mm FEP plastic 3m 1 US $3.42 Order
28 FTARB03-K-M4E8P0.12 Grounded M4 8*9mm FEP plastic 0.12m 1 US $1.62 Order
29 FTARB03-K-M4E8P0.5 Grounded M4 8*9mm FEP plastic 0.5m 1 US $2.07 Order
30 FTARB03-K-M4E8P1 Grounded M4 8*9mm FEP plastic 1m 1 US $2.52 Order
31 FTARB03-K-M4E8P1.1 Grounded M4 8*9mm FEP plastic 1.1m 1 US $2.74 Order
32 FTARB03-K-M4E8P1.5 Grounded M4 8*9mm FEP plastic 1.5m 1 US $2.74 Order
33 FTARB03-K-M4E8P2 Grounded M4 8*9mm FEP plastic 2m 1 US $2.97 Order
34 FTARB03-K-M4E8P3 Grounded M4 8*9mm FEP plastic 3m 1 US $3.42 Order
35 FTARB03-K-UM3E6P0.12 Ungrounded M3 6*6.8mm FEP plastic 0.12m 1 US $1.96 Order
36 FTARB03-K-UM3E6P0.6 Ungrounded M3 6*6.8mm FEP plastic 0.6m 1 US $2.79 Order
37 FTARB03-K-UM3E6P1 Ungrounded M3 6*6.8mm FEP plastic 1m 1 US $3.29 Order
38 FTARB03-K-UM3E6P3 Ungrounded M3 6*6.8mm FEP plastic 3m 1 US $3.75 Order
39 FTARB03-K-UM4E6P0.12 Ungrounded M4 6*6.8mm FEP plastic 0.12m 1 US $1.96 Visiting...
40 FTARB03-K-UM4E6P0.6 Ungrounded M4 6*6.8mm FEP plastic 0.6m 1 US $2.79 Order
41 FTARB03-K-UM4E6P1 Ungrounded M4 6*6.8mm FEP plastic 1m 1 US $3.29 Order
42 FTARB03-K-UM4E6P3 Ungrounded M4 6*6.8mm FEP plastic 3m 1 US $3.75 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.04kg
Package size: 10 x 10 x 2 cm
