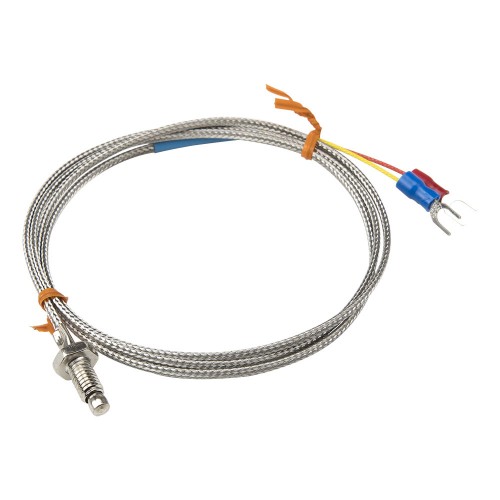

FTARB01-J series J bolt thermocouple temperature sensors
Main child models
Mouse over to zoom in
Price: US $2.14 / piece
Model number: FTARB01-J-M6M1
Product name: Thermocouple
Product description
▇ Model number and parameters
| Model number | Same model | Type | Measuring range | Online store: |
| FTARB01-K | WRNT | K | 0-600 ℃ | US $0.65 - 5.69/ pieceOrder (28) |
| FTARB01-E | WRET | E | 0-400 ℃ | US $0.65 - 3.13/ pieceOrder (23) |
| FTARB01-J | J | 0-400 ℃ | Visiting... | |
| FTARB01-PT100 | WZPT | PT100 | -50-200 ℃ | US $3.91 - 8.91/ pieceOrder (13) |
▇ FTARB01-J thermocouple model number legend
FTARB01-J
Parent Model Number
Thread size
-M6: M6
Cabel material
M: Metal screening
Cable length
1: 1m
2: 2m
3: 3m
4: 4m
5: 5m
0.3: 0.3m
▇ General
| Model number | FTARB01 series |
| Mounting form | Bolt |
| Accuracy | K, E, J: ±0.75%t; PT100 A grade: ±(0.15℃+0.2%|t|); PT100 B grade: ±(0.3℃+0.5%|t|) |
| Work type | Thermocouple: Grounded |
| Thread size | M6*1. Can make M8*1.25, M10*1.5, M12 |
| Cable material | K, E: metal screening, fibreglass braided; PT100, J: metal screening |
| Cable length | Standard is 2m, customer can select 1, 3 ,5 ,10m or specify the cable length |
| Thermal response time | Thermocouple: <0.5s; RTD: <12s |
| Insulating resistance | 5MΩ min at 20℃, RH<80% |
| Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ FTARB01-J thermocouple child models
| No | Model Number | Thread Size | Cabel Material | Cable Length | MOQ | Unit Price |
| 1 | FTARB01-J-M6M1 | M6 | Metal screening | 1m | 1 | US $2.14 |
| 2 | FTARB01-J-M6M2 | M6 | Metal screening | 2m | 1 | US $2.36 |
| 3 | FTARB01-J-M6M0.3 | M6 | Metal screening | 0.3m | 1 | US $1.5 |
