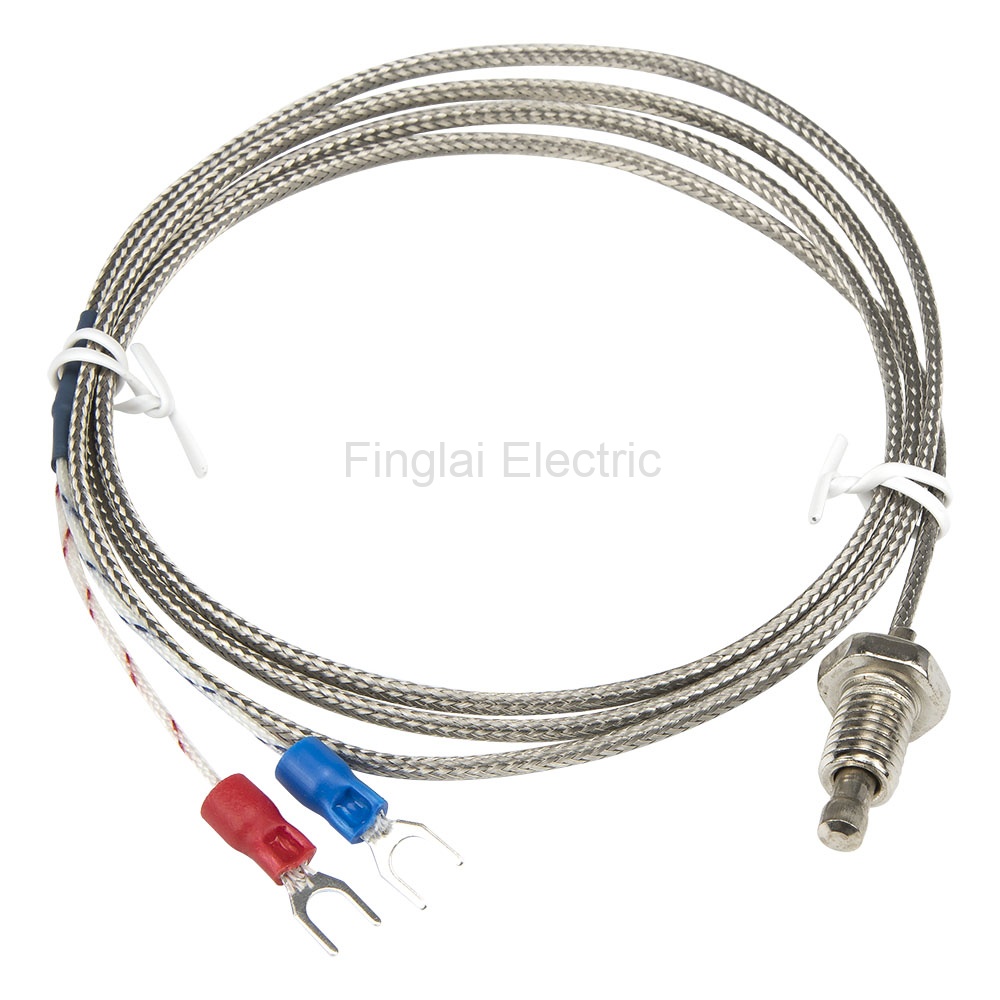

FTARB01 J type M8 screw thread bolt 1m metal screening cable thermocouple temperature sensor
Product features
Price: US $1.68 / piece
Model number: FTARB01-J-M8M1
Product name: Thermocouple
Cabel material:
Metal screening
Deliver to:
Shipping:
US $16.07via
Estimated Delivery Time: 12-17 days
Total price:US $17.75
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
▇ FTARB01-J thermocouple model number legend
▇ General
| Model number |
FTARB01 series |
| Mounting form |
Bolt |
| Accuracy |
K, E, J: ±0.75%t; PT100 A grade: ±(0.15℃+0.2%|t|); PT100 B grade: ±(0.3℃+0.5%|t|) |
| Work type |
Thermocouple: Grounded |
| Thread size |
M6*1. Can make M8*1.25, M10*1.5, M12
Current: M8 |
| Cable material |
K, E: metal screening, fibreglass braided; PT100, J: metal screening |
| Cable length |
Standard is 2m, customer can select 1, 3 ,5 ,10m or specify the cable length
Current: 1m |
| Thermal response time |
Thermocouple: <0.5s; RTD: <12s |
| Insulating resistance |
5MΩ min at 20℃, RH<80% |
| Technical article |
PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ FTARB01-J thermocouple child models
| No |
Model Number |
Thread Size |
Cabel Material |
Cable Length |
MOQ |
Unit Price |
Related Product |
| 1 |
FTARB01-J-M6M1 |
M6 |
Metal screening |
1m |
1 |
US $1.04 |
Order |
| 2 |
FTARB01-J-M6M2 |
M6 |
Metal screening |
2m |
1 |
US $2.13 |
Order |
| 3 |
FTARB01-J-M6M0.3 |
M6 |
Metal screening |
0.3m |
1 |
US $1.04 |
Order |
| 4 |
FTARB01-J-M8M1 |
M8 |
Metal screening |
1m |
1 |
US $1.68 |
Visiting... |
Packaging Details
Product quantity: 1pc
Package weight: 0.04kg
Package size: 10 x 10 x 2 cm
