BHT-2 heat shrink butt wire connector terminal 16-14 AWG 1.5-2.5 mm2 splice butt heat shrink tube joint crimp terminal
Product features
Mouse over to zoom in

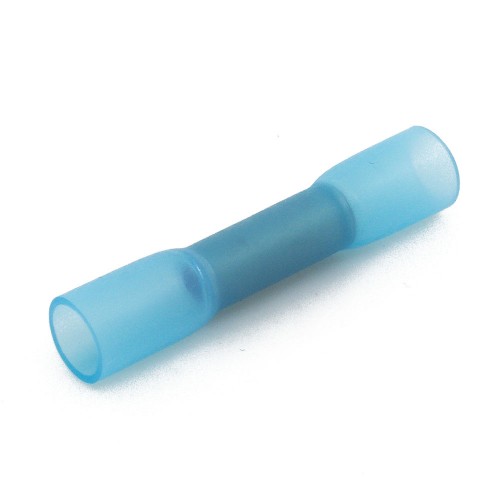

BHT-2 heat shrink butt wire connector terminal 16-14 AWG 1.5-2.5 mm2 splice butt heat shrink tube joint crimp terminal
Price: US $0.05 / piece
Model number: BHT-2
Product name: Heat shrinkable terminal
Deliver to:
Shipping:
US $11.59via
Estimated Delivery Time: 9-17 days
Total price:US $16.59
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters (Unit: mm)
| Model number | A.W.G | A.W.G (mm2) | B | L2 | A | L1 | Color | Online store:
|
| BHT-0.5 | 26-24 | 0.25-0.5 | 1.3 | 12 | 3.2 | 28 | Yellow | US $0.04/ pieceOrder |
| BHT-1.25 | 22-16 | 0.5-1.5 | 1.9 | 15 | 4.8 | 38 | Red | US $0.04/ pieceOrder |
| BHT-2 | 16-14 | 1.5-2.5 | 2.4 | 15 | 5.8 | 38 | Blue | Visiting... |
| BHT-5.5 | 12-10 | 4.0-6.0 | 3.6 | 15 | 6.8 | 42 | Yellow | US $0.06/ pieceOrder |
▇ General
| Model number |
BHT series |
| Shrink ratio |
3:1 |
| Operating temperature |
-55℃ to 125℃ |
| Min full shrinkable temperature |
180℃ |
| Start shrinkable temperature |
80℃ |
| IP Rating |
IP67 |
| Conpliance |
RoHS |
| Pcs/bag |
500 |
| Usage method |
|
| 1. Prepare the terminal and wires, peel off the wires sheath for about 10mm. | |
| 2. Insert the wire into the terminal. | |
| 3. Insert the other wire into the terminal's other side. | |
| 4. Clamp the middle with a crimping plier， keep the copper wire and the clamp in close contact. | |
| 5. After pressing, use a lighter or air gun to heat it to shrink the wire. |
|
Packaging Details
Product quantity: 100pcs
Package weight: 0.25kg
Package size: 13 x 8 x 9 cm
