BHT-0.5 heat shrinkable terminal

Product features
Mouse over to zoom in

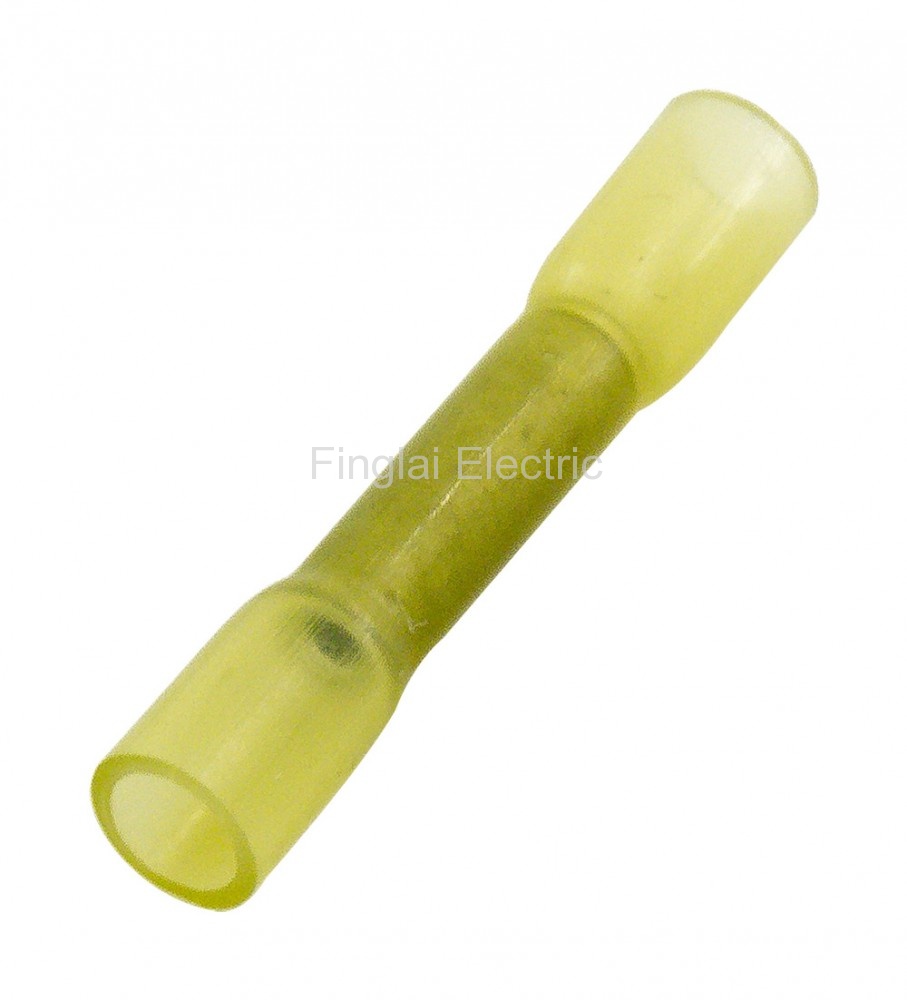

BHT-0.5 heat shrink butt wire connector terminal
Price: US $0.04 / piece
Model number: BHT-0.5
Product name: Heat shrinkable terminal
Deliver to:
Shipping:
US $7.44via
Estimated Delivery Time: 12-20 days
quantity:



Total price:US $11.44
Buy Now
Add to Cart
Inquire
Payment:
PayPalWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters (Unit: mm)
Model numberA.W.GA.W.G (mm2)BL2AL1ColorOnline store:
BHT-0.526-240.25-0.51.3123.228YellowVisiting...
BHT-1.2522-160.5-1.51.9154.838RedUS $0.04/ pieceOrderAdd to Cart
BHT-216-141.5-2.52.4155.838BlueUS $0.05/ pieceOrderAdd to Cart
BHT-5.512-104.0-6.03.6156.842YellowUS $0.06/ pieceOrderAdd to Cart
General
Model number BHT series
Shrink ratio 3:1
Operating temperature -55℃ to 125℃
Min full shrinkable temperature 180℃
Start shrinkable temperature 80℃
IP Rating IP67
Conpliance RoHS
Pcs/bag 500
Usage method
1. Prepare the terminal and wires, peel off the wires sheath for about 10mm.
2. Insert the wire into the terminal.
3. Insert the other wire into the terminal's other side.
4. Clamp the middle with a crimping plier, keep the copper wire and the clamp in close contact.
5. After pressing, use a lighter or air gun to heat it to shrink the wire.
Packaging Details
Package weight: 0.2kg
Package size: 13 x 8 x 9 cm
Product quantity: 100pcs
