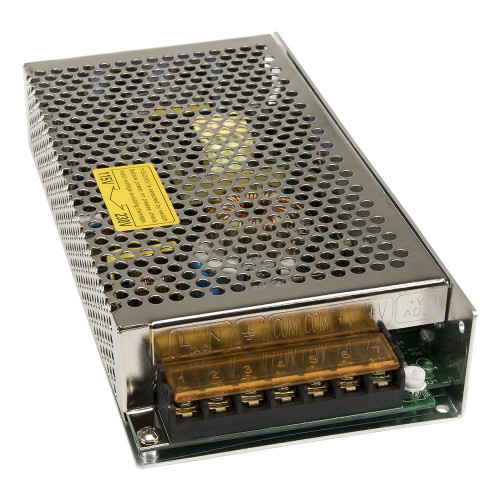

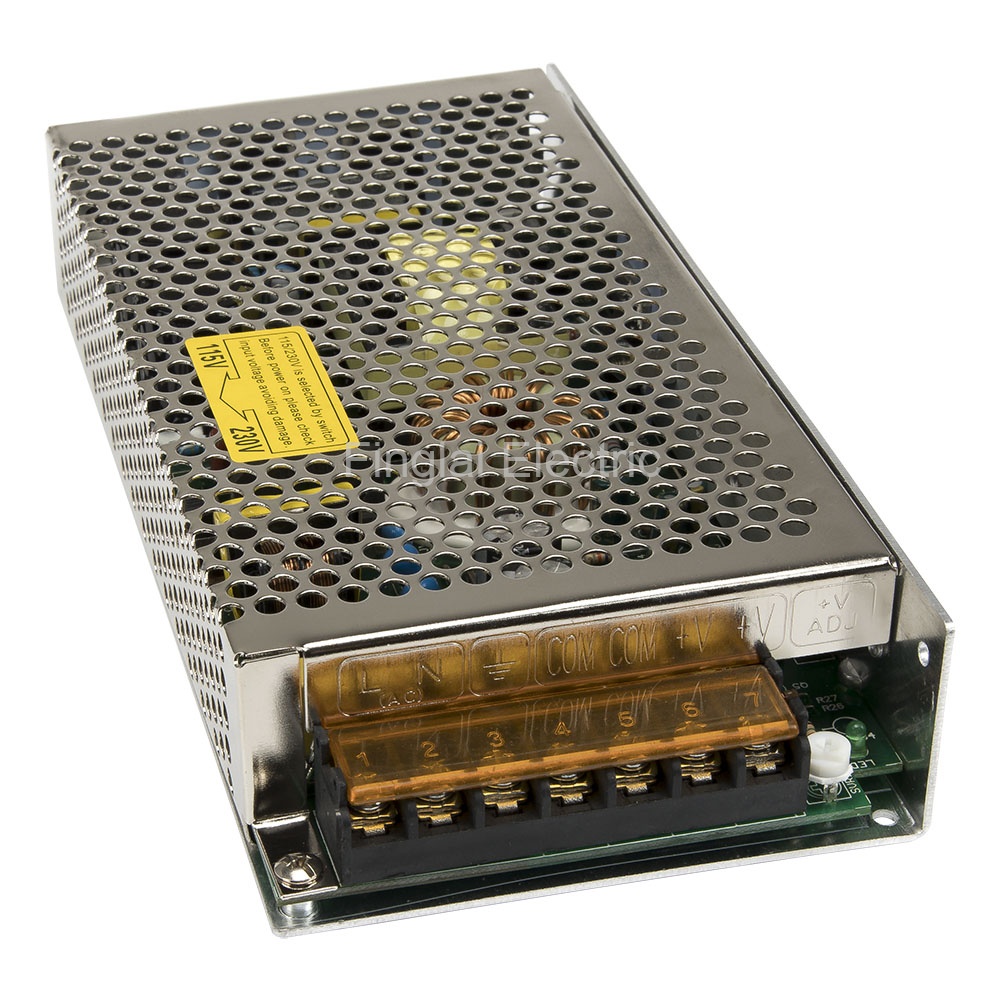

S-150-7.5 150W DC 7.5V 20A output AC 110V/220V input single group switching power supply

Product features
Price: US $13.85 / piece
Model number: S-150-7.5
Product name: General switching power supply
Deliver to:
Shipping:
US $18.6via
Sorry, this item is no longer available!
Quantity:



Total price:US $32.45
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model number S-150-5 S-150-7.5 S-150-9 S-150-12 S-150-13.5 S-150-15 S-150-24 S-150-27 S-150-48
Online store:  US $13.85/ pieceOrder US $13.85/ pieceOrder US $13.85/ pieceOrder US $13.85/ pieceOrder US $13.85/ pieceOrder US $13.85/ pieceOrder US $13.85/ pieceOrder US $13.85/ pieceOrder
DC output voltage 5V 7.5V 9V 12V 13.5V 15V 24V 27V 48V
Output voltage error (Note: 2) ±2% ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Rated output current 30A 20A 16.7A 12.5A 11.2A 10A 6.5A 5.6A 3.2A
Output current rage 0-30A 0-20A 0-16.7A 0-12.5A 0-11.2A 0-10A 0-6.5A 0-5.6A 0-3.2A
Wave and noise (Note: 3) 150mVp-p 150mVp-p 120mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 75mVp-p
Inlets tability (Note: 4) ±0.5% ±0.5% ±0.3% ±0.3% ±0.3% ±0.3% ±0.2% ±0.2% ±0.2%
Load stability (Note: 5) ±0.5% ±0.5% ±0.3% ±0.3% ±0.3% ±0.3% ±0.2% ±0.2% ±0.2%
DC output power 150W 150W 150.3W 150W 151.2W 150W 156W 151.2W 153.6W
Effciency 80% 80% 80% 82% 83% 84% 85% 86% 87%
Adjustable range for DC voltage 4.5-5.5V 6-8.3V 8-10.4V 10.6-13.2V 12-15V 13.5-16.5V 21-28V 24-30V 43-53V
General
Model number S-150 series
AC input voltage range 85-132VAC/176-264VAC, selected by switch, 47-63Hz; 248-370VDC
Input current 3.2A/115V, 1.6A/230V
AC inrush current Cold-start current: 30A/115V, 60A/230V
Leakage current 3.5mA/240VAC max
Overload proctection 105%-150% Type:Foldback current limiting Rest:auto-recovery
Over-voltage protection 115%-135% Type:hiccup mode Rest:auto-recovery
Temperature coefficient ±0.03%/℃ (0-50℃)
Setup rise hold up time 100ms, 50ms, 20ms
Vibration 10-500HZ,2G 10min/1cycle, Periodfor 60min, Each axes
Dielectric strength 1.5KVac, 50/60 Hz for 1 min between input and output
1.5KVac, 50/60 Hz for 1 min between input and enclosure
0.5KVac, 50/60 Hz for 1 min between output and enclosure
Isolation resistance 100MΩ min. at 500 VDC
Working temperature humidity -10℃-60℃ (Refer to output characteristic figure), 20%-90%RH
Store temperature humidity -20℃-85℃, 10%-95%RH
External dimension 199x98x38 mm
Weight 0.7kg
Safety standards UL1950 TUV refer to 60950
EMC standards CISPR22(refer to55022), IEC1000-4-2,3,4,IEC1000-3-2
Note 1. The testing condition for the above paramenter is: 230VAC input, rated load, 25℃, Humidity 70%RH.
2. Error, include the setting error, line stability and load stability. (Note:5)
3. Wave test: adopting A12 double wire for 20MHZ,and 0.1uF-47uF capacitor short-circuit for interrupting.
4. Inlet voltage stability test: when is over load,the lowest voltage of enter is representative to the highest voltage
5. Load stability test: The load is from 0% to 100%.
S-150 series 150W general switching power supply mounting dimensions
Packaging Details
Product quantity: 1pc
Package weight: 0.8kg
Package size: 21 x 11 x 14 cm
