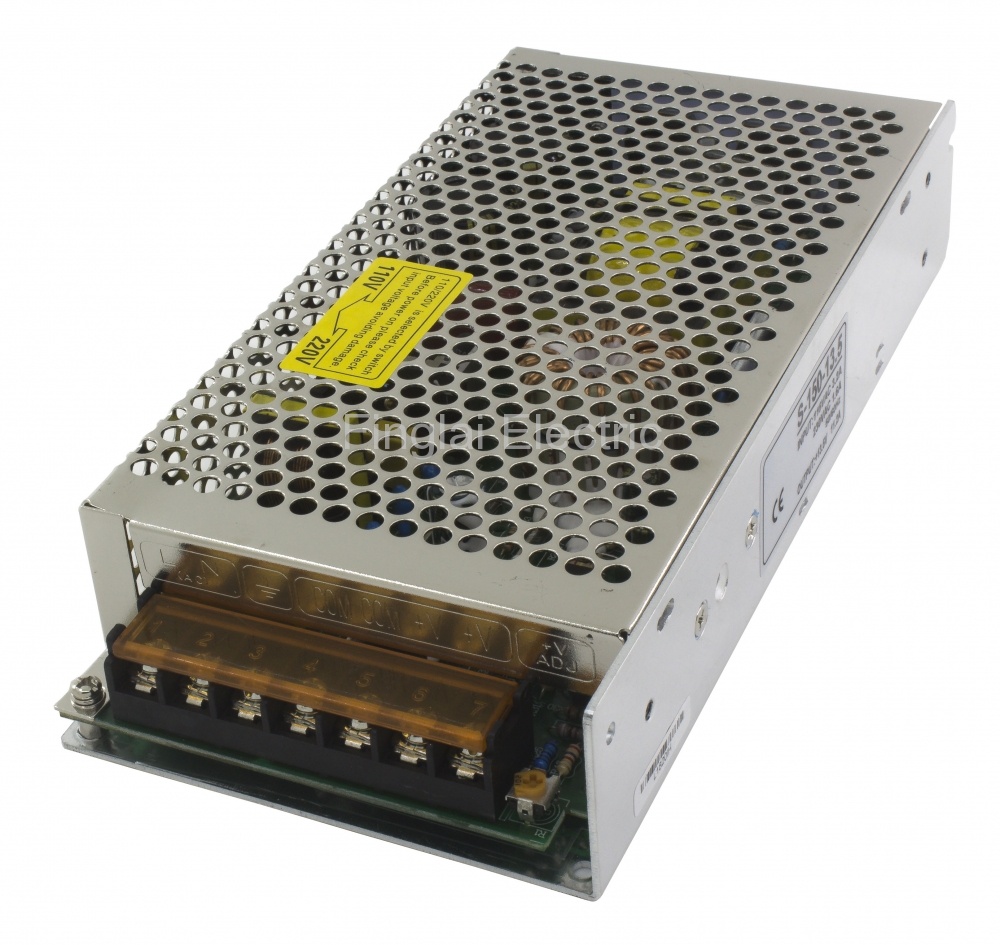

S-150-13.5 150W DC 13.5V 11.2A output AC 110V/220V input single group switching power supply
Product features
Mouse over to zoom in
S-150-13.5 150W DC 13.5V 11.2A output AC 110V/220V input single group switching power supply
Product description
▇ Model number and parameters
Model number | S-150-5 | S-150-7.5 | S-150-9 | S-150-12 | S-150-13.5 | S-150-15 | S-150-24 | S-150-27 | S-150-48 |
Online store: | US $13.85/ pieceOrder | US $13.85/ pieceOrder | US $13.85/ pieceOrder | Visiting... | US $13.85/ pieceOrder | US $13.85/ pieceOrder | US $13.85/ pieceOrder | US $13.85/ pieceOrder | |
DC output voltage | 5V | 7.5V | 9V | 12V | 13.5V | 15V | 24V | 27V | 48V |
Output voltage error (Note: 2) | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
Rated output current | 30A | 20A | 16.7A | 12.5A | 11.2A | 10A | 6.5A | 5.6A | 3.2A |
Output current rage | 0-30A | 0-20A | 0-16.7A | 0-12.5A | 0-11.2A | 0-10A | 0-6.5A | 0-5.6A | 0-3.2A |
Wave and noise (Note: 3) | 150mVp-p | 150mVp-p | 120mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 75mVp-p |
Inlets tability (Note: 4) | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
Load stability (Note: 5) | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
DC output power | 150W | 150W | 150.3W | 150W | 151.2W | 150W | 156W | 151.2W | 153.6W |
Effciency | 80% | 80% | 80% | 82% | 83% | 84% | 85% | 86% | 87% |
Adjustable range for DC voltage | 4.5-5.5V | 6-8.3V | 8-10.4V | 10.6-13.2V | 12-15V | 13.5-16.5V | 21-28V | 24-30V | 43-53V |
▇ General
Model number | S-150 series |
AC input voltage range | 85-132VAC/176-264VAC, selected by switch, 47-63Hz; 248-370VDC |
Input current | 3.2A/115V, 1.6A/230V |
AC inrush current | Cold-start current: 30A/115V, 60A/230V |
Leakage current | 3.5mA/240VAC max |
Overload proctection | 105%-150% Type:Foldback current limiting Rest:auto-recovery |
Over-voltage protection | 115%-135% Type:hiccup mode Rest:auto-recovery |
Temperature coefficient | ±0.03%/℃ (0-50℃) |
Setup rise hold up time | 100ms, 50ms, 20ms |
Vibration | 10-500HZ,2G 10min/1cycle, Periodfor 60min, Each axes |
Dielectric strength | 1.5KVac, 50/60 Hz for 1 min between input and output 1.5KVac, 50/60 Hz for 1 min between input and enclosure 0.5KVac, 50/60 Hz for 1 min between output and enclosure |
Isolation resistance | 100MΩ min. at 500 VDC |
Working temperature humidity | -10℃-60℃ (Refer to output characteristic figure), 20%-90%RH |
Store temperature humidity | -20℃-85℃, 10%-95%RH |
External dimension | 199x98x38 mm |
Weight | 0.7kg |
Safety standards | UL1950 TUV refer to 60950 |
EMC standards | CISPR22(refer to55022), IEC1000-4-2,3,4,IEC1000-3-2 |
Note | 1. The testing condition for the above paramenter is: 230VAC input, rated load, 25℃, Humidity 70%RH. 2. Error, include the setting error, line stability and load stability. (Note:5) 3. Wave test: adopting A12 double wire for 20MHZ,and 0.1uF-47uF capacitor short-circuit for interrupting. 4. Inlet voltage stability test: when is over load,the lowest voltage of enter is representative to the highest voltage 5. Load stability test: The load is from 0% to 100%. |
S-150 series 150W general switching power supply mounting dimensions
Packaging Details
Product quantity: 1pc
Package weight: 0.8kg
Package size: 21 x 11 x 14 cm
