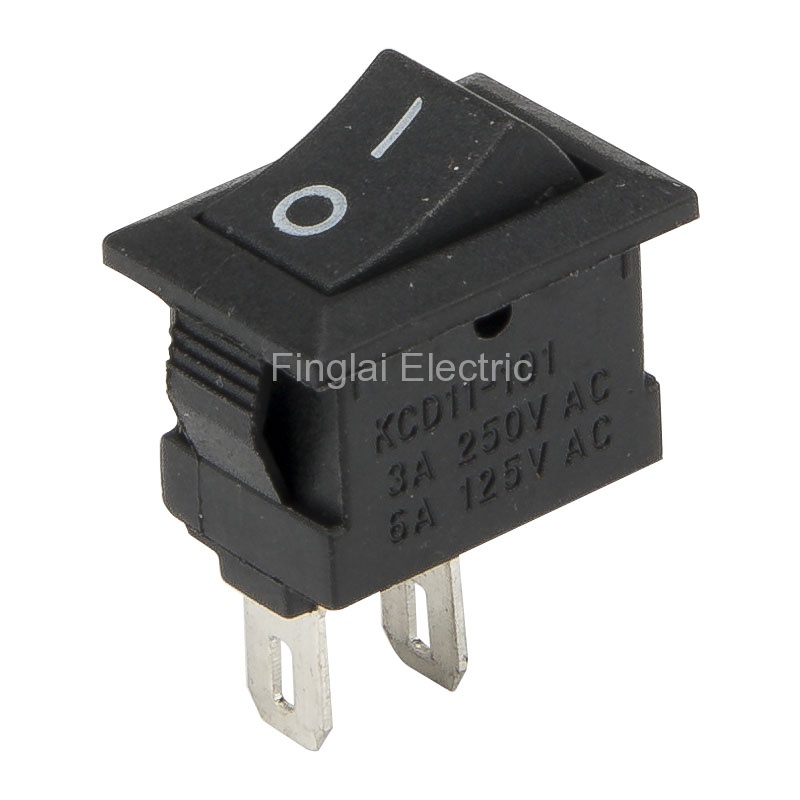

KCD1-11-2P black perforate 13.5 x 9 mm 2 pin ON - OFF small rocker switch
22 sold
Product features
Mouse over to zoom in
KCD1-11-2P black perforate 13.5 x 9 mm 2 pin ON - OFF small rocker switch
Price: US $0.06 / piece
Model number: KCD1-11-2P-UB
Product name: Rocker switch
Deliver to:
Shipping:
US $5.52via
Estimated Delivery Time: 9-17 days
Total price:US $6.12
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Same model | Action method | Contact form | Color code | Online store:
|
| KCD1-11-2P | KCD5-101 | Self-lock | ON-OFF | R, B, W | Visiting... |
| KCD1-11-3P | KCD5-102 | Self-lock | ON-ON | R, B | US $0.07/ pieceOrder (2) |
▇ KCD1-11-2P rocker switch model number legend
▇ General
| Model number |
KCD1 KCD5 13.5x9mm series |
| Perforate dimensions |
13.5 0.50x9 0.50 mm |
| Contact rating |
3A@250VAC |
| Contact resistance |
50mΩ max |
| Insulation resistance |
100MΩ min at 500Vdc |
| Dielectric strength |
1500Vac, 50Hz for 1min |
| Electrical Life |
10000 cycles |
| Matched plug spring terminal |
4.8mm mounting size with jacket |
| Operating temperature |
-25-85 ℃ |
| PCS/Bag |
200 |
▇ KCD1-11-2P rocker switch child models
| No |
Model Number |
Quality |
Color |
MOQ |
Unit Price |
Related Product |
| 1 |
KCD1-11-2P-UR |
Usual quality |
Red |
10 |
US $0.06 |
Order |
| 2 |
KCD1-11-2P-UB |
Usual quality |
Black |
10 |
US $0.06 |
Visiting... |
| 3 |
KCD1-11-2P-UW |
Usual quality |
Full white |
10 |
US $0.09 |
Order |
| 4 |
KCD1-11-2P-HR |
High quality |
Red |
10 |
US $0.08 |
Order |
| 5 |
KCD1-11-2P-HB |
High quality |
Black |
10 |
US $0.08 |
Order |
KCD1 rocker switch 13.5x9 mm perforate dimensions drawing
Packaging Details
Product quantity: 10pcs
Package weight: 0.04kg
Package size: 10 x 10 x 2 cm
