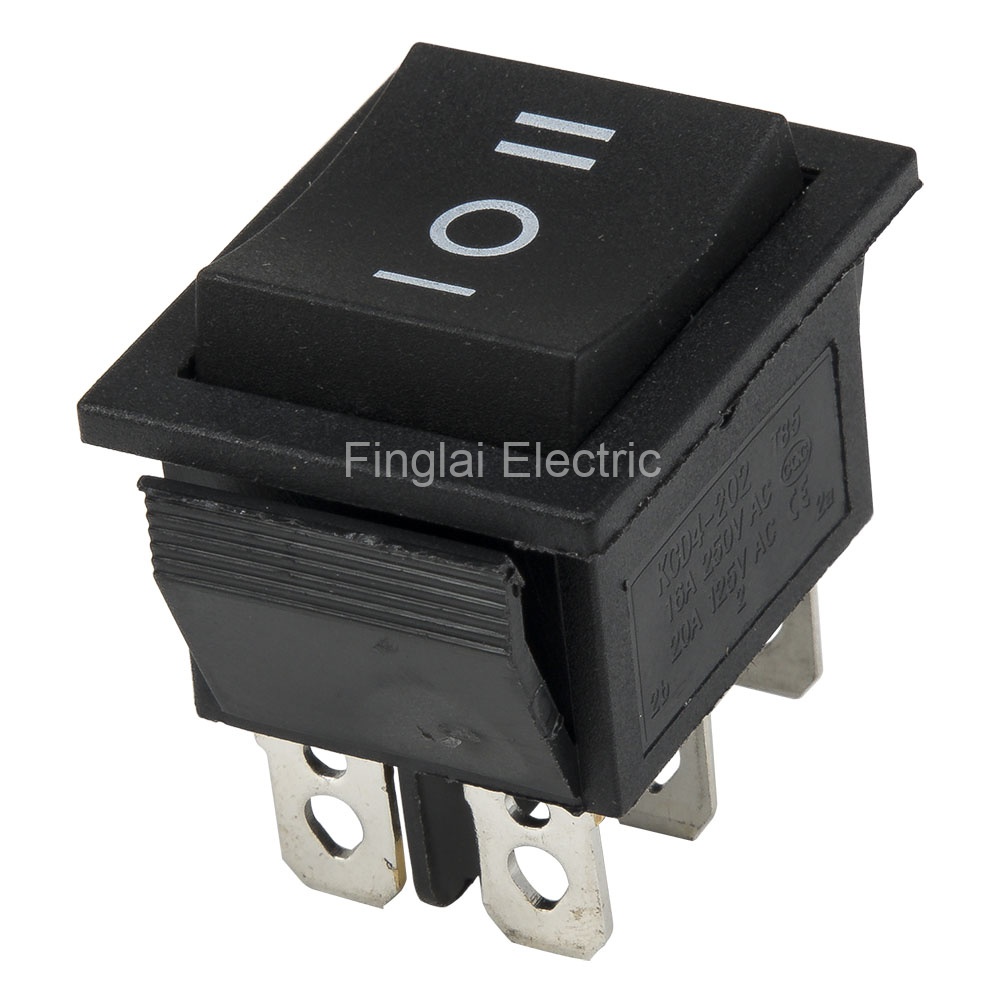

KCD4 KCD6 KCD7 KCD2 series rocker switch with 26x22 mm perforate dimensions
Mouse over to zoom in
Mouse over to zoom in
Mouse over to zoom in
Mouse over to zoom in
Mouse over to zoom in
Mouse over to zoom in
Mouse over to zoom in
Mouse over to zoom in
Mouse over to zoom in
Mouse over to zoom in
Mouse over to zoom in
▇ Model number and parameters
| Model number | Same model | Action method | Contact form | Color code | Lamp voltage | Online store: |
| KCD4-201 | Self-lock | ON-OFF | B | US $0.24/ pieceOrder (1) | ||
| KCD4-201N | Self-lock | ON-OFF | R, G | 220V bulb; 24V LED | US $0.25 - 0.47/ pieceOrder (5) | |
| KCD4-201R | Reset | (ON)-OFF | B | US $0.26/ pieceOrder (1) | ||
| KCD4-202 | Self-lock | ON-ON | B | US $0.26/ pieceOrder (1) | ||
| KCD4-202N | Self-lock | ON-ON | R, G | 220V | US $0.27/ pieceOrder (2) | |
| KCD4-202R | Reset | (ON)-ON | B | US $0.31/ pieceOrder (1) | ||
| KCD4-203 | Self-lock | ON-OFF-ON | B | US $0.27/ pieceOrder (1) | ||
| KCD4-203R | Reset | (ON)-OFF-(ON) | B | US $0.36/ pieceOrder (2) | ||
| KCD6-202N | Self-lock | ON-OFF | RG, 2R, 2G | 220V | US $0.36/ pieceOrder (3) | |
| KCD7-201N | KCD2-201N, KCD7-2211N | Self-lock | ON-OFF | R, G | 220V | US $0.31/ pieceOrder (2) |
| KCD7-202N | KCD2-201N, KCD7-2211N | Self-lock | ON-ON | R, G | 220V | US $0.33/ pieceOrder (2) |
▇ General
| Model number | KCD4 KCD6 KCD7 KCD2 series |
| Perforate dimensions | 26 0.50x22 0.50 mm |
| Contact rating | 15A@250VAC |
| Contact resistance | 50mΩ max |
| Insulation resistance | 100MΩ min at 500Vdc |
| Dielectric strength | 1500Vac, 50Hz for 1min |
| Electrical Life | 10000 cycles |
| Matched plug spring terminal | 6.3mm mounting size with jacket |
| Matched waterproof cap | FJ2622 |
| Operating temperature | -25-85 ℃ |
| PCS/Bag | 50 |
KCD4 KCD6 KCD7 KCD2 series rocker switch drawing
KCD6 double light rocker switch drawing
