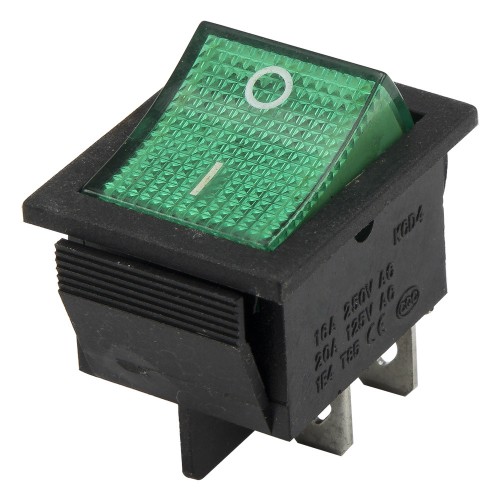

KCD4-201N green perforate 26 x 22 mm 4 pins ON - OFF 9-24V LED light rocker switch
Product features
Mouse over to zoom in
KCD4-201N green perforate 26 x 22 mm 4 pins ON - OFF 9-24V LED light rocker switch
Price: US $0.47 / piece
Model number: KCD4-201N-LGW
Product name: Rocker switch
Deliver to:
Shipping:
US $4.76via
Estimated Delivery Time: 9-15 days
Total price:US $7.11
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model number | Same model | Action method | Contact form | Color code | Lamp voltage | Online store: |
KCD4-201 | Self-lock | ON-OFF | B | US $0.24/ pieceOrder (1) | ||
KCD4-201N | Self-lock | ON-OFF | R, G | 220V bulb; 24V LED | Visiting... | |
KCD4-201R | Reset | (ON)-OFF | B | US $0.26/ pieceOrder (1) | ||
KCD4-202 | Self-lock | ON-ON | B | US $0.26/ pieceOrder (1) | ||
KCD4-202N | Self-lock | ON-ON | R, G | 220V | US $0.27/ pieceOrder (2) | |
KCD4-202R | Reset | (ON)-ON | B | US $0.31/ pieceOrder (1) | ||
KCD4-203 | Self-lock | ON-OFF-ON | B | US $0.27/ pieceOrder (1) | ||
KCD4-203R | Reset | (ON)-OFF-(ON) | B | US $0.36/ pieceOrder (2) | ||
KCD6-202N | Self-lock | ON-OFF | RG, 2R, 2G | 220V | US $0.36/ pieceOrder (3) | |
KCD7-201N | KCD2-201N, KCD7-2211N | Self-lock | ON-OFF | R, G | 220V | US $0.31/ pieceOrder (2) |
KCD7-202N | KCD2-201N, KCD7-2211N | Self-lock | ON-ON | R, G | 220V | US $0.33/ pieceOrder (2) |
▇ KCD4-201N rocker switch model number legend
KCD4-201N
Parent Model Number
▇ General
Model number | KCD4 KCD6 KCD7 KCD2 series |
Perforate dimensions | 26 0.50x22 0.50 mm |
Contact rating | 15A@250VAC |
Contact resistance | 50mΩ max |
Insulation resistance | 100MΩ min at 500Vdc |
Dielectric strength | 1500Vac, 50Hz for 1min |
Electrical Life | 10000 cycles |
Matched plug spring terminal | 6.3mm mounting size with jacket |
Matched waterproof cap | FJ2622 |
Operating temperature | -25-85 ℃ |
PCS/Bag | 50 |
▇ KCD4-201N rocker switch child models
No | Model Number | Lamp Type | Color | Lamp Voltage | MOQ | Unit Price | Related Product |
1 | KCD4-201N-BR220V | Bulb | Red | 220V | 5 | US $0.25 | Order |
2 | KCD4-201N-BRW | Bulb | Red | 9-24V | 5 | US $0.33 | Order |
3 | KCD4-201N-BG220V | Bulb | Green | 220V | 5 | US $0.25 | Order |
4 | KCD4-201N-LRW | LED | Red | 9-24V | 5 | US $0.47 | Order |
5 | KCD4-201N-LGW | LED | Green | 9-24V | 5 | US $0.47 | Visiting... |
KCD4 KCD6 KCD7 KCD2 series rocker switch drawing
KCD6 double light rocker switch drawing
Packaging Details
Product quantity: 5pcs
Package weight: 0.09kg
Package size: 10 x 10 x 4 cm
