KCD1-11-3P series perforate 13.5 x 9 mm 3 pin ON - ON small rocker switches
Main child models
Price: US $0.07 / piece

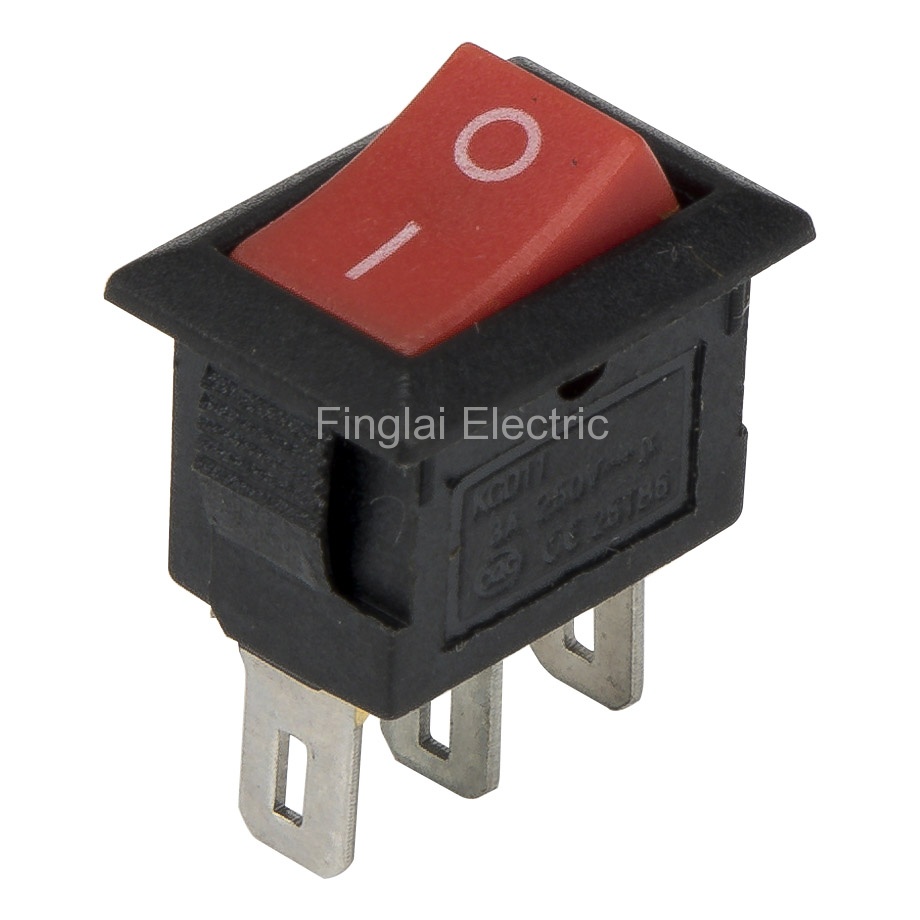

Model number: KCD1-11-3P-UR
Product name: Rocker switch
Product description
▇ Model number and parameters
| Model number | Same model | Action method | Contact form | Color code | Online store: |
| KCD1-11-2P | KCD5-101 | Self-lock | ON-OFF | R, B, W | US $0.06 - 0.09/ pieceOrder (5) |
| KCD1-11-3P | KCD5-102 | Self-lock | ON-ON | R, B | Visiting... |
▇ KCD1-11-3P rocker switch model number legend
▇ General
| Model number | KCD1 KCD5 13.5x9mm series |
| Perforate dimensions | 13.5 0.50x9 0.50 mm |
| Contact rating | 3A@250VAC |
| Contact resistance | 50mΩ max |
| Insulation resistance | 100MΩ min at 500Vdc |
| Dielectric strength | 1500Vac, 50Hz for 1min |
| Electrical Life | 10000 cycles |
| Matched plug spring terminal | 4.8mm mounting size with jacket |
| Operating temperature | -25-85 ℃ |
| PCS/Bag | 200 |
▇ KCD1-11-3P rocker switch child models
| No | Model Number | Quality | Color | MOQ | Unit Price |
| 1 | KCD1-11-3P-UR | Usual quality | Red | 10 | US $0.07 |
| 2 | KCD1-11-3P-UB | Usual quality | Black | 10 | US $0.07 |
| 3 | KCD1-11-3P-HR | High quality | Red | 10 | US $0.08 |
| 4 | KCD1-11-3P-HB | High quality | Black | 10 | US $0.08 |
KCD1 rocker switch 13.5x9 mm perforate dimensions drawing
