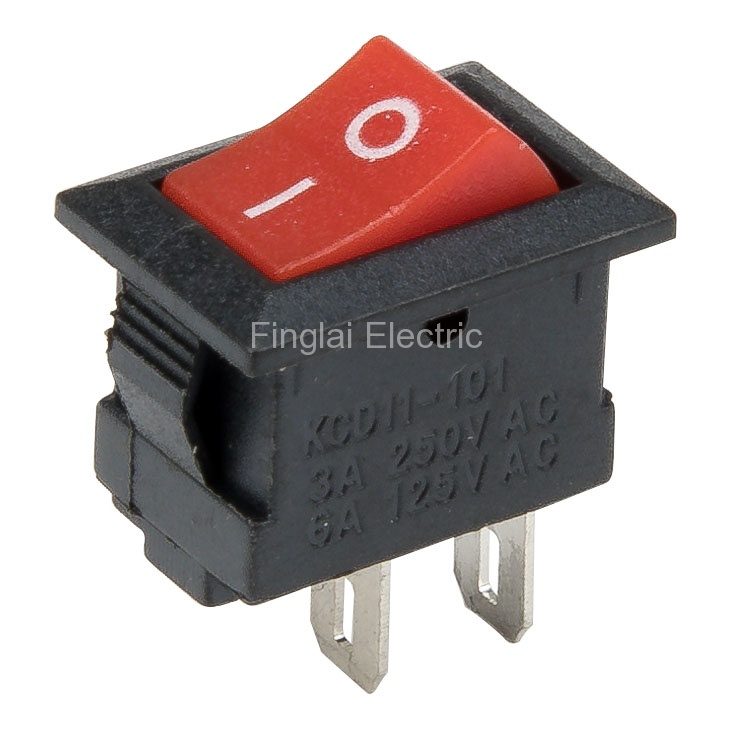

KCD1-11-2P red high quality perforate 13.5 x 9 mm 2 pin ON - OFF small rocker switch
Product features
Mouse over to zoom in
KCD1-11-2P red high quality perforate 13.5 x 9 mm 2 pin ON - OFF small rocker switch
Price: US $0.08 / piece
Model number: KCD1-11-2P-HR
Product name: Rocker switch
Deliver to:
Shipping:
US $5.04via
Estimated Delivery Time: 9-15 days
DDP service: All applicable import duties and taxes are included in total price.
Total price:US $5.84
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number and parameters
| Model number | Same model | Action method | Contact form | Color code | Online store: |
| KCD1-11-2P | KCD5-101 | Self-lock | ON-OFF | R, B, W | Visiting... |
| KCD1-11-3P | KCD5-102 | Self-lock | ON-ON | R, B | US $0.07/ pieceOrder (2) |
▇ KCD1-11-2P rocker switch model number legend
KCD1-11-2P
Parent Model Number
▇ General
| Model number | KCD1 KCD5 13.5x9mm series |
| Perforate dimensions | 13.5 0.50x9 0.50 mm |
| Contact rating | 3A@250VAC |
| Contact resistance | 50mΩ max |
| Insulation resistance | 100MΩ min at 500Vdc |
| Dielectric strength | 1500Vac, 50Hz for 1min |
| Electrical Life | 10000 cycles |
| Matched plug spring terminal | 4.8mm mounting size with jacket |
| Operating temperature | -25-85 ℃ |
| PCS/Bag | 200 |
▇ KCD1-11-2P rocker switch submodels
| No | Model Number | Quality | Color | MOQ | Unit Price | Related Product |
| 1 | KCD1-11-2P-UR | Usual quality | Red | 10 | US $0.06 | Order |
| 2 | KCD1-11-2P-UB | Usual quality | Black | 10 | US $0.06 | Order |
| 3 | KCD1-11-2P-UW | Usual quality | Full white | 10 | US $0.09 | Order |
| 4 | KCD1-11-2P-HR | High quality | Red | 10 | US $0.08 | Visiting... |
| 5 | KCD1-11-2P-HB | High quality | Black | 10 | US $0.08 | Order |
KCD1 rocker switch 13.5x9 mm perforate dimensions drawing
Packaging Details
Product quantity: 10PCS
Package weight: 0.04kg
Package size: 10 x 10 x 2 cm
