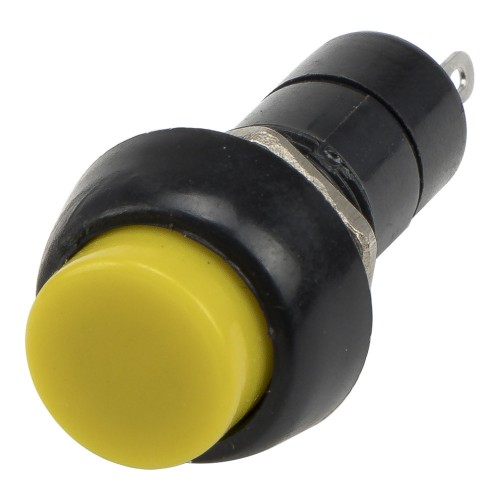

PBS-11B yellow 12mm mounting diameter reset (ON) - OFF round push button switch
Product features
Mouse over to zoom in
PBS-11B yellow 12mm mounting diameter reset (ON) - OFF round push button switch
Price: US $0.08 / piece
Model number: PBS-11B-Y
Product name: Push button
Deliver to:
Shipping:
US $6.07via
Estimated Delivery Time: 9-17 days
Total price:US $6.87
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Head shape | Action method | Contact form | Contact rating | Color code | Online store:
|
| PBS-11A | Round | Self-lock | ON-OFF | 1A@250VAC | R, G, Y, A, W, B | US $0.08/ pieceOrder (6) |
| PBS-11B | Round | Reset | (ON)-OFF | 1A@250VAC | R, G, Y, A, W, B | Visiting... |
| PBS-12A | Square | Self-lock | ON-OFF | 1A@250VAC | R, G | US $0.1/ pieceOrder (2) |
| PBS-12B | Square | Reset | (ON)-OFF | 1A@250VAC | R, G | US $0.1/ pieceOrder (3) |
| PBS-33B | Round | Reset | (ON)-OFF | 1A@250VAC | R, G, Y, A, W, B, O | US $0.23 - 0.57/ pieceOrder (21) |
▇ PBS-11B push button model number legend
▇ General
| Model number |
12mm PBS series |
| Mounting dimensions |
φ12 |
| Contact resistance |
50mΩ max |
| Insulation resistance |
100MΩ min |
| Dielectric strength |
2000Vac, 50Hz for 1min |
| Mechanical Life |
2x105 cycles |
| Electrical life |
5x104 cycles |
| IP degree |
IP40 |
| Terminals |
2 pin |
| Operation temperature |
-25 to 55℃ |
| Operation humidity |
45 to 85% RH, no-condensation |
| Alias name |
12mm PBS series push button switch, pushbutton |
▇ PBS-11B push button child models
| No |
Model Number |
Color |
MOQ |
Unit Price |
Related Product |
| 1 |
PBS-11B-R |
Red |
10 |
US $0.08 |
Order |
| 2 |
PBS-11B-G |
Green |
10 |
US $0.08 |
Order |
| 3 |
PBS-11B-Y |
Yellow |
10 |
US $0.08 |
Visiting... |
| 4 |
PBS-11B-A |
Blue |
10 |
US $0.08 |
Order |
| 5 |
PBS-11B-W |
White |
10 |
US $0.08 |
Order Unfold |
| 6 |
PBS-11B-B |
Black |
10 |
US $0.08 |
Order |
PBS-11 series push button drawing
PBS-33 series push button drawing
Packaging Details
Product quantity: 10pcs
Package weight: 0.06kg
Package size: 10 x 10 x 3 cm
