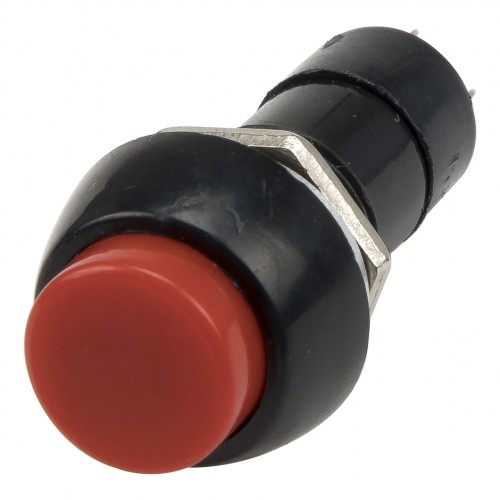

PBS-11B red 12mm mounting diameter reset (ON) - OFF round push button switch

Product features
Mouse over to zoom in
PBS-11B red 12mm mounting diameter reset (ON) - OFF round push button switch
Price: US $0.08 / piece
Model number: PBS-11B-R
Product name: Push button
Deliver to:
Shipping:
US $5.53via
Estimated Delivery Time: 12-17 days
Quantity:
Total price:US $6.33
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberHead shapeAction methodContact formContact ratingColor codeOnline store:
PBS-11ARoundSelf-lockON-OFF1A@250VACR, G, Y, A, W, BUS $0.08/ pieceOrder (6)
PBS-11BRoundReset(ON)-OFF1A@250VACR, G, Y, A, W, BVisiting...
PBS-12ASquareSelf-lockON-OFF1A@250VACR, G US $0.1/ pieceOrder (2)
PBS-12BSquareReset(ON)-OFF1A@250VACR, GUS $0.1/ pieceOrder (3)
PBS-33BRoundReset(ON)-OFF1A@250VACR, G, Y, A, W, B, OUS $0.23 - 0.57/ pieceOrder (21)
▇ PBS-11B push button model number legend
▇ General
Model number 12mm PBS series
Mounting dimensions φ12
Contact resistance 50mΩ max
Insulation resistance 100MΩ min
Dielectric strength 2000Vac, 50Hz for 1min
Mechanical Life 2x105 cycles
Electrical life 5x104 cycles
IP degree IP40
Terminals 2 pin
Operation temperature -25 to 55℃
Operation humidity 45 to 85% RH, no-condensation
Alias name 12mm PBS series push button switch, pushbutton
▇ PBS-11B push button child models
No Model Number Color MOQ Unit Price Related Product
1 PBS-11B-R Red 10 US $0.08 Visiting...
2 PBS-11B-G Green 10 US $0.08 Order
3 PBS-11B-Y Yellow 10 US $0.08 Order
4 PBS-11B-A Blue 10 US $0.08 Order
5 PBS-11B-W White 10 US $0.08 Order Unfold
6 PBS-11B-B Black 10 US $0.08 Order
PBS-11 series push button drawing
PBS-33 series push button drawing
Packaging Details
Product quantity: 10pcs
Package weight: 0.06kg
Package size: 10 x 10 x 3 cm
