PBS-33B series 12mm mounting diameter reset (ON) - OFF round push button switches
Main child models
Product description
▇ Model number and parameters
| Model number | Head shape | Action method | Contact form | Contact rating | Color code | Online store: |
| PBS-11A | Round | Self-lock | ON-OFF | 1A@250VAC | R, G, Y, A, W, B | US $0.08/ pieceOrder (6) |
| PBS-11B | Round | Reset | (ON)-OFF | 1A@250VAC | R, G, Y, A, W, B | US $0.08/ pieceOrder (6) |
| PBS-12A | Square | Self-lock | ON-OFF | 1A@250VAC | R, G | US $0.1/ pieceOrder (2) |
| PBS-12B | Square | Reset | (ON)-OFF | 1A@250VAC | R, G | US $0.1/ pieceOrder (3) |
| PBS-33B | Round | Reset | (ON)-OFF | 1A@250VAC | R, G, Y, A, W, B, O | Visiting... |
▇ PBS-33B push button model number legend
PBS-33B
Parent Model Number
▇ General
| Model number | 12mm PBS series |
| Mounting dimensions | φ12 |
| Contact resistance | 50mΩ max |
| Insulation resistance | 100MΩ min |
| Dielectric strength | 2000Vac, 50Hz for 1min |
| Mechanical Life | 2x105 cycles |
| Electrical life | 5x104 cycles |
| IP degree | IP40 |
| Terminals | 2 pin |
| Operation temperature | -25 to 55℃ |
| Operation humidity | 45 to 85% RH, no-condensation |
| Alias name | 12mm PBS series push button switch, pushbutton |
▇ PBS-33B push button child models
| No | Model Number | Color | Cable Length | MOQ | Unit Price |

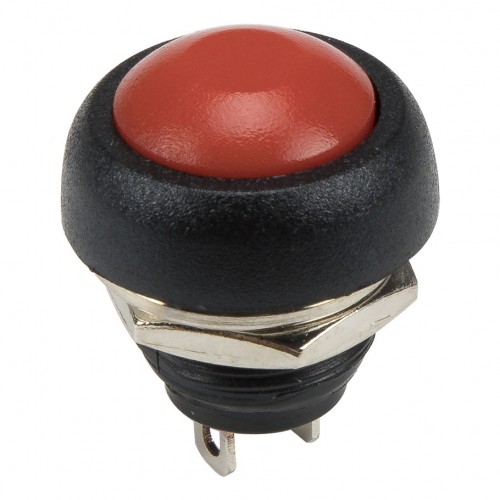

| 1 | PBS-33B-RN | Red | No cable | 10 | US $0.23 |
| 2 | PBS-33B-R0.15 | Red | 0.15m | 10 | US $0.36 |
| 3 | PBS-33B-R0.75 | Red | 0.75m | 10 | US $0.57 |
| 4 | PBS-33B-GN | Green | No cable | 10 | US $0.23 |
| 5 | PBS-33B-G0.15 | Green | 0.15m | 10 | US $0.36 |
| 6 | PBS-33B-G0.75 | Green | 0.75m | 10 | US $0.57 |
| 7 | PBS-33B-YN | Yellow | No cable | 10 | US $0.23 |
| 8 | PBS-33B-Y0.15 | Yellow | 0.15m | 10 | US $0.36 |
| 9 | PBS-33B-Y0.75 | Yellow | 0.75m | 10 | US $0.57 |
| 10 | PBS-33B-AN | Blue | No cable | 10 | US $0.23 |
| 11 | PBS-33B-A0.15 | Blue | 0.15m | 10 | US $0.36 |
| 12 | PBS-33B-A0.75 | Blue | 0.75m | 10 | US $0.57 |
| 13 | PBS-33B-WN | White | No cable | 10 | US $0.23 |
| 14 | PBS-33B-W0.15 | White | 0.15m | 10 | US $0.36 |
| 15 | PBS-33B-W0.75 | White | 0.75m | 10 | US $0.57 |
| 16 | PBS-33B-BN | Black | No cable | 10 | US $0.23 |
| 17 | PBS-33B-B0.15 | Black | 0.15m | 10 | US $0.36 |
| 18 | PBS-33B-B0.75 | Black | 0.75m | 10 | US $0.57 |
| 19 | PBS-33B-ON | Orange | No cable | 10 | US $0.23 |
| 20 | PBS-33B-O0.15 | Orange | 0.15m | 10 | US $0.36 |
| 21 | PBS-33B-O0.75 | Orange | 0.75m | 10 | US $0.57 |
PBS-11 series push button drawing
PBS-33 series push button drawing
