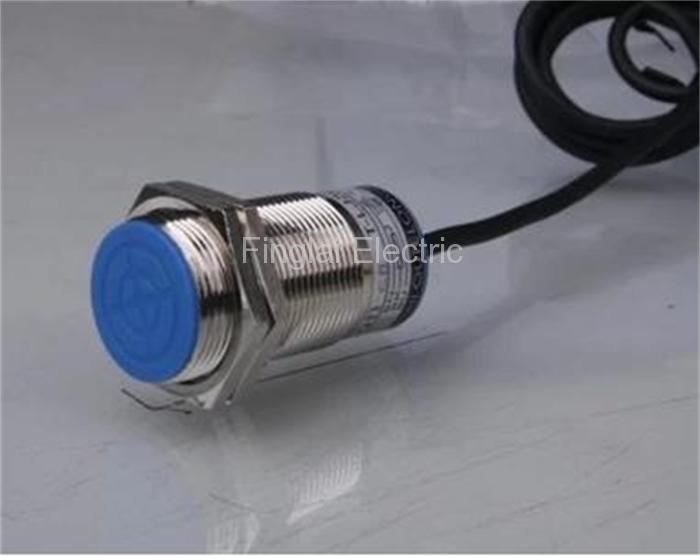

GAT10-30GM-D1 M30 10mm sensing DC 6-36V 2 wires NC general proximity switch sensor
Mouse over to zoom in
GAT10-30GM-D1 M30 10mm sensing DC 6-36V 2 wires NC general proximity switch sensor
Price: US $ / piece
Model number: GAT10-30GM-D2
Product name: General proximity sensor
Product description
▇ Operating form and model number
Current type | Operating form | Contact form | Connection form | Model number | Online store: |
DC | NPN | NO | Wire lead | GAT10-30GM-N1 | US $4.92/ pieceOrder |
DC | NPN | NC | Wire lead | GAT10-30GM-N2 | |
DC | NPN | NO+NC | Wire lead | GAT10-30GM-N4 | |
DC | PNP | NO | Wire lead | GAT10-30GM-P1 | US $4.92/ pieceOrder |
DC | PNP | NC | Wire lead | GAT10-30GM-P2 | |
DC | PNP | NO+NC | Wire lead | GAT10-30GM-P4 | |
DC | Two wires | NO | Wire lead | GAT10-30GM-D1 | |
DC | Two wires | NC | Wire lead | GAT10-30GM-D2 | |
AC | Two wires | NO | Wire lead | GAT10-30GM-A1 | US $5.41/ pieceOrder |
AC | Two wires | NC | Wire lead | GAT10-30GM-A2 | US $5.41/ pieceOrder |
▇ General
Model number | GAT10-30GM series |
External dimensions | M30x1.5x60 |
Installation type | Shielded |
Detection distance | 10mm±10% |
Setting distance | 0-8 mm |
Supply voltage | 12-24Vdc (6-36Vdc); 110-220Vac (36-250Vac), 50/60Hz |
Rated output current | N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA |
Standard detected object | Mild steel (18x18x1mm) |
Sensing object | Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) |
Response frequency | NPN or PNP: 0.4kHz; Two wires of DC: 0.4kHz; Two wires of AC: 25Hz |
Leakage current | N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max |
Hysteresis | 10% max. of sensing distance |
Protection circuit | DC: Reverse connection protection, Surge suppressor, Short-circuit protection AC: Surge suppressor |
Insulation resistance | 50MΩ min (between charging part and housing) |
Dielectric strength | 1000Vac, 1min (between charging part and housing) |
Temperature influence | ±10% max. of sensing distance at 23℃ within temperature range of -25℃ to 60℃ ±15% max. of sensing distance at 23℃ within temperature range of -30℃ to 65℃ |
Voltage influence | ±10% max. of sensing distance in rated voltage range ±15% |
IP Rating | IP67 |
Material | Case: Brass-nickel plated; Sensing surface: ABS |
Packaging Details
Product quantity: 1pc
Package weight: kg
Package size: x x cm
