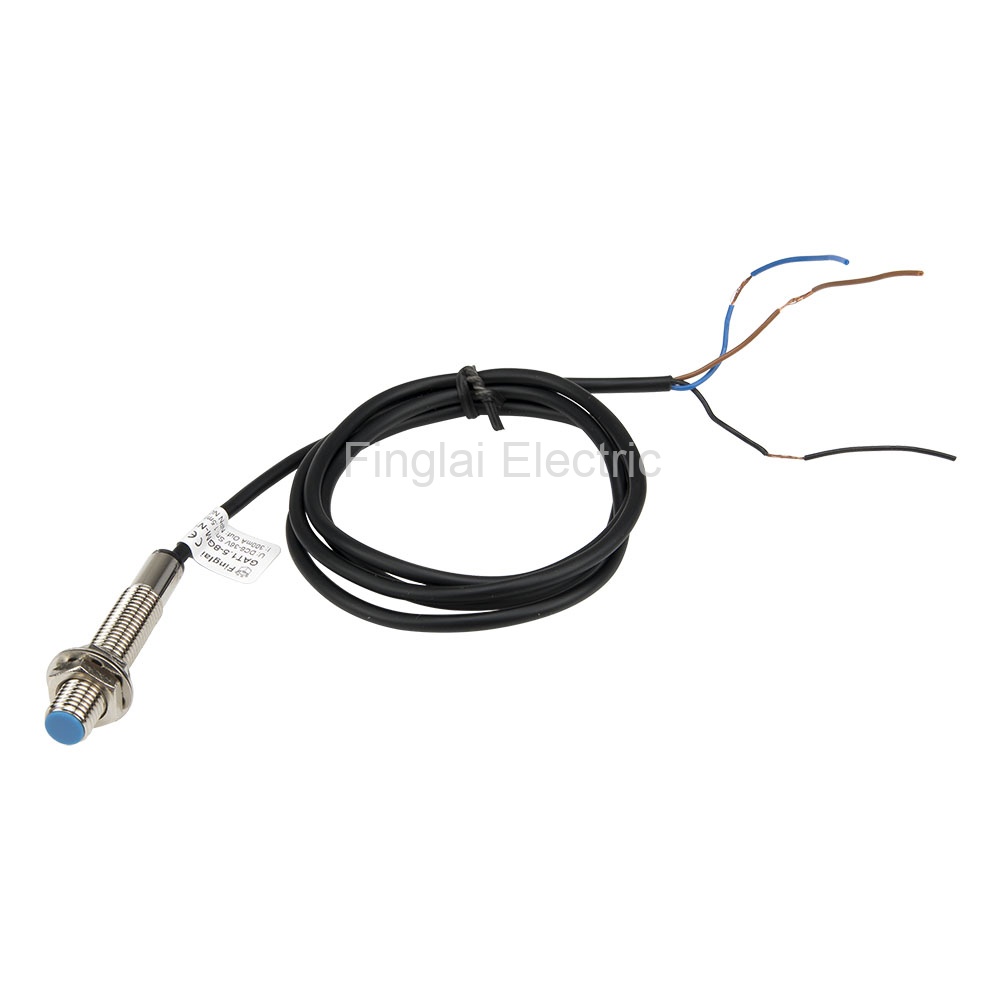

GAT1.5-8GM-N1 M8 1.5mm sensing DC 6-36V NPN NO general proximity switch sensor

14 sold

Product features

Mouse over to zoom in

Price: US $3.07 / piece

Model number: GAT1.5-8GM-N1

Product name: General proximity sensor

Deliver to:

Shipping:

US $7.24via

Estimated Delivery Time: 9-17 days

Quantity:

Total price:US $10.31

Buy Now

Add to Cart

Inquire

Payment:

PayPal/Credit CardWESTERN UNIONBANK TRANSFER

Product description

▇ Operating form and model number

▇ General

Model number	GAT1.5-8GM series
External dimensions	M8x1x40
Installation type	Shielded
Detection distance	1.5mm±10%
Setting distance	0-1.2 mm
Supply voltage	12-24Vdc (6-36Vdc); 110-220Vac (36-250Vac), 50/60Hz
Rated output current	N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object	Mild steel (8x8x1mm)
Sensing object	Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency	NPN or PNP: 2kHz; Two wires of DC: 1.5kHz; Two wires of AC: 25Hz
Leakage current	N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis	10% max. of sensing distance
Protection circuit	DC: Reverse connection protection, Surge suppressor, Short-circuit protection AC: Surge suppressor
Insulation resistance	50MΩ min (between charging part and housing)
Dielectric strength	1000Vac, 1min (between charging part and housing)
Temperature influence	±10% max. of sensing distance at 23℃ within temperature range of -25℃ to 60℃ ±15% max. of sensing distance at 23℃ within temperature range of -30℃ to 65℃
Voltage influence	±10% max. of sensing distance in rated voltage range ±15%
IP Rating	IP67
Material	Case: Brass-nickel plated; Sensing surface: ABS

Packaging Details

Product quantity: 1pc

Package weight: 0.1kg

Package size: 13 x 8 x 9 cm
