ASY-2D AC 220V 99min on delay DPDT white case digital time relay
Product features
Mouse over to zoom in
ASY-2D AC 220V 99min on delay DPDT white case digital time relay
Price: US $6.6 / piece
Model number: ASY-2D-WN220VAC-99M
Product name: Time relay
Deliver to:
Shipping:
US $13.04via
Estimated Delivery Time: 9-17 days
Total price:US $19.64
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Contact form and delay time
| Model number | Contact form | Delay time | Online store:
|
| ASY-2D | On-delay DPDT | 9.9s/99s/9.9min/99min | Visiting... |
| ASY-3D | On-delay DPDT | 99.9s/999s/99.9min/999min | US $4.98 - 5.17/ pieceOrder (16) |
| ASY-3SM | On-delay DPDT | 0.1s-999min | US $7.16 - 7.32/ pieceOrder (2) |
▇ ASY-2D time relay model number legend
▇ General
| Model number |
ASY |
| Supply voltage |
12, 24, 36, 48, 110, 220 or 380 Vac, 50/60 Hz; 12 or 24 Vdc |
| Tolerance |
-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage |
| Power consumption |
3W max |
| Setting method |
Dial switch |
| Indication method |
8-segment digital display with LED |
| External dimensions |
90x58x88 |
| Perforate dimensions |
63 10x51 10 mm |
| Contact rating |
5A@250Vac, 5A@28Vdc |
| Repeat accuracy |
±0.3%, ±0.05 sec |
| Setting error |
±0.5%, ±0.05 sec |

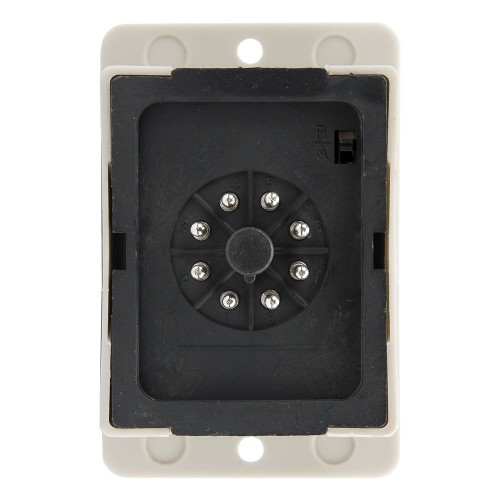

| Termination |
8 pins |
| Matched socket |
PF083A |
| Mechanical life |
1x106 |
| Electrical life |
1x105 |
| Operating temperature |
-10 to 55 ℃ (14 to 131 ℉) |
| Operating humidity |
45-80% RH max, non-condensing |
| Alias name |
ASY digital timer |
▇ ASY-2D time relay child models
| No |
Model Number |
Case Color |
Socket |
Supply Voltage |
Delay Time |
MOQ |
Unit Price |
Related Product |
| 1 |
ASY-2D-BN220VAC-9.9S |
Black |
Without socket |
220VAC |
9.9s |
1 |
US $6.04 |
Order |
| 2 |
ASY-2D-BN220VAC-99S |
Black |
Without socket |
220VAC |
99s |
1 |
US $6.04 |
Order |
| 3 |
ASY-2D-BN220VAC-9.9M |
Black |
Without socket |
220VAC |
9.9min |
1 |
US $6.04 |
Order |
| 4 |
ASY-2D-BN220VAC-99M |
Black |
Without socket |
220VAC |
99min |
1 |
US $6.04 |
Order |
| 5 |
ASY-2D-BS220VAC-9.9S |
Black |
With socket |
220VAC |
9.9s |
1 |
US $6.6 |
Order Unfold |
| 6 |
ASY-2D-BS220VAC-99S |
Black |
With socket |
220VAC |
99s |
1 |
US $6.6 |
Order |
| 7 |
ASY-2D-BS220VAC-9.9M |
Black |
With socket |
220VAC |
9.9min |
1 |
US $6.6 |
Order |
| 8 |
ASY-2D-BS220VAC-99M |
Black |
With socket |
220VAC |
99min |
1 |
US $6.6 |
Order |
| 9 |
ASY-2D-WN220VAC-9.9S |
White |
Without socket |
220VAC |
9.9s |
1 |
US $6.6 |
Order |
| 10 |
ASY-2D-WN220VAC-99S |
White |
Without socket |
220VAC |
99s |
1 |
US $6.6 |
Order |
| 11 |
ASY-2D-WN220VAC-9.9M |
White |
Without socket |
220VAC |
9.9min |
1 |
US $6.6 |
Order |
| 12 |
ASY-2D-WN220VAC-99M |
White |
Without socket |
220VAC |
99min |
1 |
US $6.6 |
Visiting... |
| 13 |
ASY-2D-WS220VAC-9.9S |
White |
With socket |
220VAC |
9.9s |
1 |
US $6.83 |
Order |
| 14 |
ASY-2D-WS220VAC-99S |
White |
With socket |
220VAC |
99s |
1 |
US $6.83 |
Order |
| 15 |
ASY-2D-WS220VAC-9.9M |
White |
With socket |
220VAC |
9.9min |
1 |
US $6.83 |
Order |
| 16 |
ASY-2D-WS220VAC-99M |
White |
With socket |
220VAC |
99min |
1 |
US $6.83 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.3kg
Package size: 14.5 x 8.5 x 10.5 cm
