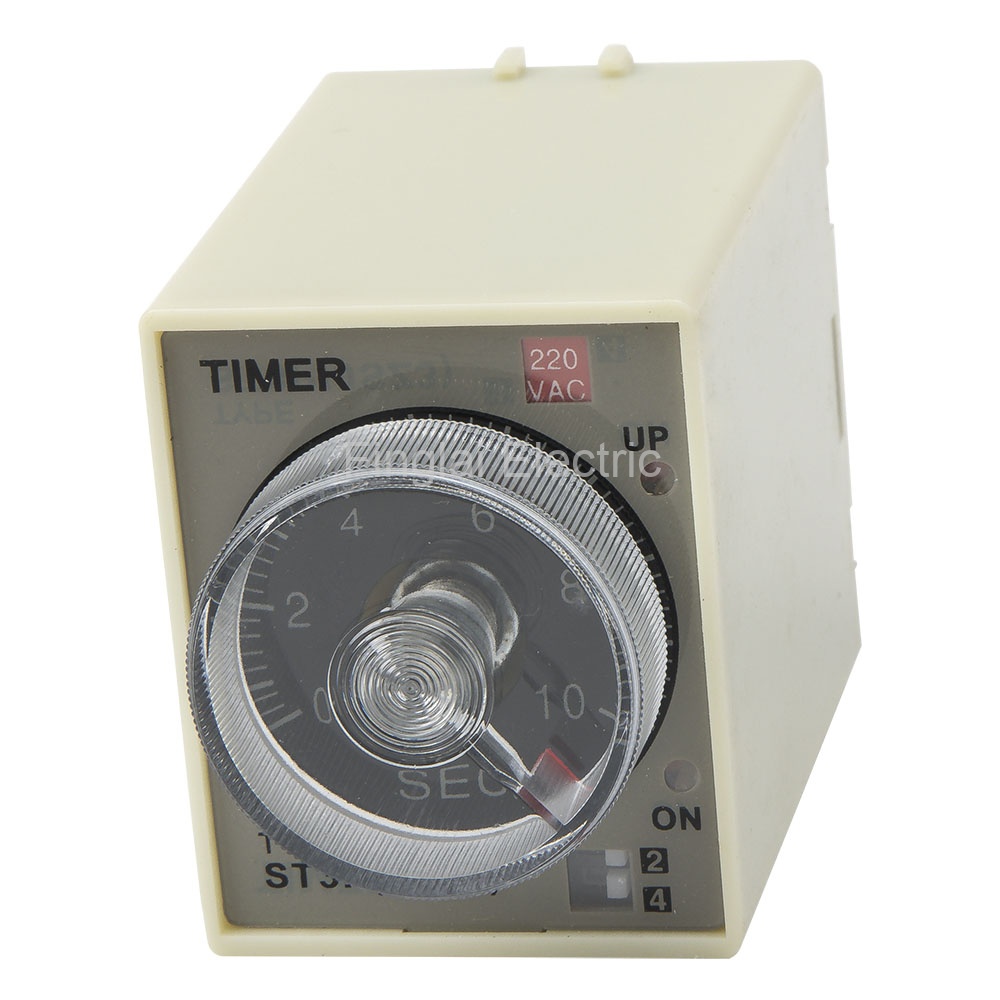

ST3PA series time relays
Mouse over to zoom in
Mouse over to zoom in
Mouse over to zoom in
Mouse over to zoom in
Mouse over to zoom in
Mouse over to zoom in
Mouse over to zoom in
▇ Contact form and delay time
| Model number | Contact form | Delay time | Online store: |
| ST3PA-A | On-delay DPDT | 0.5s/5s/30s/3min | US $3.05/ pieceOrder (5) |
| ST3PA-B | On-delay DPDT | 1s/10s/60s/6min | US $3.05/ pieceOrder (5) |
| ST3PA-C | On-delay DPDT | 5s/50s/5min/30min | US $3.05/ pieceOrder (5) |
| ST3PA-D | On-delay DPDT | 10s/100s/10min/60min | US $3.05/ pieceOrder (5) |
| ST3PA-E | On-delay DPDT | 60s/10min/60min/6h | US $3.05/ pieceOrder (5) |
| ST3PA-F | On-delay DPDT | 2min/20min/2h/12h | US $3.05/ pieceOrder (5) |
| ST3PA-G | On-delay DPDT | 4min/40min/4h/24h | US $3.05/ pieceOrder (5) |
▇ General
| Model number | ST3PA series |
| Supply voltage | 12, 24, 36, 48, 110, 220 or 380 Vac, 50/60 Hz; 12 or 24 Vdc |
| Tolerance | -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage |
| Power consumption | 3W max |
| Setting method | Knob |
| Indication method | LED |
| External dimensions | 50x40x57.5 mm |
| Perforate dimensions | 50.5 10x40.5 10 mm |
| Contact rating | 3A@250Vac, 5A@28Vdc |
| Repeat accuracy | ±0.3%, ±0.05 sec |
| Setting error | ±0.5%, ±0.05 sec |
| Termination | 8 pins |
| Mounting | Panel, din rail |
| Matched socket | PF083A, PF085A, US-08 |
| Matched mounting accessories | FTRA01 mounting fastener, FTRA02 mounting panel |
| Mechanical life | 1x106 |
| Electrical life | 1x105 |
| Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity | 95% RH max, non-condensing |
| Alias name | ST3PA series timer |
