ASY-2D AC 220V 99min on delay DPDT black case digital time relay

4 sold
Product features
Mouse over to zoom in

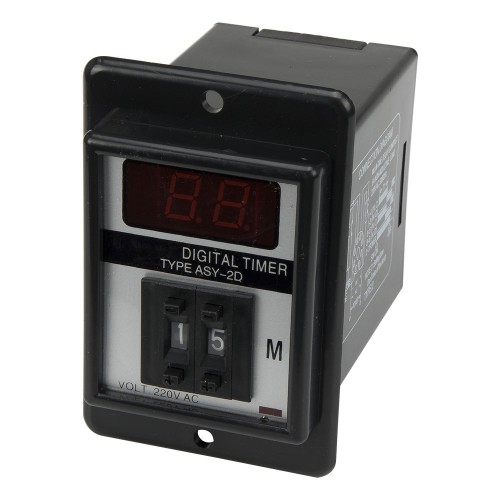

ASY-2D AC 220V 99min on delay DPDT black case digital time relay
Price: US $6.04 / piece
Model number: ASY-2D-BN220VAC-99M
Product name: Time relay
Case color:
Black
US $6.04White
US $6.6
Socket:
Without socket
US $6.04With socket
US $6.6
Supply voltage:
220VAC
Delay time:
9.9s
US $6.0499s
US $6.049.9min
US $6.0499min
US $6.04
Deliver to:
Shipping:
US $13.04via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $19.08
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Contact form and delay time
Model numberContact formDelay timeOnline store:
ASY-2DOn-delay DPDT9.9s/99s/9.9min/99minVisiting...
ASY-3DOn-delay DPDT99.9s/999s/99.9min/999minUS $4.98 - 5.17/ pieceOrder (16)
ASY-3SMOn-delay DPDT0.1s-999minUS $7.16 - 7.32/ pieceOrder (2)
▇ ASY-2D time relay model number legend
ASY-2D
Parent Model Number
-B
Case color
-B: Black
-W: White
N
Socket
N: Without socket
S: With socket
220VAC
Supply voltage
220VAC: 220VAC
-99M
Delay time
-9.9S: 9.9s
-99S: 99s
-9.9M: 9.9min
-99M: 99min
▇ General
Model number ASY
Supply voltage 12, 24, 36, 48, 110, 220 or 380 Vac, 50/60 Hz; 12 or 24 Vdc
Tolerance -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption 3W max
Setting method Dial switch
Indication method 8-segment digital display with LED
External dimensions 90x58x88
Perforate dimensions 63 10x51 10 mm
Contact rating 5A@250Vac, 5A@28Vdc
Repeat accuracy ±0.3%, ±0.05 sec
Setting error ±0.5%, ±0.05 sec
Termination 8 pins
Matched socket PF083A
Mechanical life 1x106
Electrical life 1x105
Operating temperature -10 to 55 ℃ (14 to 131 ℉)
Operating humidity 45-80% RH max, non-condensing
Alias name ASY digital timer
▇ ASY-2D time relay child models
No Model Number Case Color Socket Supply Voltage Delay Time MOQ Unit Price Related Product
1 ASY-2D-BN220VAC-9.9S Black Without socket 220VAC 9.9s 1 US $6.04 Order
2 ASY-2D-BN220VAC-99S Black Without socket 220VAC 99s 1 US $6.04 Order
3 ASY-2D-BN220VAC-9.9M Black Without socket 220VAC 9.9min 1 US $6.04 Order
4 ASY-2D-BN220VAC-99M Black Without socket 220VAC 99min 1 US $6.04 Visiting...
5 ASY-2D-BS220VAC-9.9S Black With socket 220VAC 9.9s 1 US $6.6 Order Unfold
6 ASY-2D-BS220VAC-99S Black With socket 220VAC 99s 1 US $6.6 Order
7 ASY-2D-BS220VAC-9.9M Black With socket 220VAC 9.9min 1 US $6.6 Order
8 ASY-2D-BS220VAC-99M Black With socket 220VAC 99min 1 US $6.6 Order
9 ASY-2D-WN220VAC-9.9S White Without socket 220VAC 9.9s 1 US $6.6 Order
10 ASY-2D-WN220VAC-99S White Without socket 220VAC 99s 1 US $6.6 Order
11 ASY-2D-WN220VAC-9.9M White Without socket 220VAC 9.9min 1 US $6.6 Order
12 ASY-2D-WN220VAC-99M White Without socket 220VAC 99min 1 US $6.6 Order
13 ASY-2D-WS220VAC-9.9S White With socket 220VAC 9.9s 1 US $6.83 Order
14 ASY-2D-WS220VAC-99S White With socket 220VAC 99s 1 US $6.83 Order
15 ASY-2D-WS220VAC-9.9M White With socket 220VAC 9.9min 1 US $6.83 Order
16 ASY-2D-WS220VAC-99M White With socket 220VAC 99min 1 US $6.83 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.3kg
Package size: 14.5 x 8.5 x 10.5 cm
