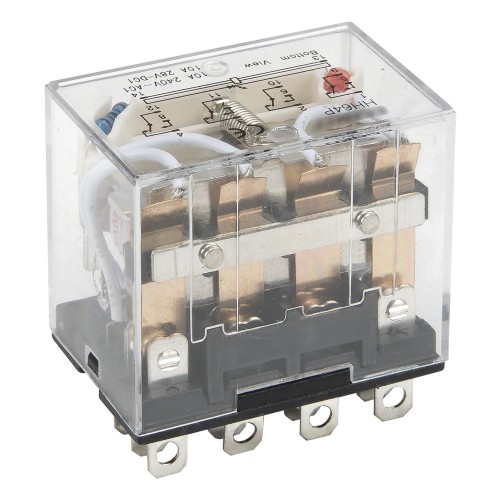

LY4NJ series LED indicator electromagnetic relays LY4 HH64P
Main child models
Price: US $1.88 / piece
Model number: LY4NJ-N220VAC
Product name: Electromagnetic relay
Product description
▇ Model number and type
| Model number | Same model | Type | Online store: |
| LY4J | HH64P | Standard | |
| LY4NJ | HH64PL, HH64P-L | With LED indicator | Visiting... |
▇ LY4NJ electromagnetic relay model number legend
LY4NJ
Parent Model Number
▇ General
| Model number | LY4 series |
| Contact material | Silver alloy; Copper |
| Contact form | 4PST-NO, 4PST-NC, 4PDT |
| Contact rating | 10A@28Vdc/240Vac |
| Rated coil power | 2.5Wac, 1.6Wdc |
| Rated coil voltage | AC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380V |
| Dielectric strength | 1,500Vac, 50/60 Hz for 1 min between coil and contacts 1,200Vac, 50/60 Hz for 1 min between opening contacts |
| Pick-up voltage | DC types: 75% max; AC types: 80% max |
| Drop-out voltage | DC types: 10% min; AC types: 30% min |
| Operation voltage | 110% max |
| Contact resistance | 50mΩ max |
| Termination | 14 pins |
| Mounting | Quick connect |
| Matched socket | PTF14A, PT14 |
| Mechanical life | 1x107 operations min |
| Electrical life | 1x105 operations min |
| Insulation resistance | 100MΩ min. at 500 VDC |
| Operating temperature | -30 to 55 ℃ (-22 to 131 ℉) |
| Operating humidity | 35 to 85% RH, no condensation |
| External dimensions | 41x27.3x35.2 mm |
| Alias name | LY4 series power relay, electric relay, electrical relay |
▇ LY4NJ electromagnetic relay child models
| No | Model Number | Socket | Coil Voltage | MOQ | Unit Price |
| 1 | LY4NJ-N220VAC | Without socket | 220VAC | 1 | US $1.88 |
| 2 | LY4NJ-N24VDC | Without socket | 24VDC | 1 | US $1.88 |
| 3 | LY4NJ-S220VAC | With socket | 220VAC | 10 | US $2.22 |
| 4 | LY4NJ-S24VDC | With socket | 24VDC | 10 | US $2.22 |
LY4 series electromagnetic relay mounting dimensions
