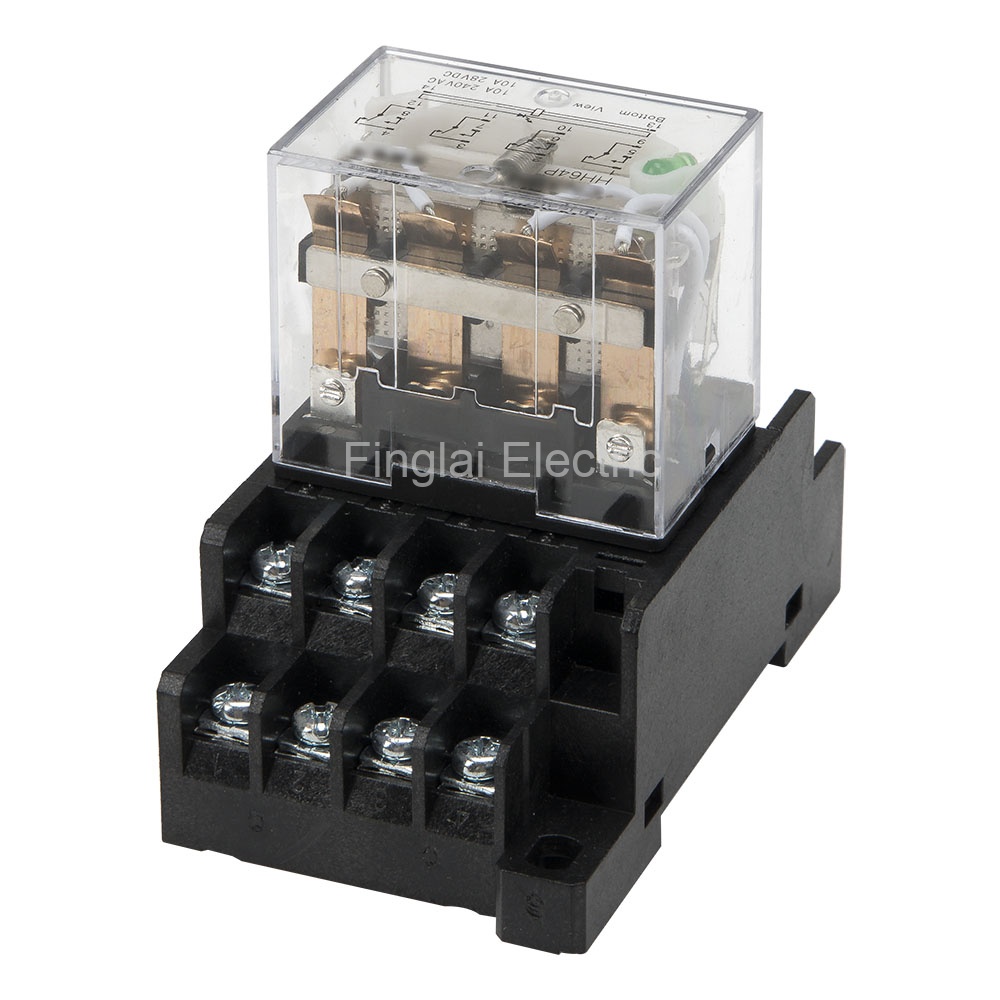

LY4NJ DC 24V LED indicator electromagnetic relay with socket base LY4 series 24VDC HH64P
Product features
Mouse over to zoom in
LY4NJ DC 24V LED indicator electromagnetic relay with socket base LY4 series 24VDC HH64P
Price: US $2.22 / piece
Model number: LY4NJ-S24VDC
Product name: Electromagnetic relay
Deliver to:
Shipping:
US $45.72via
Estimated Delivery Time: 9-15 days
DDP service: all applicable import duties and taxes are included in total order value.
Total price:US $67.92
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number and type
| Model number | Same model | Type | Online store: |
| LY4J | HH64P | Standard | |
| LY4NJ | HH64PL, HH64P-L | With LED indicator | Visiting... |
▇ LY4NJ electromagnetic relay model number legend
LY4NJ
Parent Model Number
▇ General
| Model number | LY4 series |
| Contact material | Silver alloy; Copper |
| Contact form | 4PST-NO, 4PST-NC, 4PDT |
| Contact rating | 10A@28Vdc/240Vac |
| Rated coil power | 2.5Wac, 1.6Wdc |
| Rated coil voltage | AC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380V |
| Dielectric strength | 1,500Vac, 50/60 Hz for 1 min between coil and contacts 1,200Vac, 50/60 Hz for 1 min between opening contacts |
| Pick-up voltage | DC types: 75% max; AC types: 80% max |
| Drop-out voltage | DC types: 10% min; AC types: 30% min |
| Operation voltage | 110% max |
| Contact resistance | 50mΩ max |
| Termination | 14 pins |
| Mounting | Quick connect |
| Matched socket | PTF14A, PT14 |
| Mechanical life | 1x107 operations min |
| Electrical life | 1x105 operations min |
| Insulation resistance | 100MΩ min. at 500 VDC |
| Operating temperature | -30 to 55 ℃ (-22 to 131 ℉) |
| Operating humidity | 35 to 85% RH, no condensation |
| External dimensions | 41x27.3x35.2 mm |
| Alias name | LY4 series power relay, electric relay, electrical relay |
▇ LY4NJ electromagnetic relay submodels
| No | Model Number | Socket | Coil Voltage | MOQ | Unit Price | Related Product |
| 1 | LY4NJ-N220VAC | Without socket | 220VAC | 1 | US $1.88 | Order |
| 2 | LY4NJ-N24VDC | Without socket | 24VDC | 1 | US $1.88 | Order |
| 3 | LY4NJ-S220VAC | With socket | 220VAC | 10 | US $2.22 | Order |
| 4 | LY4NJ-S24VDC | With socket | 24VDC | 10 | US $2.22 | Visiting... |
LY4 series electromagnetic relay mounting dimensions
Packaging Details
Product quantity: 10PCS
Package weight: 1.7kg
Package size: 10 x 10 x 10 cm
