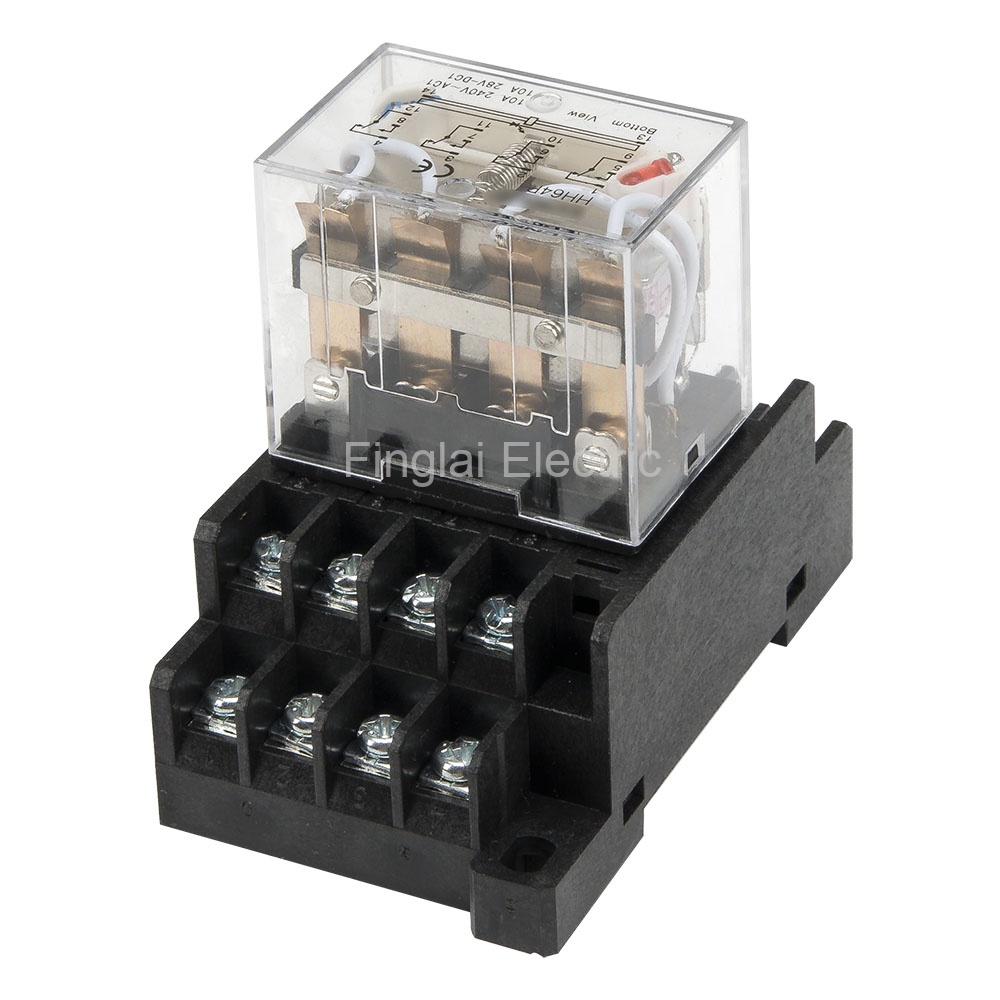

LY4NJ AC 220V LED indicator electromagnetic relay with socket base LY4 series 220VAC HH64P
Product features
Mouse over to zoom in
LY4NJ AC 220V LED indicator electromagnetic relay with socket base LY4 series 220VAC HH64P
Price: US $2.22 / piece
Model number: LY4NJ-S220VAC
Product name: Electromagnetic relay
Deliver to:
Shipping:
US $7.24via
Estimated Delivery Time: 9-15 days
Total price:US $29.44
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and type
Model number | Same model | Type | Online store:
|
LY4J | HH64P | Standard | |
LY4NJ | HH64PL, HH64P-L | With LED indicator | Visiting... |
▇ LY4NJ electromagnetic relay model number legend
▇ General
Model number |
LY4 series |
Contact material |
Silver alloy; Copper |
Contact form |
4PST-NO, 4PST-NC, 4PDT |
Contact rating |
10A@28Vdc/240Vac |
Rated coil power |
2.5Wac, 1.6Wdc |
Rated coil voltage |
AC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380V |
Dielectric strength |
1,500Vac, 50/60 Hz for 1 min between coil and contacts 1,200Vac, 50/60 Hz for 1 min between opening contacts |
Pick-up voltage |
DC types: 75% max; AC types: 80% max |
Drop-out voltage |
DC types: 10% min; AC types: 30% min |
Operation voltage |
110% max |
Contact resistance |
50mΩ max |
Termination |
14 pins |
Mounting |
Quick connect |
Matched socket |
PTF14A, PT14 |
Mechanical life |
1x107 operations min |
Electrical life |
1x105 operations min |
Insulation resistance |
100MΩ min. at 500 VDC |
Operating temperature |
-30 to 55 ℃ (-22 to 131 ℉) |
Operating humidity |
35 to 85% RH, no condensation |
External dimensions |
41x27.3x35.2 mm |
Alias name |
LY4 series power relay, electric relay, electrical relay |
▇ LY4NJ electromagnetic relay child models
No |
Model Number |
Socket |
Coil Voltage |
MOQ |
Unit Price |
Related Product |
1 |
LY4NJ-N220VAC |
Without socket |
220VAC |
1 |
US $1.88 |
Order |
2 |
LY4NJ-N24VDC |
Without socket |
24VDC |
1 |
US $2.4 |
Order |
3 |
LY4NJ-S220VAC |
With socket |
220VAC |
10 |
US $2.22 |
Visiting... |
4 |
LY4NJ-S24VDC |
With socket |
24VDC |
10 |
US $2.8 |
Order |
LY4 series electromagnetic relay mounting dimensions
Packaging Details
Product quantity: 10pcs
Package weight: 0.17kg
Package size: 10 x 10 x 10 cm
