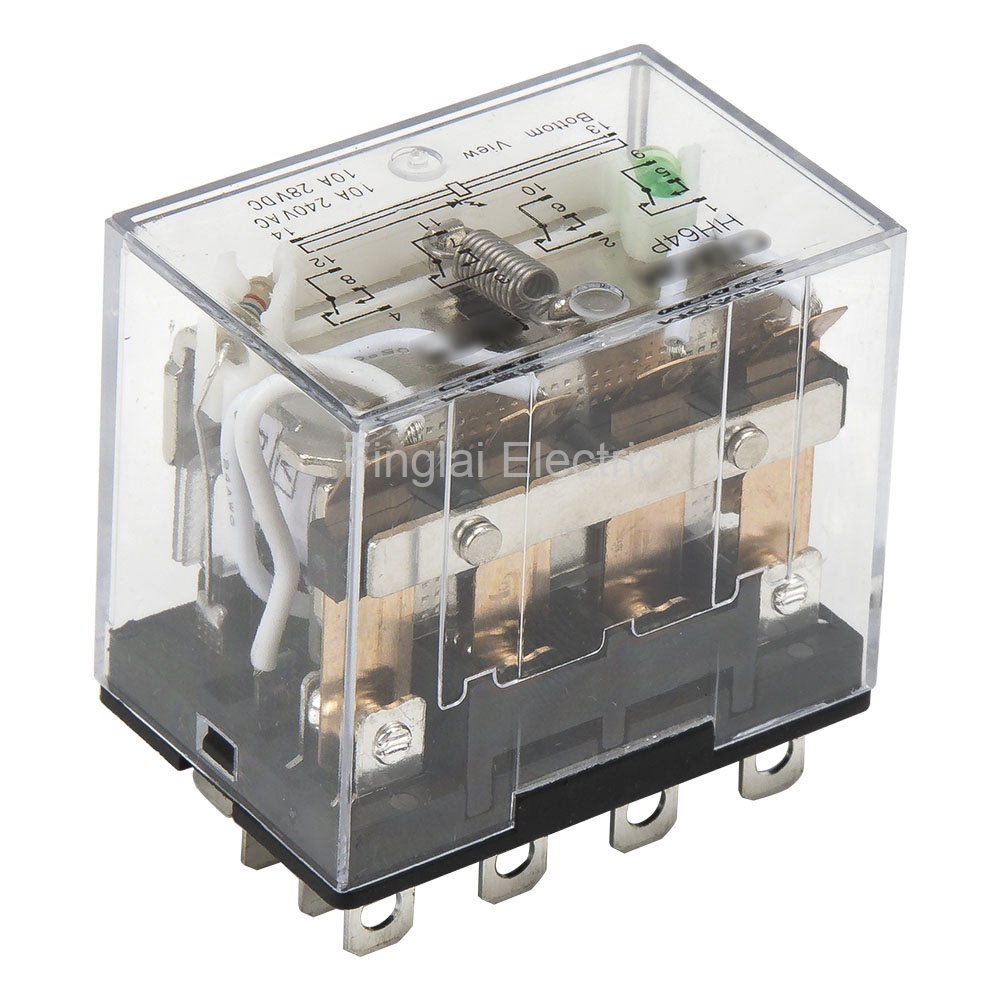

LY4NJ DC 24V LED indicator electromagnetic relay LY4 series 24VDC HH64P
3 sold
Product features
Mouse over to zoom in
LY4NJ DC 24V LED indicator electromagnetic relay LY4 series 24VDC HH64P
Price: US $1.88 / piece
Model number: LY4NJ-N24VDC
Product name: Electromagnetic relay
Deliver to:
Shipping:
US $7.24via
Estimated Delivery Time: 9-17 days
Total price:US $9.12
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and type
| Model number | Same model | Type | Online store:
|
| LY4J | HH64P | Standard | |
| LY4NJ | HH64PL, HH64P-L | With LED indicator | Visiting... |
▇ LY4NJ electromagnetic relay model number legend
▇ General
| Model number |
LY4 series |
| Contact material |
Silver alloy; Copper |
| Contact form |
4PST-NO, 4PST-NC, 4PDT |
| Contact rating |
10A@28Vdc/240Vac |
| Rated coil power |
2.5Wac, 1.6Wdc |
| Rated coil voltage |
AC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380V |
| Dielectric strength |
1,500Vac, 50/60 Hz for 1 min between coil and contacts
1,200Vac, 50/60 Hz for 1 min between opening contacts |
| Pick-up voltage |
DC types: 75% max; AC types: 80% max |
| Drop-out voltage |
DC types: 10% min; AC types: 30% min |
| Operation voltage |
110% max |
| Contact resistance |
50mΩ max |
| Termination |
14 pins |
| Mounting |
Quick connect |
| Matched socket |
PTF14A, PT14 |
| Mechanical life |
1x107 operations min |
| Electrical life |
1x105 operations min |
| Insulation resistance |
100MΩ min. at 500 VDC |
| Operating temperature |
-30 to 55 ℃ (-22 to 131 ℉) |
| Operating humidity |
35 to 85% RH, no condensation |
| External dimensions |
41x27.3x35.2 mm |
| Alias name |
LY4 series power relay, electric relay, electrical relay |
▇ LY4NJ electromagnetic relay child models
| No |
Model Number |
Socket |
Coil Voltage |
MOQ |
Unit Price |
Related Product |
| 1 |
LY4NJ-N220VAC |
Without socket |
220VAC |
1 |
US $1.88 |
Order |
| 2 |
LY4NJ-N24VDC |
Without socket |
24VDC |
1 |
US $1.88 |
Visiting... |
| 3 |
LY4NJ-S220VAC |
With socket |
220VAC |
10 |
US $2.22 |
Order |
| 4 |
LY4NJ-S24VDC |
With socket |
24VDC |
10 |
US $2.22 |
Order |
LY4 series electromagnetic relay mounting dimensions
Packaging Details
Product quantity: 1pc
Package weight: 0.1kg
Package size: 10 x 10 x 5 cm
