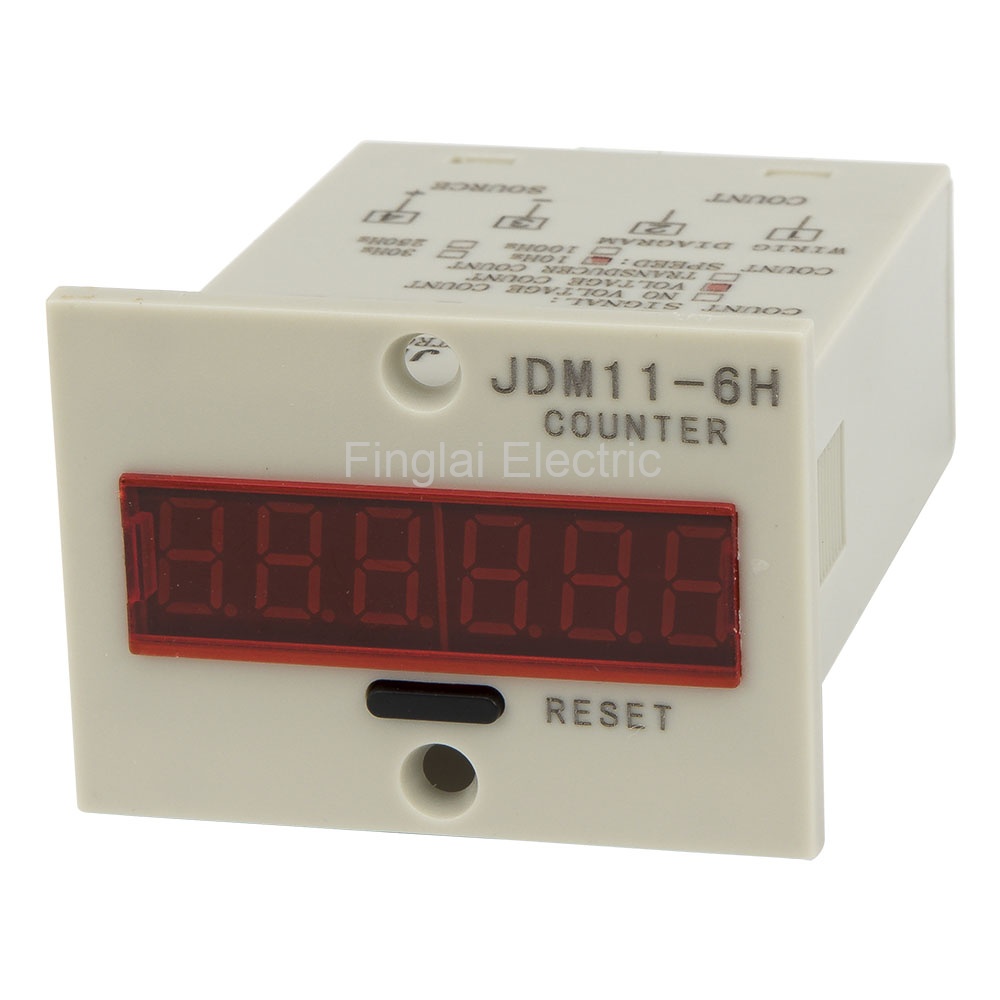

JDM11-6H AC 100-240V 4 pin 100-240V voltage level input digital electronic production counter
Product features
Mouse over to zoom in
JDM11-6H AC 100-240V 4 pin 100-240V voltage level input digital electronic production counter
Price: US $4.93 / piece
Product name: Counter
Supply voltage and input voltage:
220VACUS $4.93110VAC
US $4.93100-240VAC
US $4.9312-24VAC/DC
US $4.9324V
US $4.9312V
US $4.93
Deliver to:
Shipping:
US $6.5via
Estimated Delivery Time: 9-15 days
Total price:US $11.43
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model number | Counting range | Input signal | Remark | Online store: |
JDM11-6H-C | 1-999999 | Contact | US $4.65 - 5.14/ pieceOrder (8) | |
JDM11-6H-V | 1-999999 | Voltage (level) | The input voltage is same as supply voltage, if different, need to be customized | Visiting... |
JDM11-6H-SN | 1-999999 | 6-36VDC NPN sensor | US $4.93 - 5.43/ pieceOrder (8) | |
JDM11-6H-SP | 1-999999 | 6-36VDC PNP sensor | US $5.67/ pieceOrder (8) |
▇ JDM11-6H-V voltage input electronic counter model number legend
JDM11-6H-V
Parent Model Number
A
Supply voltage and input voltage
▇ General
Model number | JDM11 series |
Supply voltage | 12-24VAC/DC; 100-240VAC; 36, 380 VAC |
Operating mode | UP counting |
Input Signal | Contact,voltage, sensor |
Max. counting speed | 10cps |
No-power memory | 10 years min |
Power consumption | 3VA max |
Indication method | 8-segment 4-digital display |
Perforate dimensions | 5110x26 10 mm |
Counting error | ≤1 |
Reset time | ≥0.5s |
Power reset | ≥1s |
Dielectric strength | 2000Vac, 50/60Hz for 1min |
Insulation resistance | 100MΩ min. at 500 VDC |
Mounting | Panel |
Matched sensor | NPN type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn M30 4m Sn PNP type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn, M30 4m Sn |
Operating temperature | -5 to 45 ℃ |
Operating humidity | 30-85% RH max, non-condensing |
Alias name | JDM11 series counting relay, counter relay |
▇ JDM11-6H-V voltage input electronic counter child models
No | Model Number | Supply Voltage And Input Voltage | MOQ | Unit Price | Related Product |
1 | JDM11-6H-V220VAC | 220VAC | 1 | US $4.93 | Order |
2 | JDM11-6H-V110VAC | 110VAC | 1 | US $4.93 | Order |
3 | JDM11-6H-VA | 100-240VAC | 1 | US $4.93 | Visiting... |
4 | JDM11-6H-VD | 12-24VAC/DC | 1 | US $4.93 | Order |
5 | JDM11-6H-V24V | 24V | 1 | US $4.93 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 0.13kg
Package size: 5 x 5 x 5 cm
