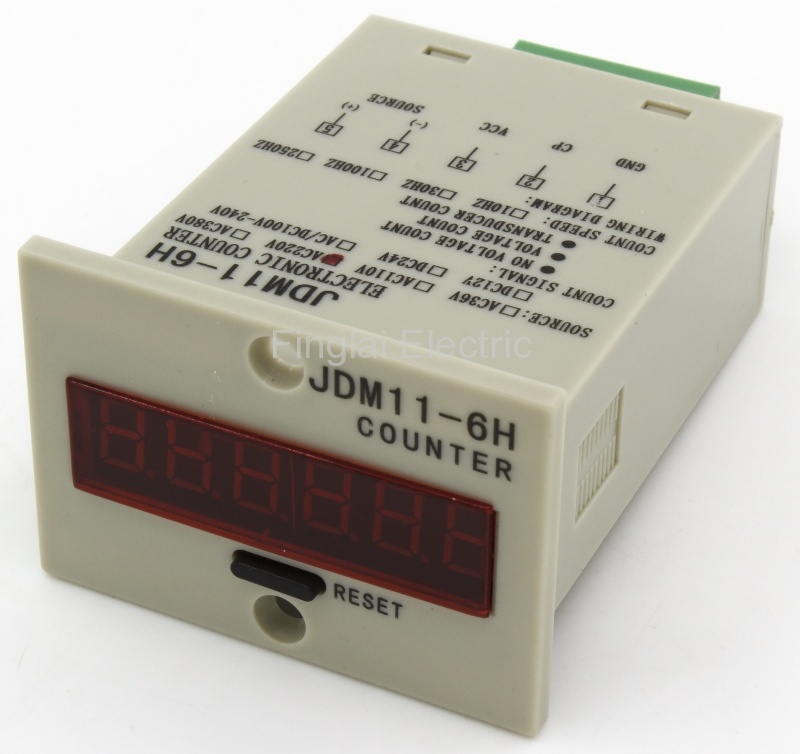

JDM11-6H 4 pin 6-36VDC NPN sensor input series digital electronic production counters
Main child models
Mouse over to zoom in
Price: US $4.93 / piece
Product name: NPN sensor input electronic counter
Product description
▇ Model number and parameters
Model number | Counting range | Input signal | Remark | Online store: |
JDM11-6H-C | 1-999999 | Contact | US $4.65 - 5.14/ pieceOrder (8) | |
JDM11-6H-V | 1-999999 | Voltage (level) | The input voltage is same as supply voltage, if different, need to be customized | US $4.93/ pieceOrder (6) |
JDM11-6H-SN | 1-999999 | 6-36VDC NPN sensor | Visiting... | |
JDM11-6H-SP | 1-999999 | 6-36VDC PNP sensor | US $5.67/ pieceOrder (8) |
▇ JDM11-6H-SN NPN sensor input electronic counter model number legend
JDM11-6H-SN
Parent Model Number
▇ General
Model number | JDM11 series |
Supply voltage | 12-24VAC/DC; 100-240VAC; 36, 380 VAC |
Operating mode | UP counting |
Input Signal | Contact,voltage, sensor |
Max. counting speed | 10cps |
No-power memory | 10 years min |
Power consumption | 3VA max |
Indication method | 8-segment 4-digital display |
Perforate dimensions | 5110x26 10 mm |
Counting error | ≤1 |
Reset time | ≥0.5s |
Power reset | ≥1s |
Dielectric strength | 2000Vac, 50/60Hz for 1min |
Insulation resistance | 100MΩ min. at 500 VDC |
Mounting | Panel |
Matched sensor | NPN type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn M30 4m Sn PNP type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn, M30 4m Sn |
Operating temperature | -5 to 45 ℃ |
Operating humidity | 30-85% RH max, non-condensing |
Alias name | JDM11 series counting relay, counter relay |
▇ JDM11-6H-SN NPN sensor input electronic counter child models
No | Model Number | Supply Voltage | MOQ | Unit Price |
1 | JDM11-6H-SN220VAC | 220VAC | 1 | US $4.93 |
2 | JDM11-6H-SN110VAC | 110VAC | 1 | US $4.93 |
3 | JDM11-6H-SNA | 100-240VAC | 1 | US $4.93 |
4 | JDM11-6H-SND | 12-24VAC/DC | 1 | US $4.93 |
5 | JDM11-6H-SN24V | 24VAC/DC | 1 | US $4.93 |
6 | JDM11-6H-SN12V | 12VAC/DC | 1 | US $4.93 |
7 | JDM11-6H-SN380VAC | 380VAC | 1 | US $5.43 |
8 | JDM11-6H-SN36VAC | 36VAC | 1 | US $5.43 |
