◄ JDM11-6H 4 pin 6-36VDC NPN sensor input series digital electronic production counters

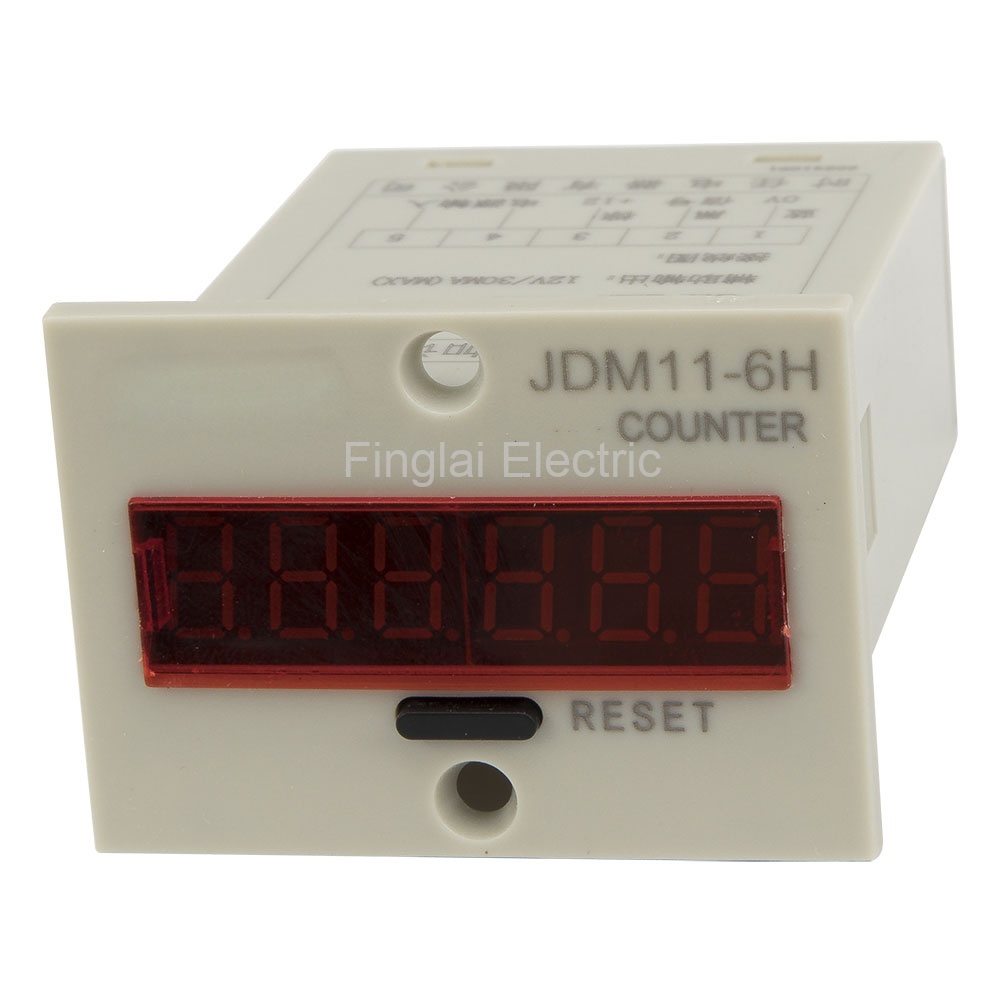

JDM11-6H 4 pin 6-36VDC PNP sensor input series digital electronic production counters

Product description
▇ Model number and parameters
Model numberCounting rangeInput signalRemarkOnline store:
JDM11-6H-C1-999999ContactUS $4.65 - 5.14/ pieceOrder (8)
JDM11-6H-V1-999999Voltage (level)The input voltage is same as supply voltageUS $4.93/ pieceOrder (6)
JDM11-6H-SN1-9999996-36VDC NPN sensorUS $4.93 - 5.43/ pieceOrder (8)
JDM11-6H-SP1-9999996-36VDC PNP sensorVisiting...
▇ JDM11-6H-SP PNP sensor input electronic counter model number legend
▇ General
Model number JDM11 series
Supply voltage 12-24VAC/DC; 100-240VAC; 36, 380 VAC
Operating mode UP counting
Input Signal Contact,voltage, sensor
Max. counting speed 10cps
No-power memory 10 years min
Power consumption 3VA max
Indication method 8-segment 4-digital display
Perforate dimensions 5110x26 10 mm
Counting error ≤1
Reset time ≥0.5s
Power reset ≥1s
Dielectric strength 2000Vac, 50/60Hz for 1min
Insulation resistance 100MΩ min. at 500 VDC
Mounting Panel
Matched sensor NPN type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn
M30 4m Sn
PNP type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn, M30 4m Sn
Operating temperature -5 to 45 ℃
Operating humidity 30-85% RH max, non-condensing
Alias name JDM11 series counting relay, counter relay
▇ JDM11-6H-SP PNP sensor input electronic counter child models
No Model Number Supply Voltage MOQ Unit Price
1 JDM11-6H-SP220VAC 220VAC 1 US $5.67
2 JDM11-6H-SP110VAC 110VAC 1 US $5.67
3 JDM11-6H-SPA 100-240VAC 1 US $5.67
4 JDM11-6H-SPD 12-24VAC/DC 1 US $5.67
5 JDM11-6H-SP24V 24VAC/DC 1 US $5.67
6 JDM11-6H-SP12V 12VAC/DC 1 US $5.67
7 JDM11-6H-SP380VAC 380VAC 1 US $5.67
8 JDM11-6H-SP36VAC 36VAC 1 US $5.67
