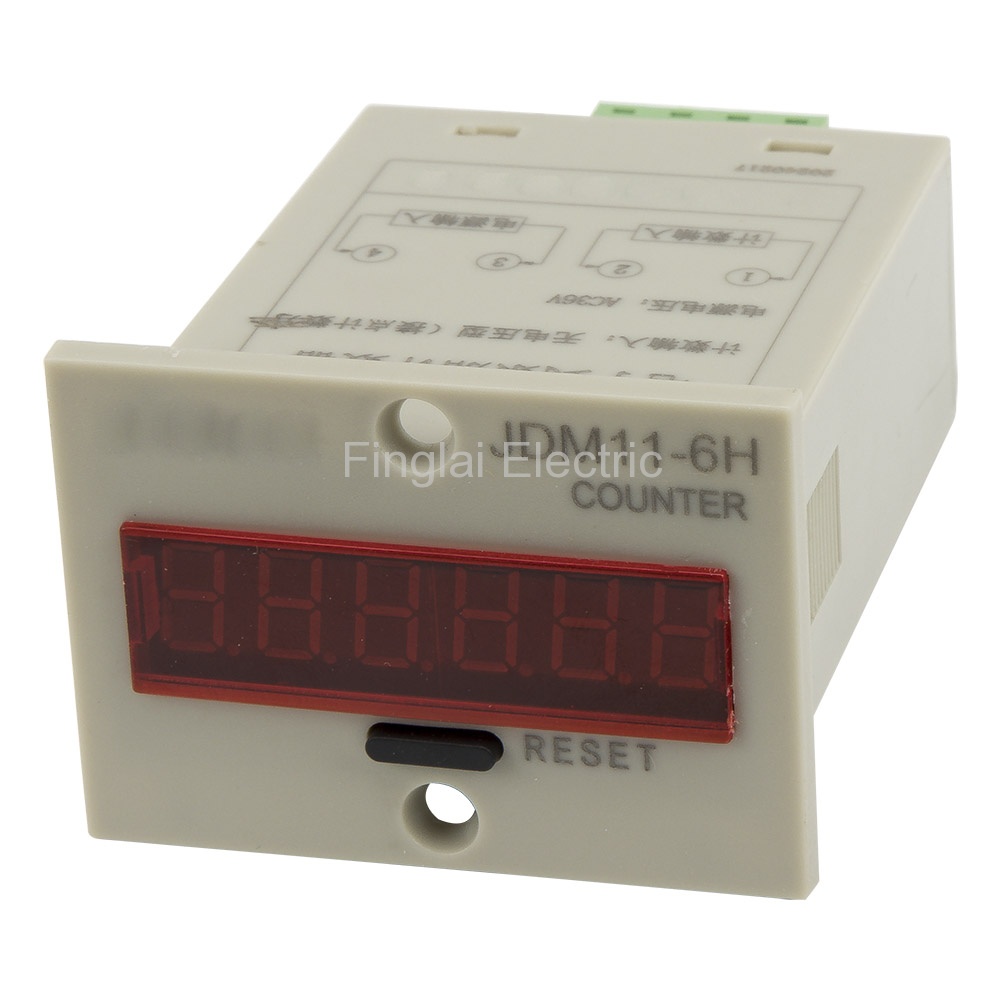

JDM11-6H AC 36V 4 pin contact signal input digital electronic production counter
Product features
Mouse over to zoom in
JDM11-6H AC 36V 4 pin contact signal input digital electronic production counter
Price: US $5.14 / piece
Model number: JDM11-6H-C36VAC
Product name: Contact signal input electronic counter
Supply voltage:
220VACUS $4.65110VAC
US $4.65100-240VAC
US $4.6512-24VAC/DC
US $4.6524VAC/DC
US $4.6512VAC/DC
US $4.65380VAC
US $5.1436VAC
US $5.14
Deliver to:
Shipping:
US $7.66via
Estimated Delivery Time: 9-17 days
DDP service: All applicable import duties and taxes are included in total price.
Total price:US $12.8
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number and parameters
| Model number | Counting range | Input signal | Remark | Online store: |
| JDM11-6H-C | 1-999999 | Contact | Visiting... | |
| JDM11-6H-V | 1-999999 | Voltage (level) | The input voltage is same as supply voltage | US $4.93/ pieceOrder (6) |
| JDM11-6H-SN | 1-999999 | 6-36VDC NPN sensor | US $4.93 - 5.43/ pieceOrder (8) | |
| JDM11-6H-SP | 1-999999 | 6-36VDC PNP sensor | US $5.67/ pieceOrder (8) |
▇ JDM11-6H-C contact signal input electronic counter model number legend
JDM11-6H-C
Parent Model Number
▇ General
| Model number | JDM11 series |
| Supply voltage | 12-24VAC/DC; 100-240VAC; 36, 380 VAC |
| Operating mode | UP counting |
| Input Signal | Contact,voltage, sensor |
| Max. counting speed | 10cps |
| No-power memory | 10 years min |
| Power consumption | 3VA max |
| Indication method | 8-segment 4-digital display |
| Perforate dimensions | 5110x26 10 mm |
| Counting error | ≤1 |
| Reset time | ≥0.5s |
| Power reset | ≥1s |
| Dielectric strength | 2000Vac, 50/60Hz for 1min |
| Insulation resistance | 100MΩ min. at 500 VDC |
| Mounting | Panel |
| Matched sensor | NPN type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn M30 4m Sn PNP type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn, M30 4m Sn |
| Operating temperature | -5 to 45 ℃ |
| Operating humidity | 30-85% RH max, non-condensing |
| Alias name | JDM11 series counting relay, counter relay |
▇ JDM11-6H-C contact signal input electronic counter submodels
Packaging Details
Product quantity: 1pc
Package weight: 0.13kg
Package size: 5 x 5 x 5 cm
