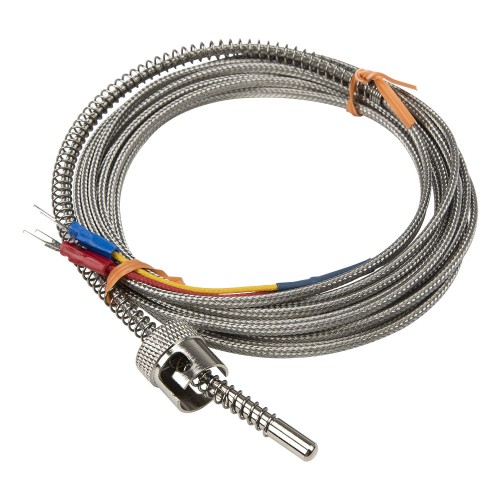

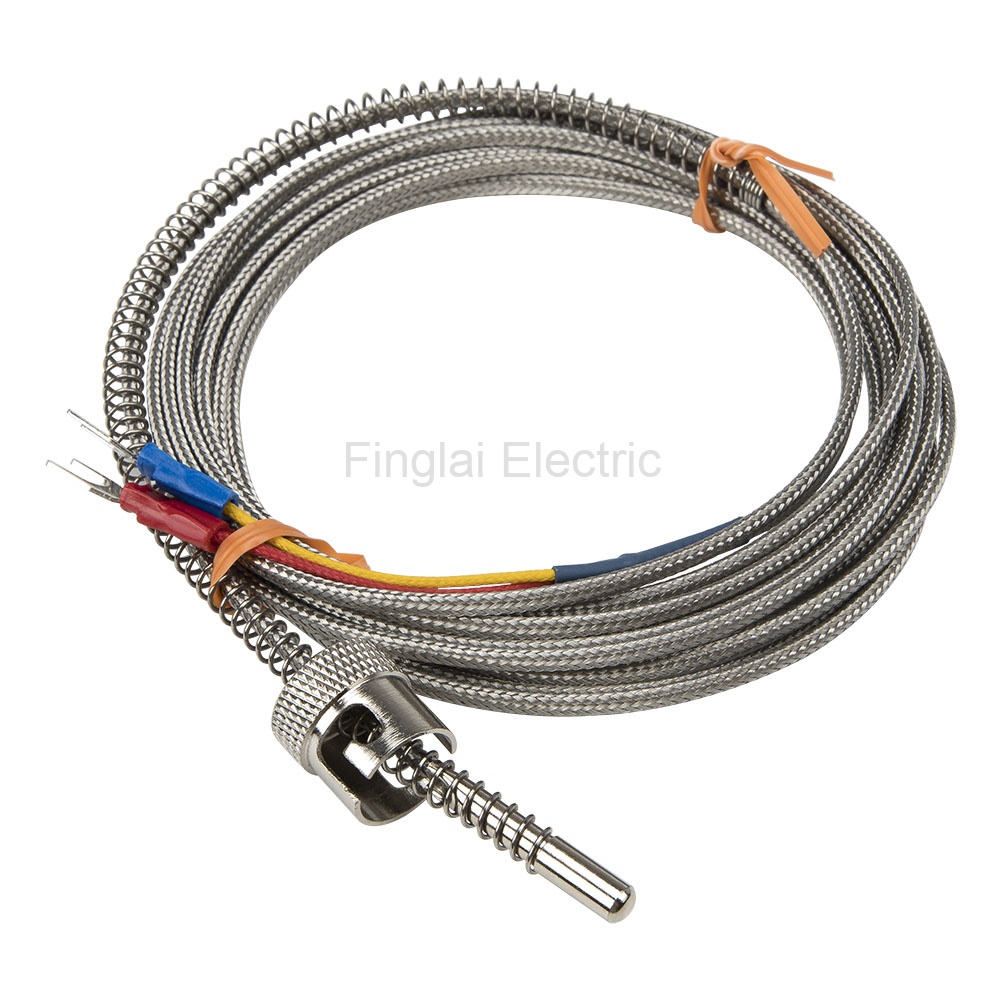

FTARS02 J type 12mm inner diameter adjustable bayonet cap 3m high density strand wire metal screening cable thermocouple temperature sensor
Product features
Mouse over to zoom in
FTARS02 J type 12mm inner diameter adjustable bayonet cap 3m high density strand wire metal screening cable thermocouple temperature sensor
Price: US $4.87 / piece
Model number: FTARS02-J-BD12MM3
Product name: Temperature sensor
Cabel material:
Usual metal screeningHigh accuracy 2*1*0.5mm metal screeningUS $3.74High accuracy 2*7*0.2mm metal screening
US $4.87
Deliver to:
Shipping:
US $8.11via
Estimated Delivery Time: 9-17 days
Total price:US $12.98
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Online store: |
| FTARS02-K | K | 0-600 ℃ | US $1.51 - 5.99/ pieceOrder (14) |
| FTARS02-E | E | 0-400 ℃ | US $1.51 - 2.96/ pieceOrder (4) |
| FTARS02-J | J | 0-400 ℃ | Visiting... |
| FTARS02-PT100 | PT100 | -50-450 ℃ | US $4.19 - 9.81/ pieceOrder (10) |
▇ FTARS02-J thermocouple model number legend
FTARS02-J
Parent Model Number
MM
Cabel material
▇ General
| Model number | FTARS02 series |
| Mounting form | Press spring |
| Accuracy | K, E, J: ±0.75%t, ±0.4%t; PT100: ±(0.6℃+1%|t|), ±(0.3℃+0.5%|t|) |
| Work type | Thermocouple: Usual metal screening: Grounded; high accuracy metal screening: Un-grounded |
| Bayonet cap material | Iron, Brass Current: Brass |
| Hole diameter | Standard is 11.5mm, can make 12, 12.5mm Current: 12mm |
| Probe material | Stainless steel, brass |
| Probe diameter | 4.5mm |
| Probe length | 10mm |
| Cable material | Usual metal screening, high accuracy metal screening; high accuracy multiple wire metal screening; high quality PTFE silver plated copper |
| Cable length | Standard is 2m, customer can select 1, 3, 5m or specify the cable length Current: 3m |
| Matched accessory | 11.5mm bayonet cap adapter, 12mm bayonet cap adapter |
| Thermal response time | Thermocouple: <5s; RTD: <12s |
| Insulating resistance | 5MΩ min at 20℃, RH<80% |
| Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ FTARS02-J thermocouple child models
| No | Model Number | Bayonet Cap Material | Hole Diameter | Cabel Material | Cable Length | MOQ | Unit Price | Related Product |
| 1 | FTARS02-J-FD11.5UM1 | Iron | 11.5mm | Usual metal screening | 1m | 1 | US $2.4 | Order |
| 2 | FTARS02-J-FD11.5UM2 | Iron | 11.5mm | Usual metal screening | 2m | 1 | US $2.73 | Order |
| 3 | FTARS02-J-FD11.5UM3 | Iron | 11.5mm | Usual metal screening | 3m | 1 | US $3.07 | Order |
| 4 | FTARS02-J-FD11.5UM5 | Iron | 11.5mm | Usual metal screening | 5m | 1 | US $3.97 | Order |
| 5 | FTARS02-J-BD12HM1 | Brass | 12mm | High accuracy 2*1*0.5mm metal screening | 1m | 1 | US $2.29 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 0.13kg
Package size: 10 x 10 x 6 cm
