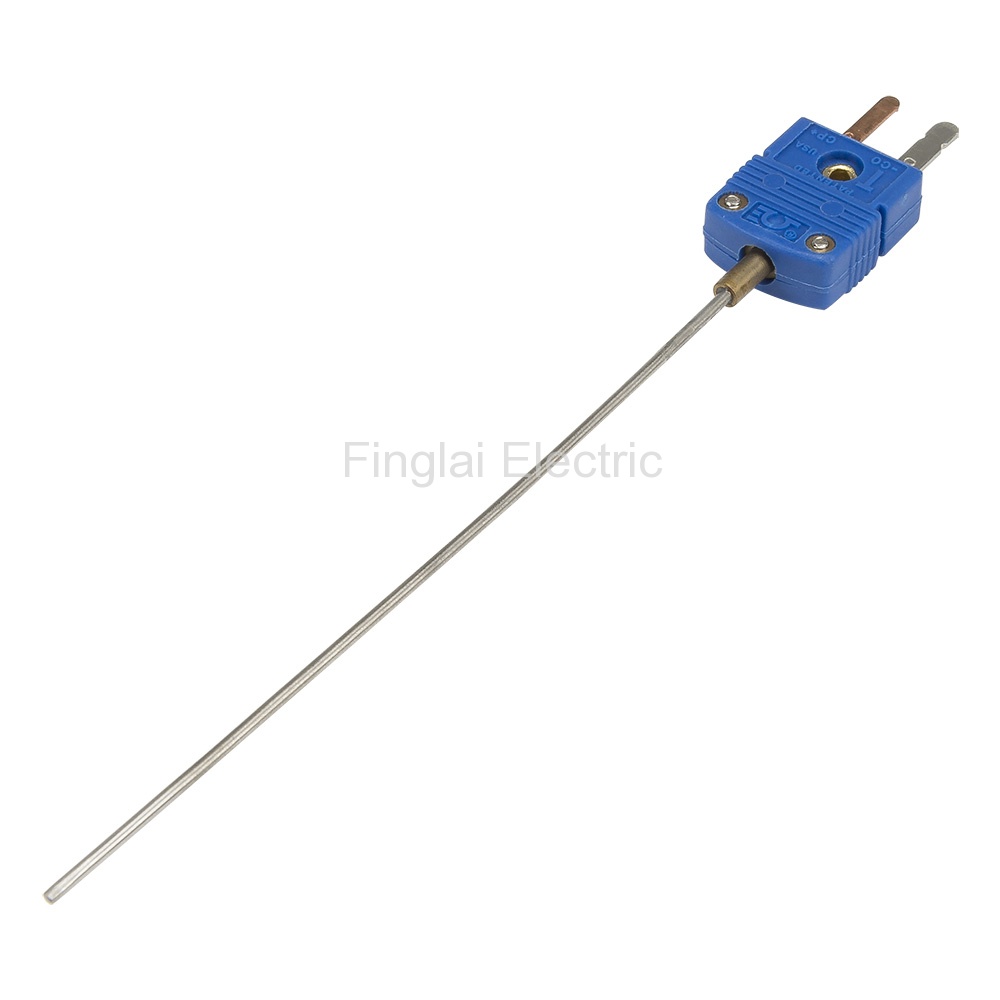

FTARP14 T type series flexible probe plug connection thermocouple temperature sensors
Main child models
Mouse over to zoom in
Price: US $7.24 / piece
Model number: FTARP14-T-321D1.5L100
Product name: Temperature sensors
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Online store: |
| FTARP14-K | K | 0-800 ℃ | US $9.43/ pieceOrder (1) |
| FTARP14-E | E | 0-400 ℃ | |
| FTARP14-J | J | 0-400 ℃ | |
| FTARP14-T | T | -200-350 ℃ | Visiting... |
| FTARP14-PT100 | PT100 | -50-500 ℃ |
▇ FTARP14-T temperature sensors model number legend
FTARP14-T
Parent Model Number
▇ General
| Model number | FTARP14 series |
| Mounting form | Flexible probe |
| Connection form | Plug |
| Accuracy | K, E, J: ±0.4%|t|; PT100 A grade: ±(0.15℃+0.2%|t|); PT100 B grade: ±(0.3℃+0.5%|t|) |
| Probe material | Standard is 321 stainless steel, can make to the following: High temperature resistant: 2520, GH3030 Anti-corrosion: 316L High temperature resistant and anti-corrosion: GH3039 |
| Probe diameter | 0.5-8mm, more bigger diameter more higher temperature resistant more response time and more operation life |
| Probe length | 10-30000mm. Temperature measurement point: thermocouple:about 5mm from tip. RTD: about 5-20mm from tip |
| Insulating resistance | 20MΩ min |
| Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ Thermal response time (Unit: s)
| Probe diameter | Ungrounded thermocouple | Grounded thermocouple | RTD |
| Ф2 | 0.5 | 0.4 | --- |
| Ф3 | 1.2 | 0.6 | 3 |
| Ф4 | 2.5 | 0.8 | 5 |
| Ф5 | 4.5 | 1.2 | 8 |
| Ф6 | 6 | 2 | 12 |
| Ф8 | 8 | 4 | 15 |
▇ FTARP14-T temperature sensors child models
| No | Model Number | Probe Material | Probe Diameter | Probe Length | MOQ | Unit Price |
| 1 | FTARP14-T-321D1.5L100 | 321 stainless steel | 1.5mm | 100mm | 1 | US $7.24 |
