FTARP12 150mm cold length 150mm 316L stainless steel insert length right angle probe K type thermocouple for molten zinc long term 0-800C
Product features
Mouse over to zoom in
FTARP12 150mm cold length 150mm 316L stainless steel insert length right angle probe K type thermocouple for molten zinc long term 0-800C
Price: US $35.41 / piece
Model number: FTARP12-K-S150M316LL150
Product name: Molten zinc K thermocouple temperature sensor
Insert material:
201 stainless steelUS $10.82316L stainless steel and Silicon nitride protective tube
US $35.41Corundum
Deliver to:
Shipping:
US $40.22via
Sorry, this item is no longer available!
Total price:US $75.63
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model number | Same model | Type | Measuring range | Online store: |
FTARP12-K | WRN-530 | K | Insert material: 201 stainless steel: 0-800 ℃ 316L stainless steel + Silicon nitride protective tube: 0-800 ℃, can be used in molten zinc Corundum: 0-1300 ℃ | Visiting... |
FTARP12-PT100 | WZP-530 | PT100 | 0-550 ℃ |
▇ FTARP12-K molten zinc K thermocouple temperature sensor model number legend
FTARP12-K
Parent Model Number
M316L
Insert material
▇ General
Model number | FTARP12 |
Mounting form | Armor |
Accuracy | K: ±0.75%t; PT100: ±(0.3℃+0.5%|t|) |
Sensor wire diameter | K: 2mm, if high temperature, can make 3.2mm max. |
Probe material | Cold material: Stainless steel Insert material: 201, 304, 2520, 316, 690 stainless steel, corundum |
Probe diameter | Φ16, can be customized. |
Probe length | 150*150mm, 250*250mm, 300*300mm, 400*400mm, 500*500mm, 750*750mm, 1000*1000mm , can be customized. |
Thermal response time | <150s |
Purpose | If the environment is with high temperature gas and harmful gas, it affect the connection box, can use this. or the place is not allowed horizontal or vertical installation |
▇ FTARP12-K molten zinc K thermocouple temperature sensor child models
No | Model Number | Cold Length (Stainless Steel) | Insert Material | Insert Length | MOQ | Unit Price | Related Product |
1 | FTARP12-K-S150M201L150 | 150mm | 201 stainless steel | 150mm | 1 | US $10.82 | Order |
2 | FTARP12-K-S150M316LL150 | 150mm | 316L stainless steel and Silicon nitride protective tube | 150mm | 1 | US $35.41 | Visiting... |
3 | FTARP12-K-S250M201L250 | 250mm | 201 stainless steel | 250mm | 1 | US $12.05 | Order |

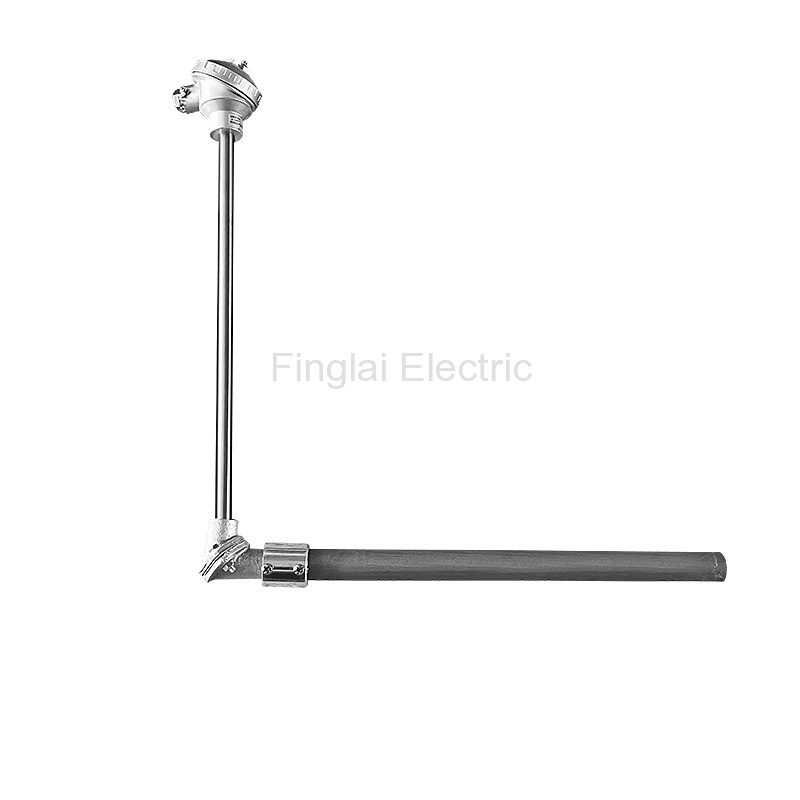

4 | FTARP12-K-S300M316LL300 | 300mm | 316L stainless steel and Silicon nitride protective tube | 300mm | 1 | US $47.71 | Order |
5 | FTARP12-K-S400CL400 | 400mm | Corundum | 400mm | 1 | US $28.04 | Order |
FTARP12 201 stainless steel insert length right angle probe K type thermocouple temperature sensor dimensions
FTARP12 316L stainless steel insert length right angle probe K type thermocouple temperature sensor dimensions
FTARP12 corundum insert length right angle probe K type thermocouple temperature sensor dimensions
Packaging Details
Product quantity: 1pc
Package weight: 2kg
Package size: 40 x 20 x 20 cm
